Intelix DIGI-P122 - Manual (Page 14)

DIGI-P122 / DIGI-P123 Installation Guide
Access the Web Browser with Defined IP Address
1. Remove the crossover cable between the computer and the DIGI-P122/123.
2. Restore the computer to the previous network settings.
3. Connect the computer and the DIGI-P122/123 to the network.
4. Using Internet Explorer, enter the IP address for the matrix to access the browser
interface.

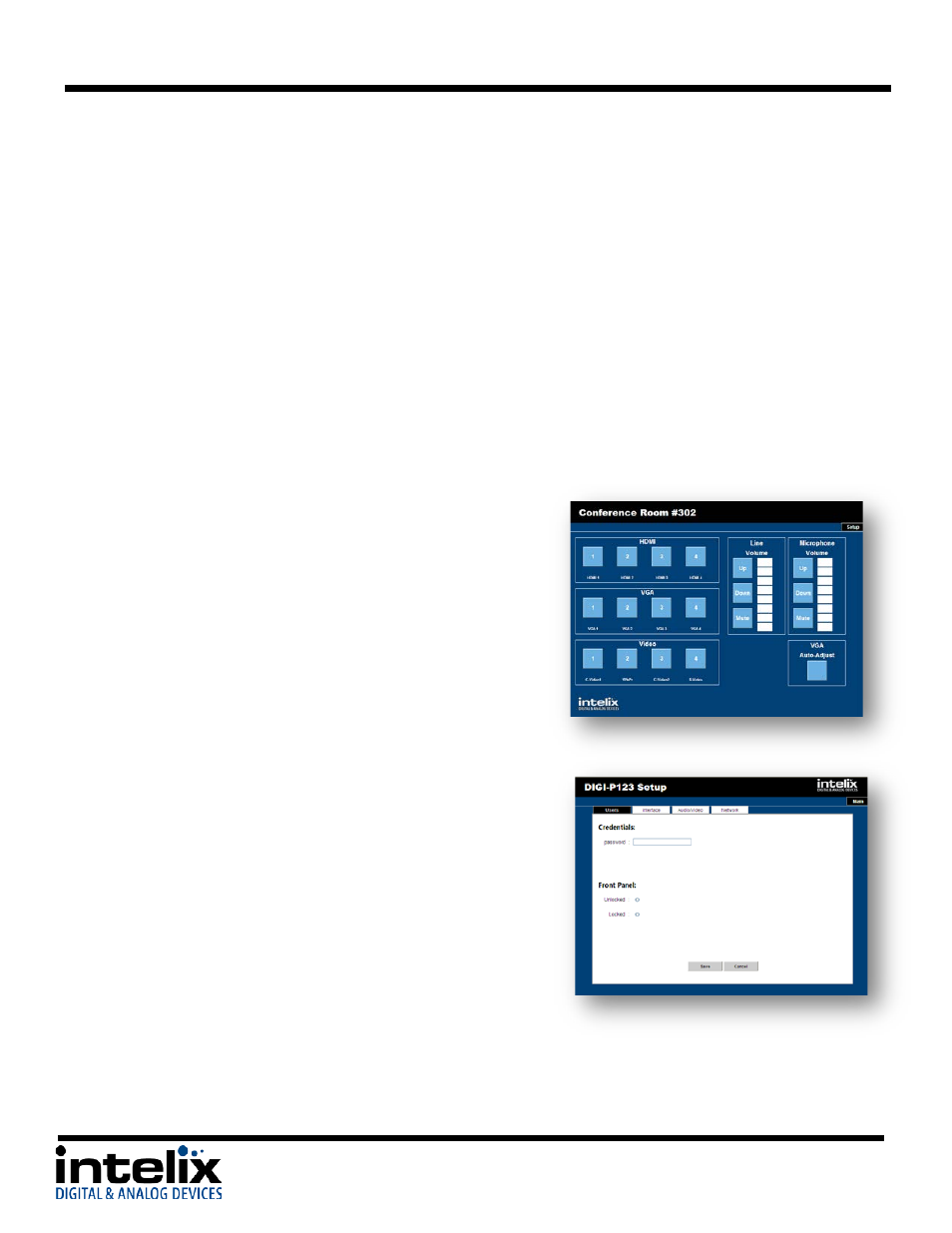

Additional Options in Web Browser
1. Operation Page:
a. AV switching: You may select an input
channel by pressing the buttons on the
left side of the page.
b. Volume and Mute Control: You may
change the volume and mute status of
the MIC and LINE audio. The level is
indicated in the indicator bars.
c. VGA Auto-Adjust – When a VGA input is
selected, you can press this button, and
the scaler will re-adjust the image.
2. Users tab:
a. Credentials: You can change the
default password for the web browser
interface (GUI). Enter the new
password and press “Save”
b. Front Panel: You can set the front panel
of the DIGI-P122/123 to be locked or
unlocked by pressing the associated
radio button.
14
