DIGI-P122 / DIGI-P123 Installation Guide

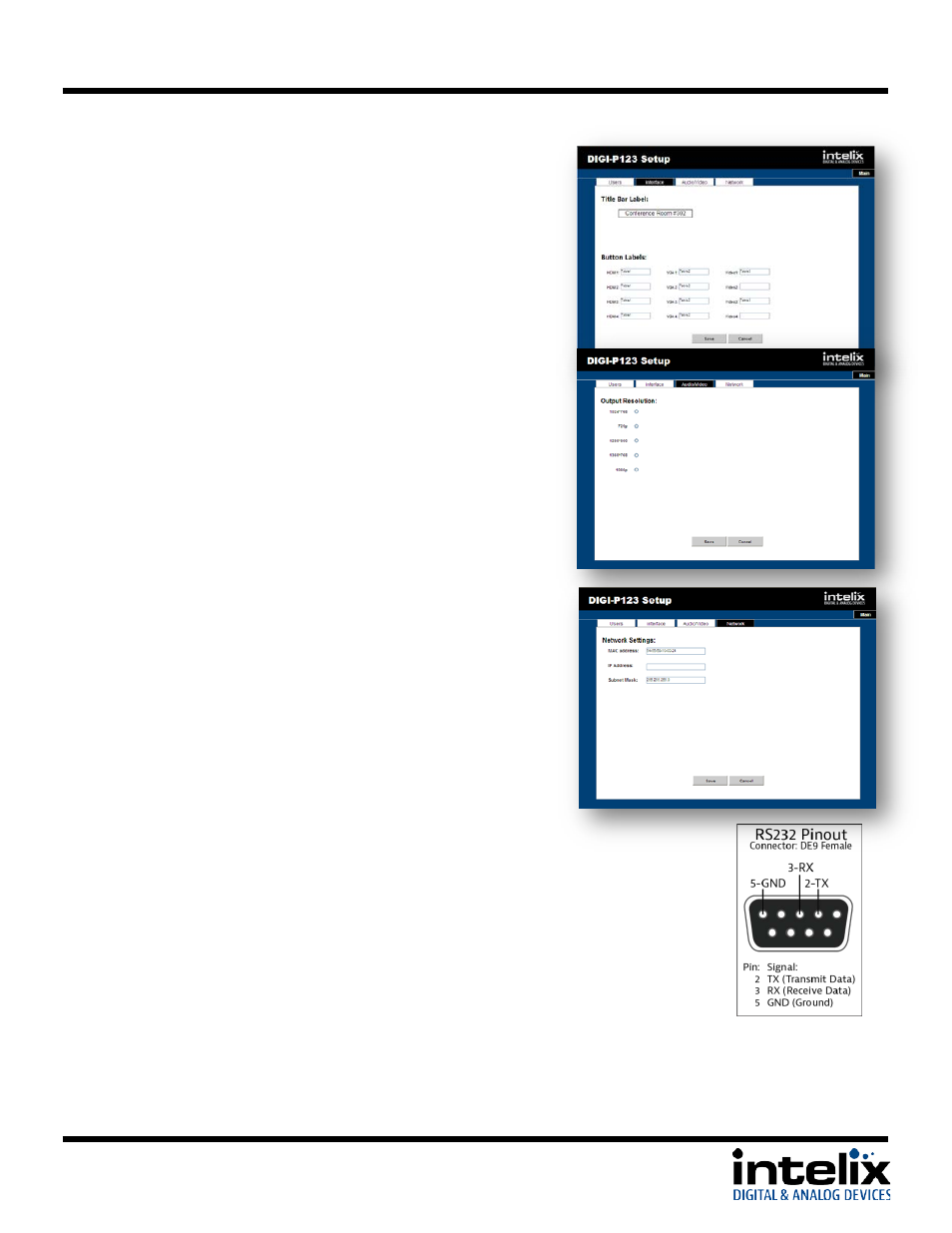

3. Interface Tab
a. Title Bar Label: You may enter a name in
this field. It will appear in the black top
bar on the Login and Operation pages.
b. Button Labels: Enter names in these
fields to identify the type of input that is
connected to the DIGI-P122/123.
Examples might be “Bluray”, “Wallplate
1”, or “AppleTV”.
4. Audio/Video Tab:
a. Output Resolution: You may change the
output resolution from this screen by
clicking on one of the radio buttons.
This performs the same action as the
front panel or remote commands.
5. Network Tab:
a. Network Settings: The unit’s MAC
address, IP address, and current subnet
mask are displayed in these fields.
Please see TCP/IP Setup and Control on
page 12 for more information. The MAC
address field is not editable.
RS232 Connection
The RS232 control port requires a standard straight-
through serial cable for operation. This diagram shows
the connections for the DIGI-P122/123 as you look at the
connector. The default settings for the RS232 port are:
- 9600 baud
- 8 Data Bits
- 1 Stop Bit
- Parity = none
15
