FLX-44 Installation Guide
8

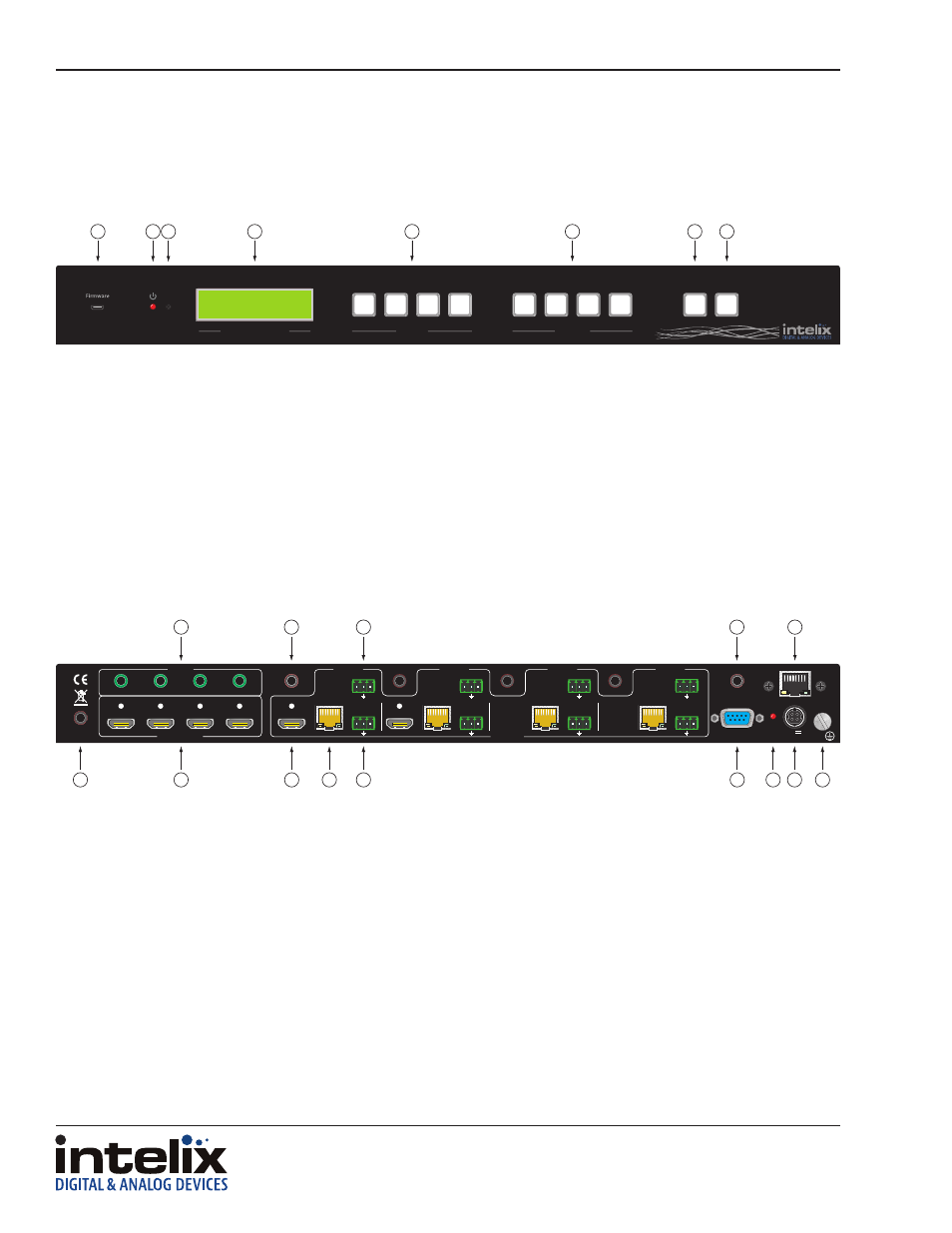

Front and Rear Panels
Front Panel
Rear Panel
1
2
3
4
TAKE
CLEAR
1
2
3
4
SYSTEM MONITOR
INPUTS
OUTPUTS
IR
FLX-44
1
2 3
4
5
6
7
8
IR OUT
HDMI INPUTS
1
2
3
4
1
2
3
4
Twisted Pair
ZONE 1
HDMI
IR IN
1
L
R
Audio
Tx
Rx
RS232
IR ALL IN
OUTPUTS
Twisted Pair
ZONE 1
HDMI
IR IN
1
L
R
Audio
Tx
Rx
RS232
ZONE 2
HDMI
IR IN
2
L
R
Audio
Tx
Rx
RS232
Twisted Pair
HDMI
IR IN
ZONE 3
IR IN
3
L
R
Audio
Tx
Rx
RS232
Twisted Pair
IR IN
ZONE 4
IR IN
4
L
R
Audio
Tx
Rx
RS232
Twisted Pair
IR IN
IR EYE
RS232
TCP/IP
48V
1.6A MAX
A
B
C
D
E
F
G
H
I
J
K
L M
N
1.
Micro USB port for firmware updating
2.
Power indicator LED
3.
IR receiver for matrix control via IR remote
4.
LCD screen
5.
Input select buttons
6.
Output select buttons
7.
Take button – confirms route changes and applies new route
8.
Clear button – cancels current routing selection before change is applied
A.
IR output ports for each HDMI source
B.
IR input ports for each HDBaseT output
C.
RS232 input for each HDBaseT output
D.
IR input for matrix when front is covered or matrix is located in a concealed location
E.
TCP/IP (Ethernet) control input; also allows control via web browser
F.
IR input for all HDBaseT outputs
G.
HDMI inputs
H.
HDMI outputs (outputs 1 and 2 only)
I.
HDBaseT outputs with PoE support
J.
Analog audio output
K.
RS232 control input
L.
Power LED
M. 48V DC power input
N.
Ground screw
