FLX-44 Installation Guide
10
Installation Instructions
Quick Start
Mount the Matrix
Shelf Mounting Instructions
Rack Mounting Instructions
1. Mount the matrix
2. Connect ground (optional)
3. Connect sources
4. Connect displays
5. Connect audio outputs (optional)
6. Connect control (optional)
7. Apply power
At least 2 inches of free air space is required on both sides of the FLX-44 for proper side ventilation. Avoid mounting
the FLX-44 near a power amplifier or any other source of significant heat.

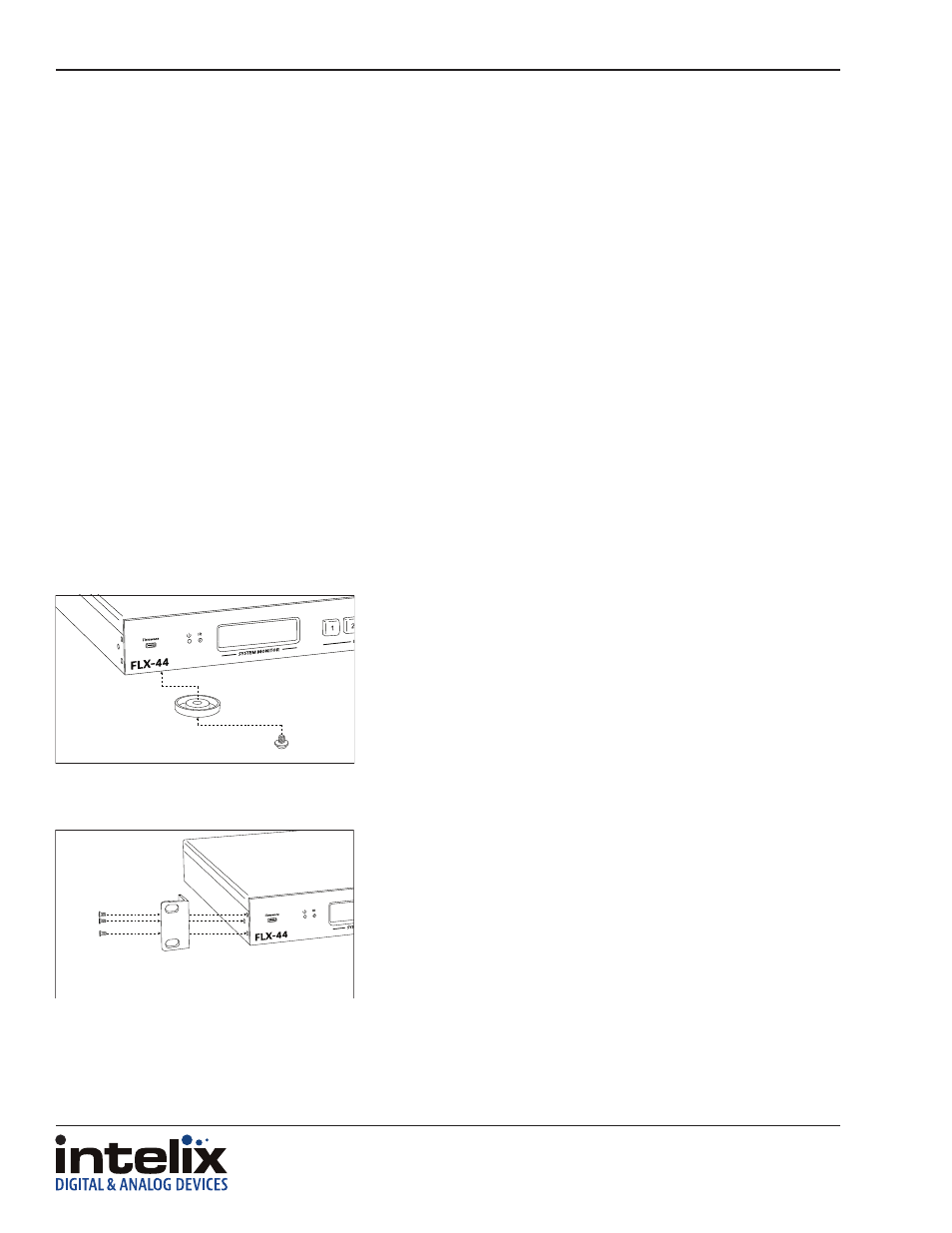

Attach the supplied shelf feet to the bottom of the FLX-44 matrix.
Attach the supplied rack ears to the sides of the FLX-44 matrix. The
matrix requires one rack units (1 RU) of space. It is recommended
that you leave an empty rack space above and below the FLX-44 for
additional cooling.
Connect Ground
A ground screw is located on the bottom right rear of the matrix to help eliminate static shock during installation
of the matrix. Connect a wire from the matrix to an earth ground.
