FLX-44 Installation Guide
12

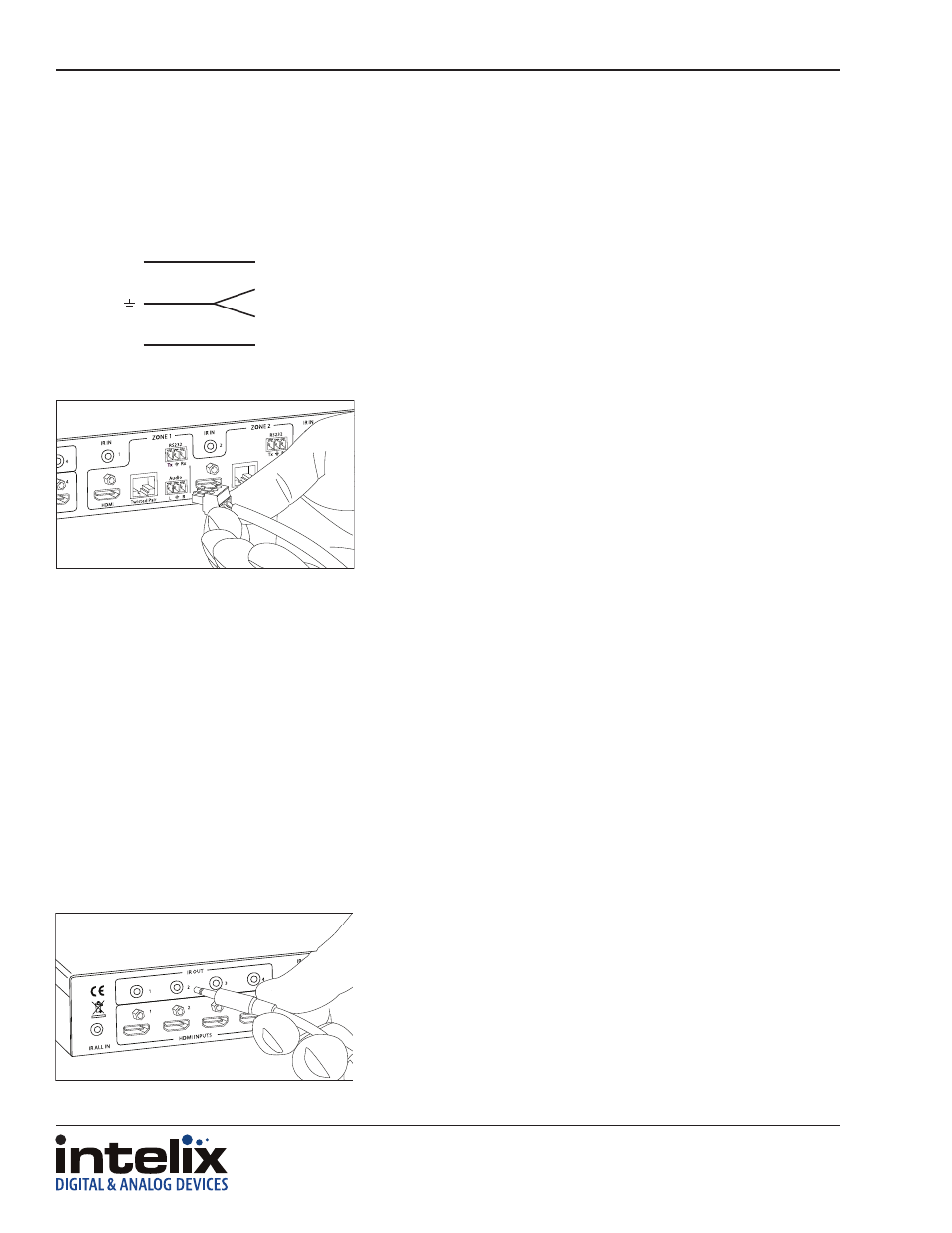

Connect Audio Outputs
Connect IR Control
If the analog audio outputs are to be used in the installation, connect
the Left, Right, and ground reference wires to the removable 3-pole
terminal block.
Insert the removable 3-pole terminal block to the appropriate
output zone terminal.
L
R
L+
L-
R-
R+
Source Device and Matrix Control via Remote IR
Attach the plastic end of the DIGIB-EMT to the IR receiver of the
source device. Insert the TS 3.5 mm plug of the DIGIB-EMT to the IR
output port (IR OUT) of the matrix for the source device to control.
The FLX-44 has an advanced bidirectional IR control protocol through the HDBaseT output port, which allows for
the control of the sources, displays, and matrix. Intelix recommends using the DIGI-HD60C-R for installations which
require IR extension.
Only use DIGIB-EMT (IR transmitter) and DIGIB-EYE (IR receiver), which are sold separately, with the FLX-44. Third
party 12V DC IR components are not compatible with the FLX-44.
An IR signal passed from the display location through the HDBaseT connection can provide control of the source
device. The IR signal from the remote display location can also control the switching of the matrix.
