FLX-44 Installation Guide
13
Remote Display Control via IR
Concealed Matrix Control via IR
Zone Control via IR
Global Control via IR

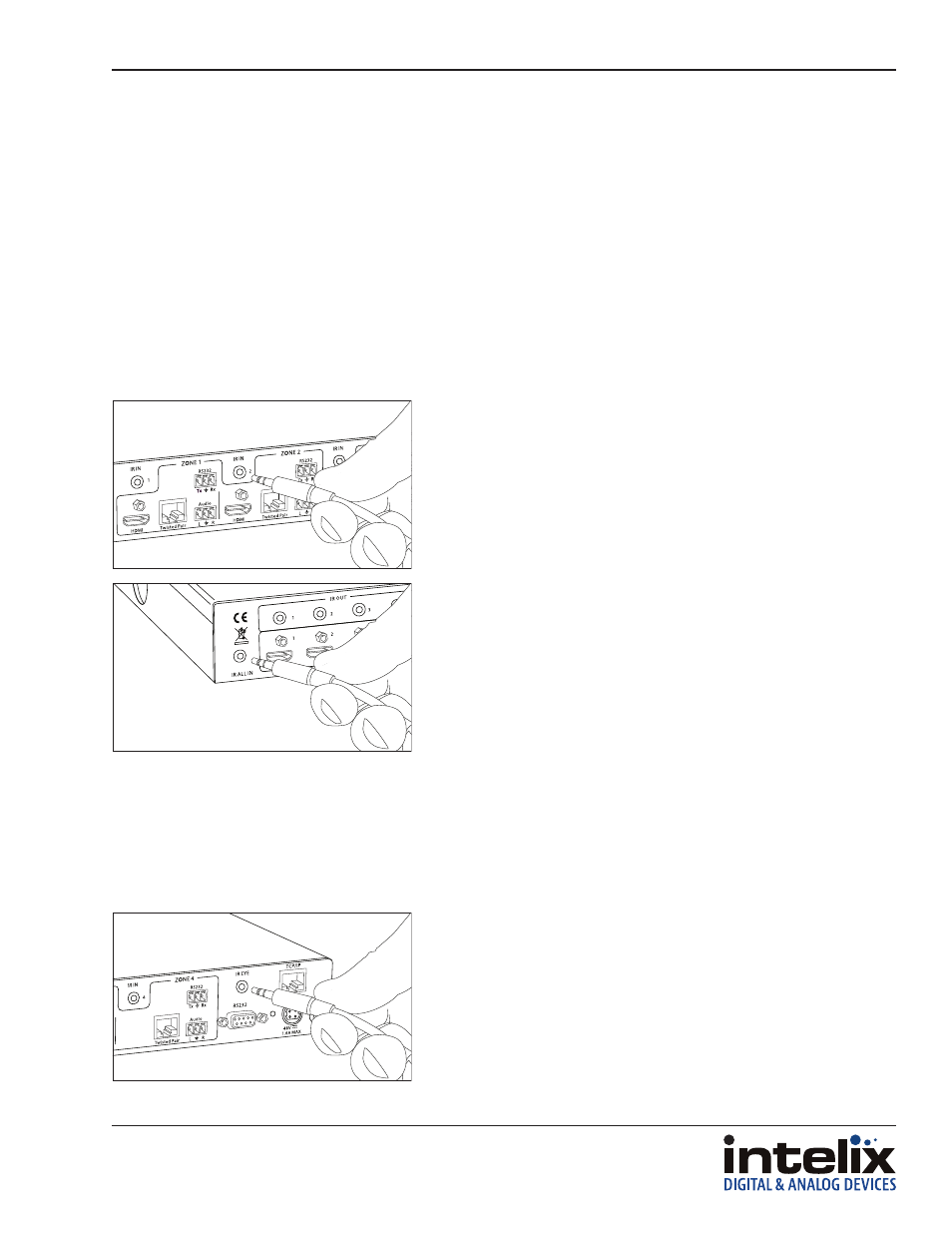

Insert the TRS 3.5 mm plug of the DIGIB-EYE to the IR input port
(IR IN) of the matrix for the output zone of the display device to
control.
Insert the TRS 3.5 mm plug of the DIGIB-EYE to the global IR input
port (IR ALL IN) of the matrix to control all remote display devices.
Insert the TRS 3.5 mm plug of the DIGIB-EYE to the matrix IR input
port (IR EYE) of the matrix.
An IR signal may be passed to a remote display location through the HDBaseT connection. There are two possible
IR input connections for controlling a remote display: IR In for an individual output zone and IR All In for global IR
signal distribution.
When the FLX-44 is installed in an equipment rack or other concealed location, access to the front panel for normal
IR control may be difficult. The IR EYE input allows the IR remote to control the matrix via a connected DIGIB-EYE.
