FLX-44 Installation Guide
11

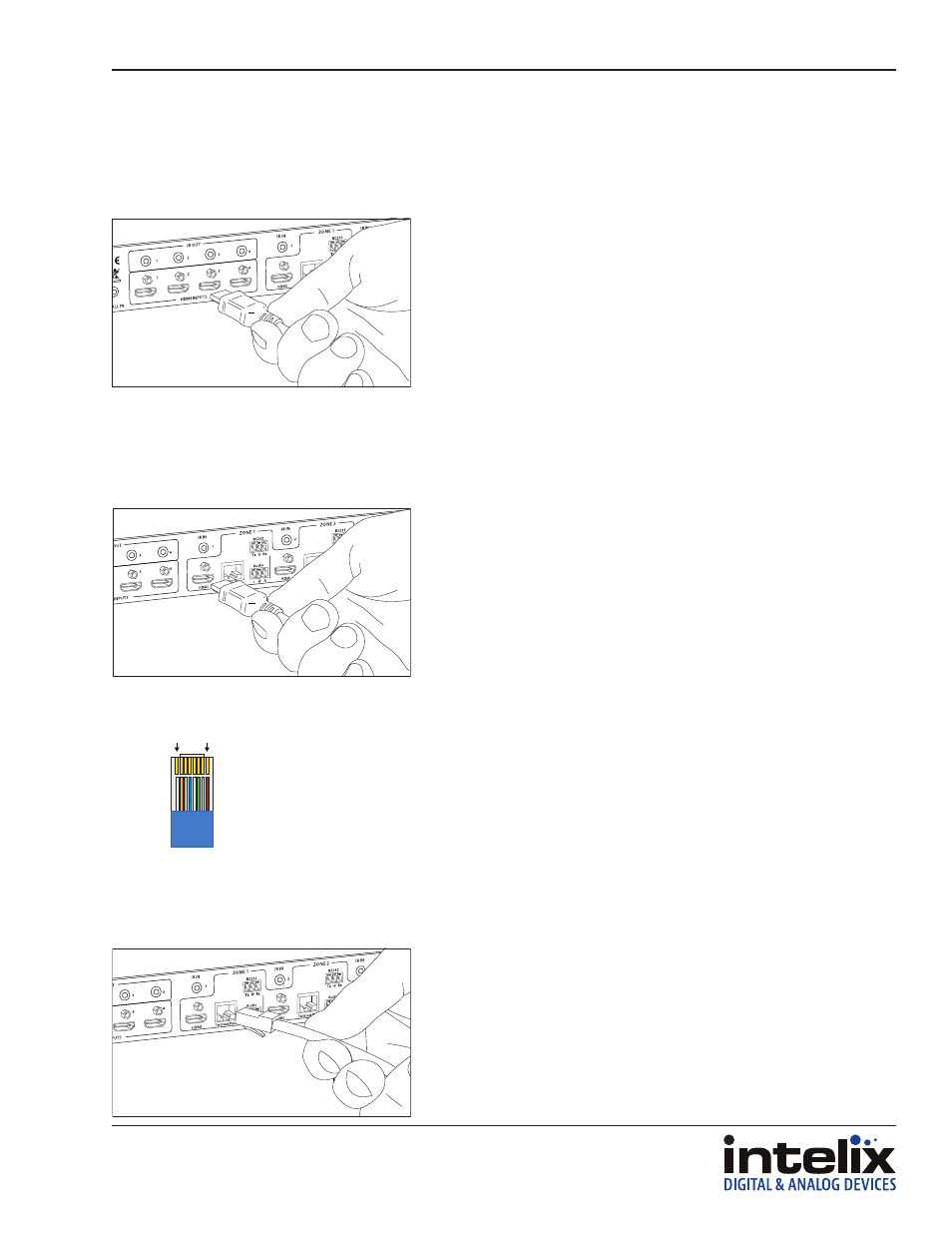

Connect Sources
Connect Displays
HDMI Outputs
HDBaseT Outputs
Connect the source devices to HDMI inputs using HDMI cables that
are less than or equal to 5 meters in length. For source devices that
are further away, an HDMI extension device will be required to
complete the connection.
Connect the display devices to HDMI outputs using HDMI cables
that are less than or equal to 5 meters in length. For display devices
that are further away, it is highly recommended to utilize the
HDBaseT outputs.
For all HDBaseT cabling, the EIA/TIA-568B crimp pattern must be
used on Category 6 or greater cable. In areas with large amounts
of electromagnetic (EM) or radio frequency (RF) interference, a
shielded variety of Category 5e or greater cable is recommended
with shielded connectors on both ends of the selected cable.
The HDBaseT outputs provide 15 watts of Power over Ethernet,
which eliminates the need for a power supply with a compatible
HDBaseT receiver. Intelix recommends using the DIGI-HD60C-R for
installations which require remote power.
Connect the HDBaseT receiver to the display per the manufacturer’s
instructions. Connect the HDBaseT cable to the matrix and the
HDBaseT receiver.
TIA/EIA-568B
Orange/White
Orange
Green/White
Blue
Blue/White
Green
Brown/White
Brown
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
1 8
