FLX-44 Installation Guide

Crossover Cable Connection

Configure the computer to use the same network prefix as the IP address assigned to the matrix. For example,

the IP address of the matrix is 192.168.0.178. Set the computer to use a static IP address within the same

network range, such as 192.168.0.42.

Connect the network crossover cable to the computer and to the TCP/IP port on the FLX-44.

Web Browser Control

The FLX-44 includes a web portal to allow control of the matrix via a standard web browser. The IP address is the

same address that is used for TCP/IP control. See page 21 for detailed information regarding the web browser

interface, including customization.

Remote RS232 Control via TCP/IP Routing

The FLX-44 has the logic to pass RS232 commands to remote devices through the TCP/IP port. Please see page

29 for more information on how to implement this feature in an installation.

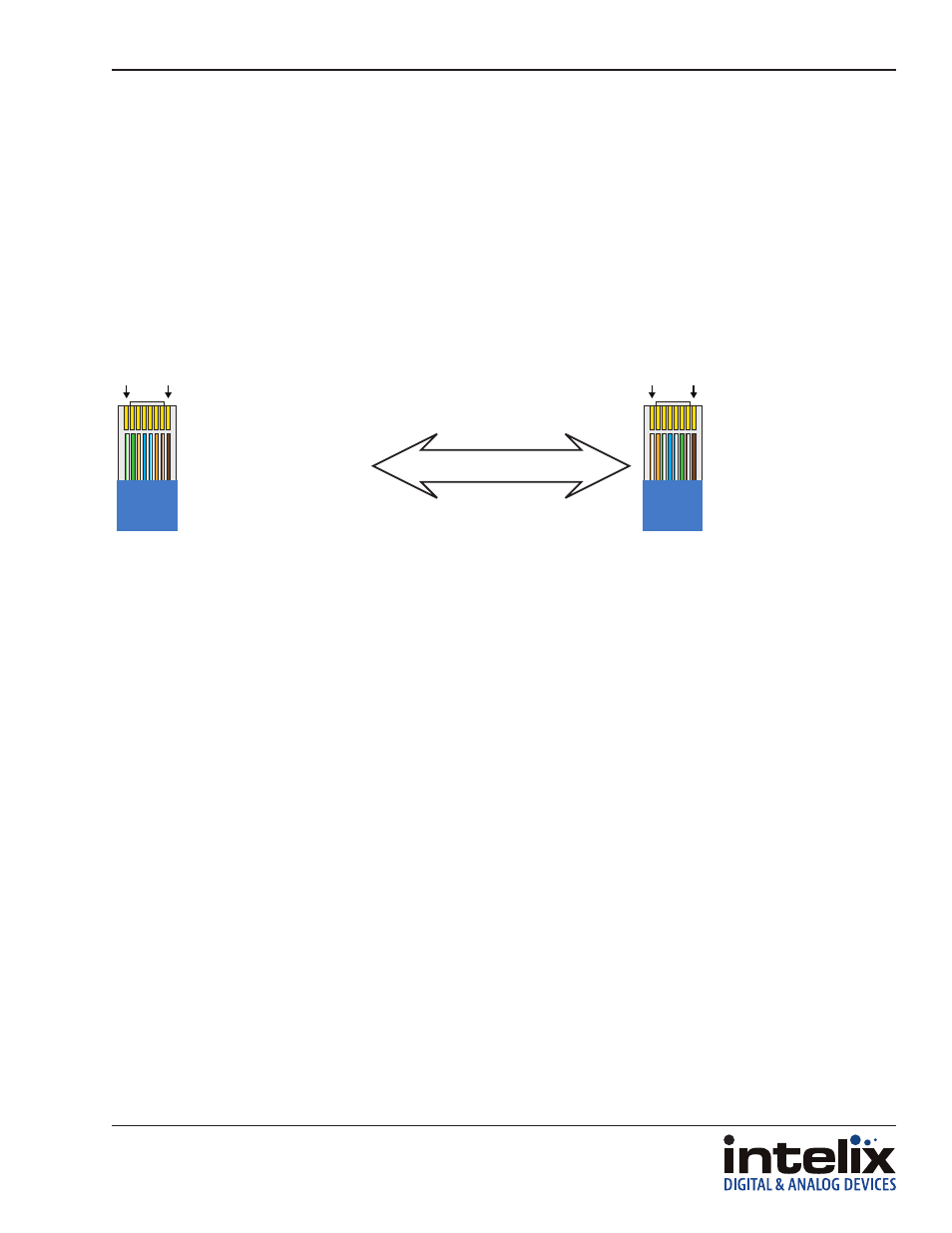

TIA/EIA-568A

Green/White

Green

Orange/White

Blue

Blue/White

Orange

Brown/White

Brown

Pin 1

Pin 2

Pin 3

Pin 4

Pin 5

Pin 6

Pin 7

Pin 8

TIA/EIA-568B
