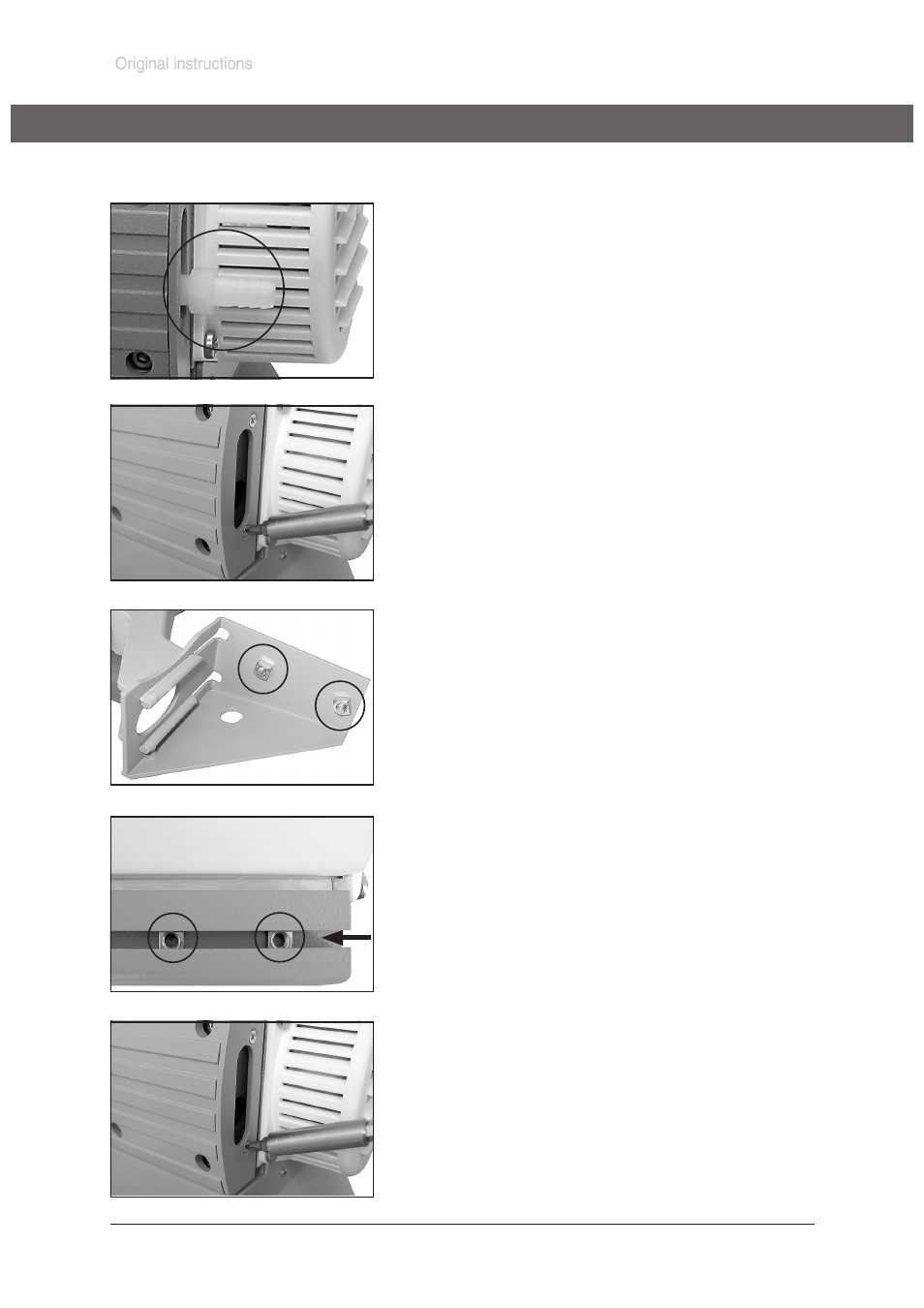

5 Assembling the condenser (accessory)
➨ Unscrew the hose nozzle at the outlet of the pump using
an open-ended wrench.
➨ Unscrew cover.
➨ Unscrew both square nuts at the mounting angle and re-
move screws.
➨ Feed the two square nuts into the groove at the upper side
of the housing cover.
➨ Assemble cover.
