Packet list for the bracket:
3pcs 8x110 screw for bracket fixing
3pcs 8x100 plastic wall-plug for bracket fixing
2pcs M6x90 bolt Head fixing
3pcs M6x25 screw Head fixing
3pcs M6 bolt head fixing
6pcs 6mm spacer bracket and head fixing
6pcs 6mm spring spacer bracket and head fixing

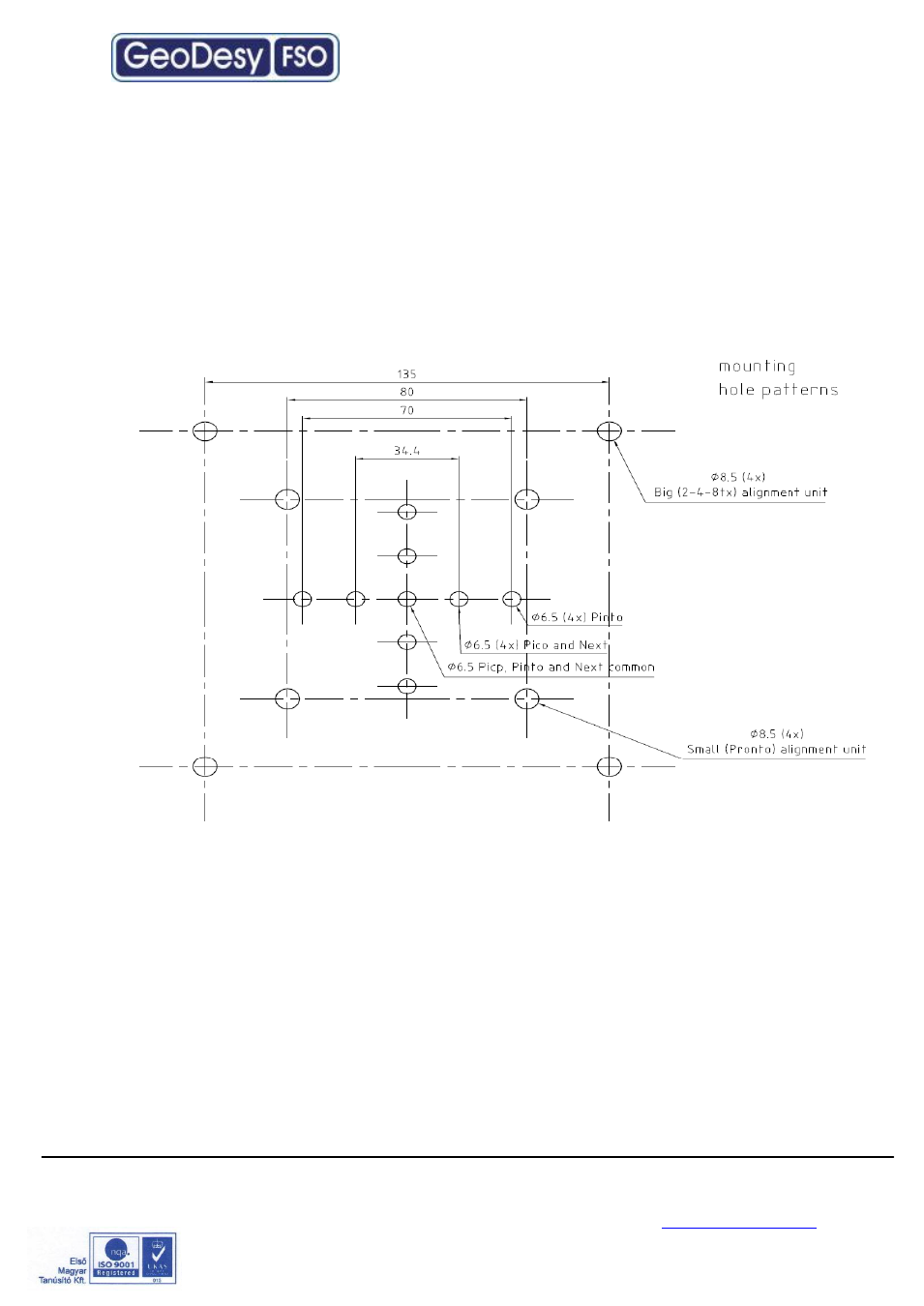

Mounting Hole Patterns
