11 Setting up the SNMP
Please check the GD view manual for details how to proceed to this point

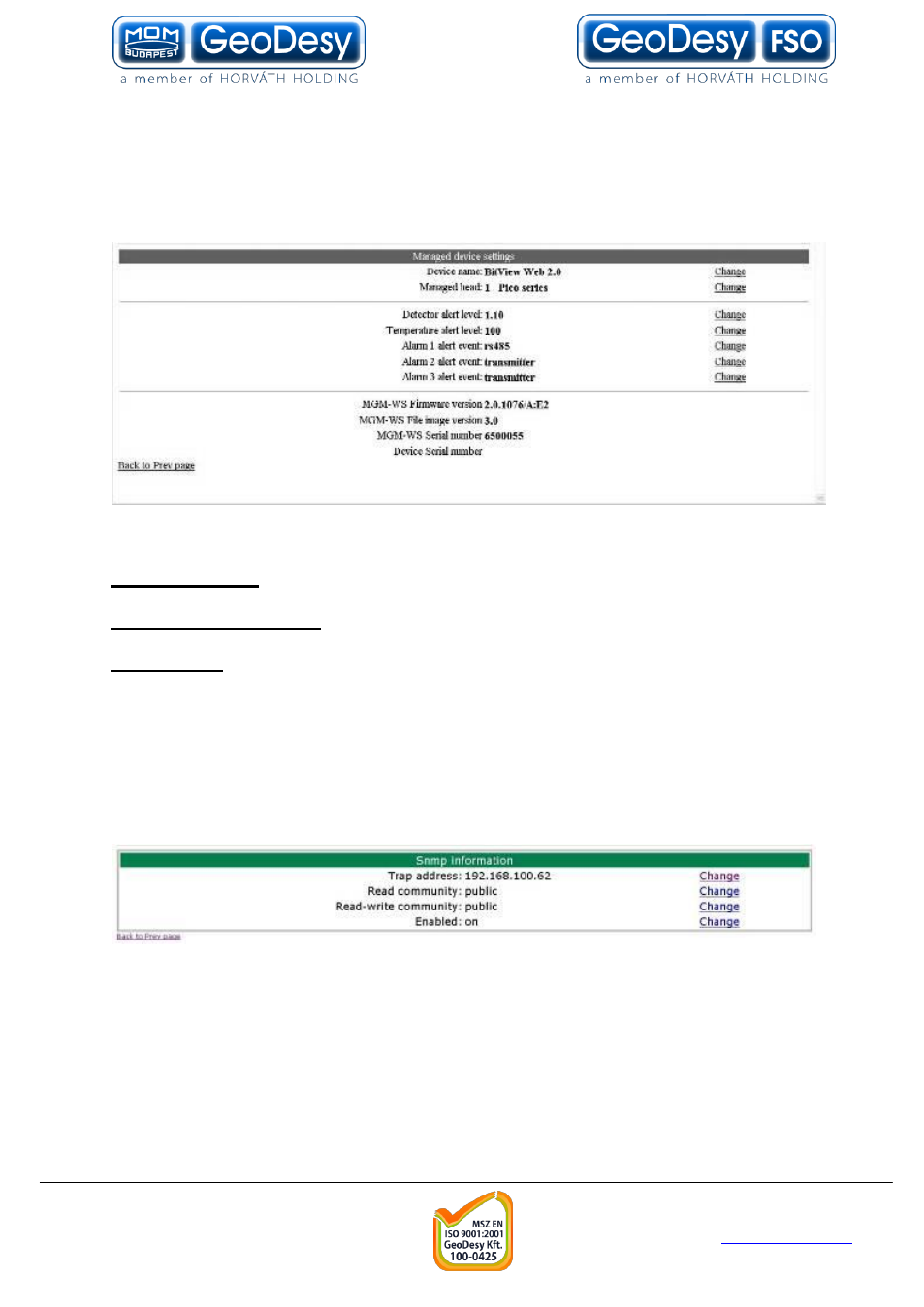

1. Figure
On Figure 1 you can see our test setting. The GD-View is sending 3 traps
LaserHeadAlarm (OID: 1.3.6.1.4.1.17857.0.1201) This trap will be sent after any
of the alarms will go on (for alarm setting please see chapter 5.4)
LaserHeadAlarmCancel (OID: 1.3.6.1.4.1.17857.0.1202) After the alarm goes off
this trap will be sent
DeviceDown (OID:
1.3.6.1.4.1.17857.0.1103) This trap is being sent when the
SNMP agent is disabled
Even if you have one laerhead attached to one GD-View, or you are on the live
network you can generate traps without, causing any problems, with the testing.
For these testing purposes please set Alarm1 to RS485(this will generate traps), and
Alarm2 Alarm3 to transmitter(this wont generate traps, so wont disturb the testing)
2. Figure
On figure 2 the settings can be seen.
Change the Trap address to the MGM console IP address which will have the
SMNPc installed
Enabled must be set to on the function will disable the SNMP agent.
After this was set the GD view is ready to send out the Trap messages, to the Trap
Addressed PC
