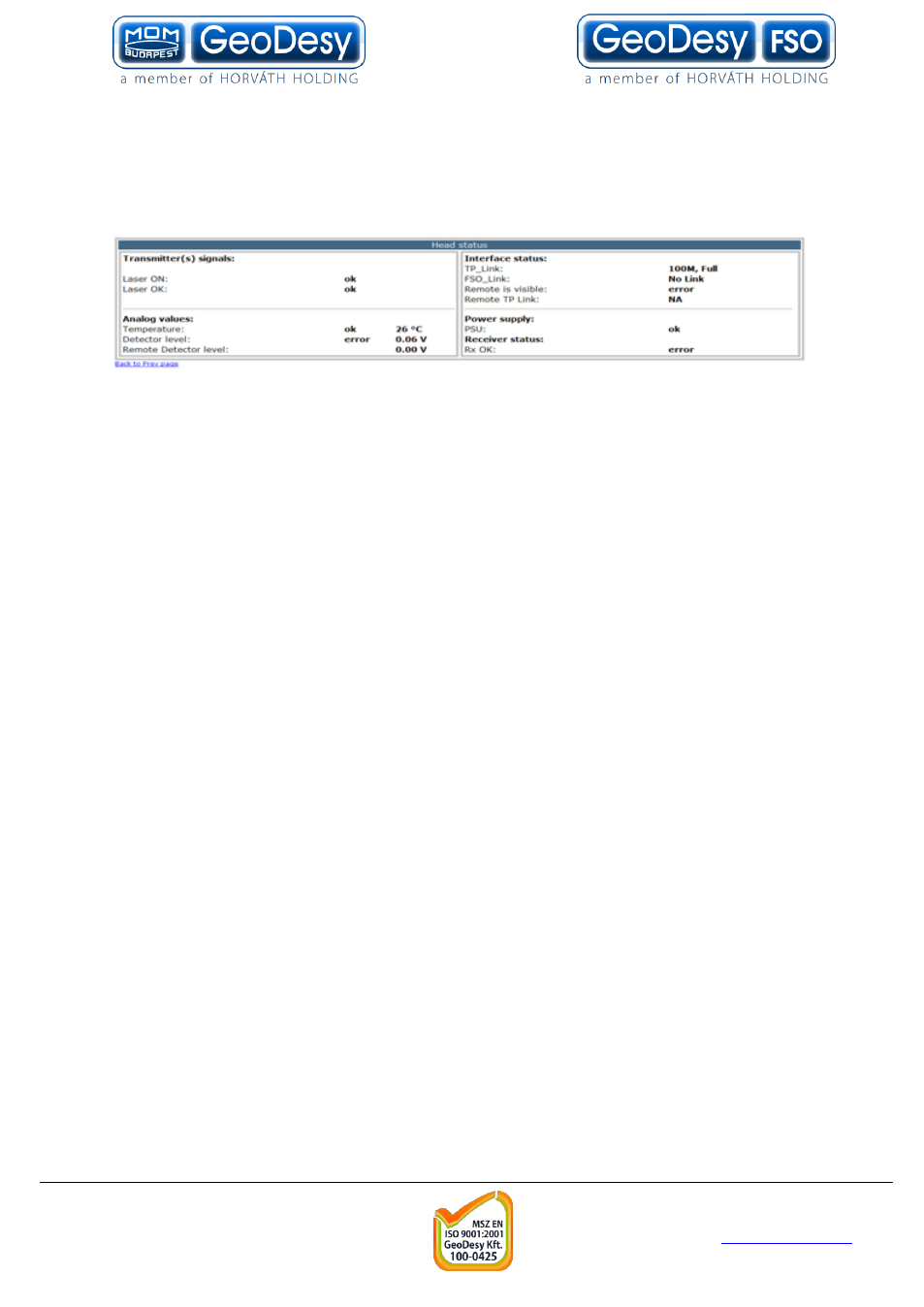

10.1.3 Status info screen
Clicking on the Device Setup you will enter the main status information screen, which
will give you good summarized information of the device, s uch as status information
of the transmitters, detector level, or temperature values.
Laser ON: Transmitter transmitts
Laser OK: Transmitter works properly, transmitts and the transmitted signal is valid.
Temperature: ambient temperature inside the device. These units were designed for
extreme conditions and should not have any problems under -60C to +80C. In fact
the unit is emitting some heat so the temperature displayed is not the air temperature
outside the head. For example the temperature can be -10C outside but in the device
it wont go below -1 or -2. The value will display error depeding on the setting was
done device setup. There is no default value for this setting, only a suggested value,
which is 60C.
Detector level: shows the local heads received level. In volts, the maximum is 7 volts
and the minimum is 0.2 volts. The value will display error depeding on the setting
was done device setup.
Remote Detector level: this value is dispalyed form reception of the remote head.
The maximum is 7 volts and the minimum is 0.2 volts.
TP_Link: displays that there is connection over the TP cable.
FSO Link: displays that there is valid signal received from the remote end.
Remote is visible: this status information is a good information about the connection
over the two laserheads if this status is OK that means that there is data transferred
over the link.
Remote TP Link: shows that whether the remote end is connected into the switch
and the TP interface is available.
PSU: The PSU of the device is sending the OK signal.
RX OK: this information is showing that the receiver is enabled. It basically means
that there is valid signal with necessary strenght is received in the local end.
