7.3

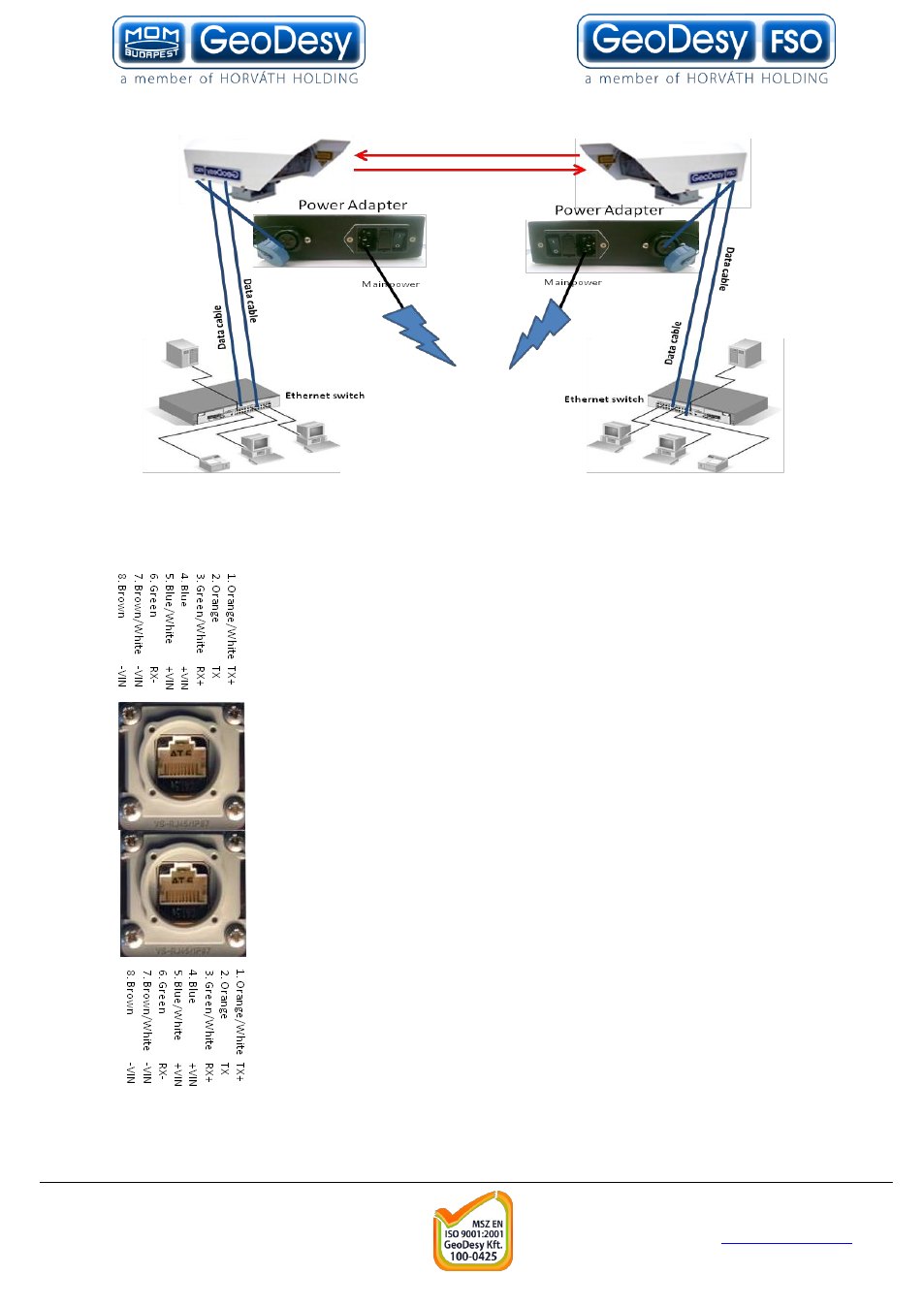

System layout

7.3.1 Connecting to your Network

The system is connected to the network via two twisted pair cable

and one wire cooper cable.

The first cable provides the management data for the GeoDesy

FSO Giga Next laser head
The second plug houses the Gigabit TP or the Fibre optic

connection point.Please see the connection below.This is the

standard IEEE802.3af connector layout.
