3.0 GENERAL DESCRIPTION
General Information :
The GMP Sierra pull type cable lasher weighs just 19 pounds (8.6 kg) and single lashes one or multiple cables from drop
wire size to a combined 1 15/16" (50 mm) outside diameter. Because the lashing wire pays out from a friction wheel en-
gaged whenever the lasher is pulled forward, no strand traction is needed.
This lasher is a piece of precision equipment. Treat it as such. Keep the lasher, operating manual and accessories in the
protective storage chest after use. This measure will prolong the useful life of your lasher.
4.0 SPECIFICATIONS
Lasher Weight:
19 lbs (8.6 kg)
Dimensions : 15" long x 10" wide x 8" high (380 mm x 254 mm x 203 mm)
Capacity : Lashes cable from drop wire size to 1 15/16" (50 mm) outside diameter on 3/16” to 1/2” (5mm - 13mm) strand.
Capabilities : Single lashes cable up to 1 15/16" (50 mm) .
It is compatible with all standard size coils of lashing wire.
.038 x 1600
.045 x 1200
.061 x 650
.065 x 450
Strand
Lock
Wire Spool
Guide Bushing
Cam Lock
Wire Guide
Tension Roller
Friction Drive
Wheel
Alignment Marks
(both sides)
Rear Gate
Roller Adjuster
Rear Gate
Roller
Rear
Strand
Roller
Front
Strand
Roller
Cable Placing
Roller
Rear Gate
Roller

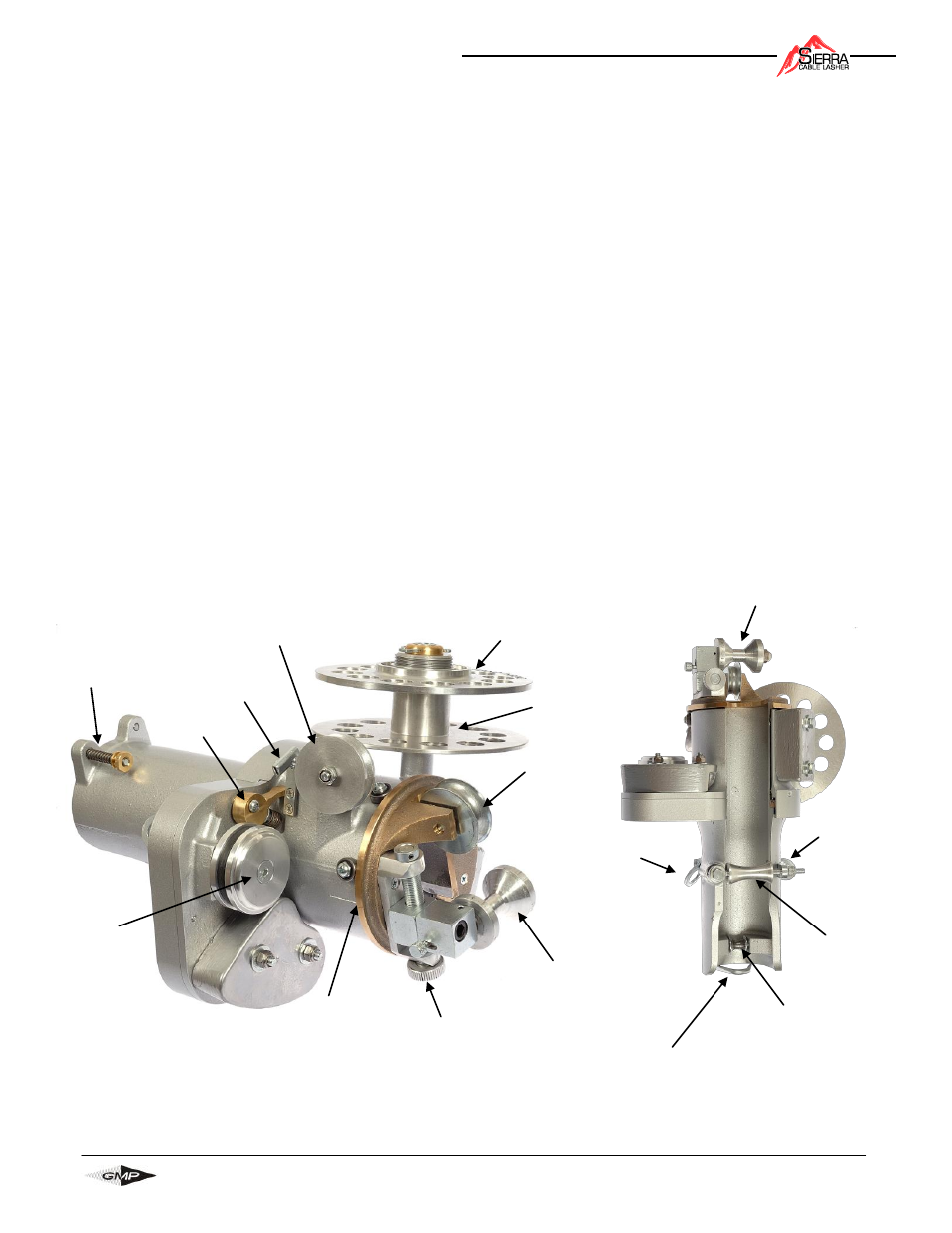

5.0 LAYOUT
Strand
Lock
Wire Spool
Flange
Towing Eye
Towing Eye
