INSTALLATION INSTRUCTIONS DOUBLE E - LOC ® COUPLINGS

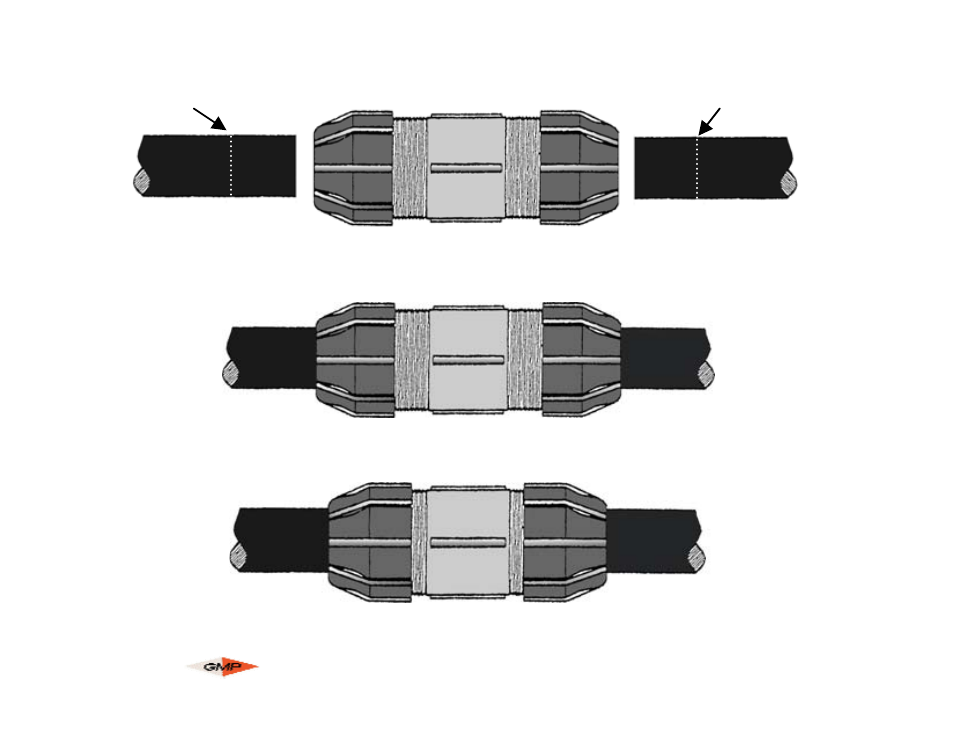

Loosen Locknuts until 1” of thread is visible on each side of the body. Mark each conduit 3 1/4” from the
end (for 1” to 1 1/4 “ sizes), 3 3/8” from the end (for 1 1/2” sizes) or 3 7/8 “ for the end (for 2” sizes)
Push conduit into each end making sure each conduit is tight against
the center stop and inserted to the marked line
Mark Conduit
Mark Conduit for insertion depth
Hand tighten each locknut
