B ladder Platform Seat Replacement
B ladder Platform Seat Replacement
A
ERIAL
T
OOLS
3111 Old Lincoln Highway, Trevose, PA 19053 USA • 215.357.5500 • 215.357.6216 (Fax) • [email protected] • www GMPtools.com
07/22/2010
QTY
Part Number
Description
1
24646
Seat
2
09758
1/4-20x1 (a)
4
16195
1/4-20x1 1/4 (b)
2
16194
1/4-20x1 1/2 (c)
8
17657
Lock Washer
8
05024
1/4x20 Sq Nut
3
Warning Labels

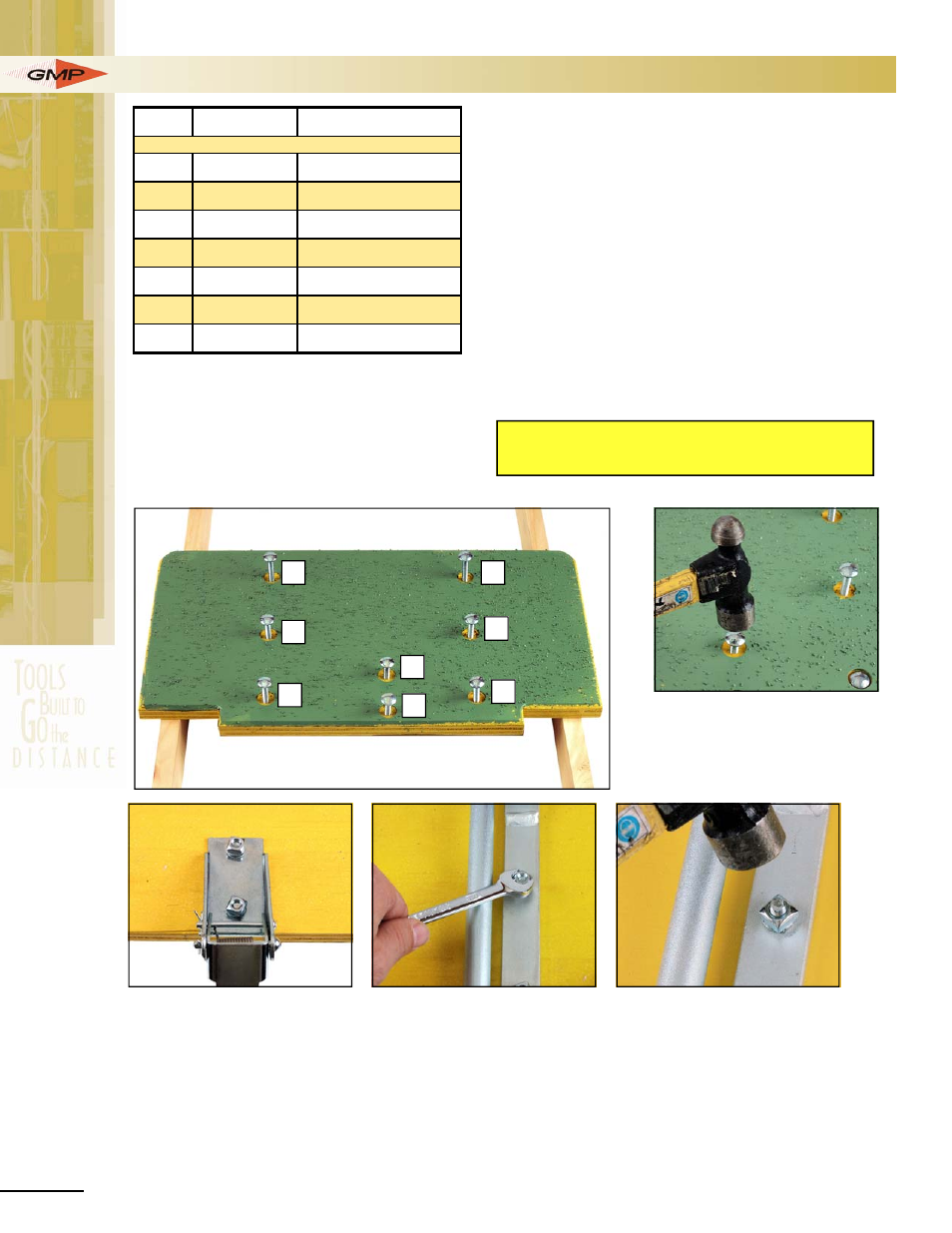

STEP 1
Remove damaged seat and related hardware.
Inspect the platform carefully and look for
unsatisfactory conditions such as:
Defective hardware such as spring latches that
do not operate properly
Excessive wear such as a damaged or broken
weld or bent pipe
If reliability or safety is questionable, be safe and
dispose of properly and purchase a new ladder
platform, GMP # 15326
STEP 3
Tap screws flush with a
hammer sinking square
under head into wood.
STEP 4
Turn seat over and place
back on wood blocks. In-
stall bracket and latch
assembly. Fasten with
lock washers, nuts and
tighten to 50 inch
pounds.
STEP 5
Install frame assembly
and fasten with lock
washers, nuts and
tighten to 50 inch
pounds.
STEP 2
Raise the seat on 2 wooden blocks,
tread side up, with the 2 holes in the
center closest to you. Start screws in
the holes as illustrated in photo.
b
b
b
b
c
c
a
a
STEP 6
Round over threads with
a ball peen hammer on all
bolts to prevent the nuts
from backing off during
use.
P/N 32165
See the manual on the Ladder Platform for
additional important information
