Lower Dash Trim Panel

Hooked into Console Box

Left Trim Hook

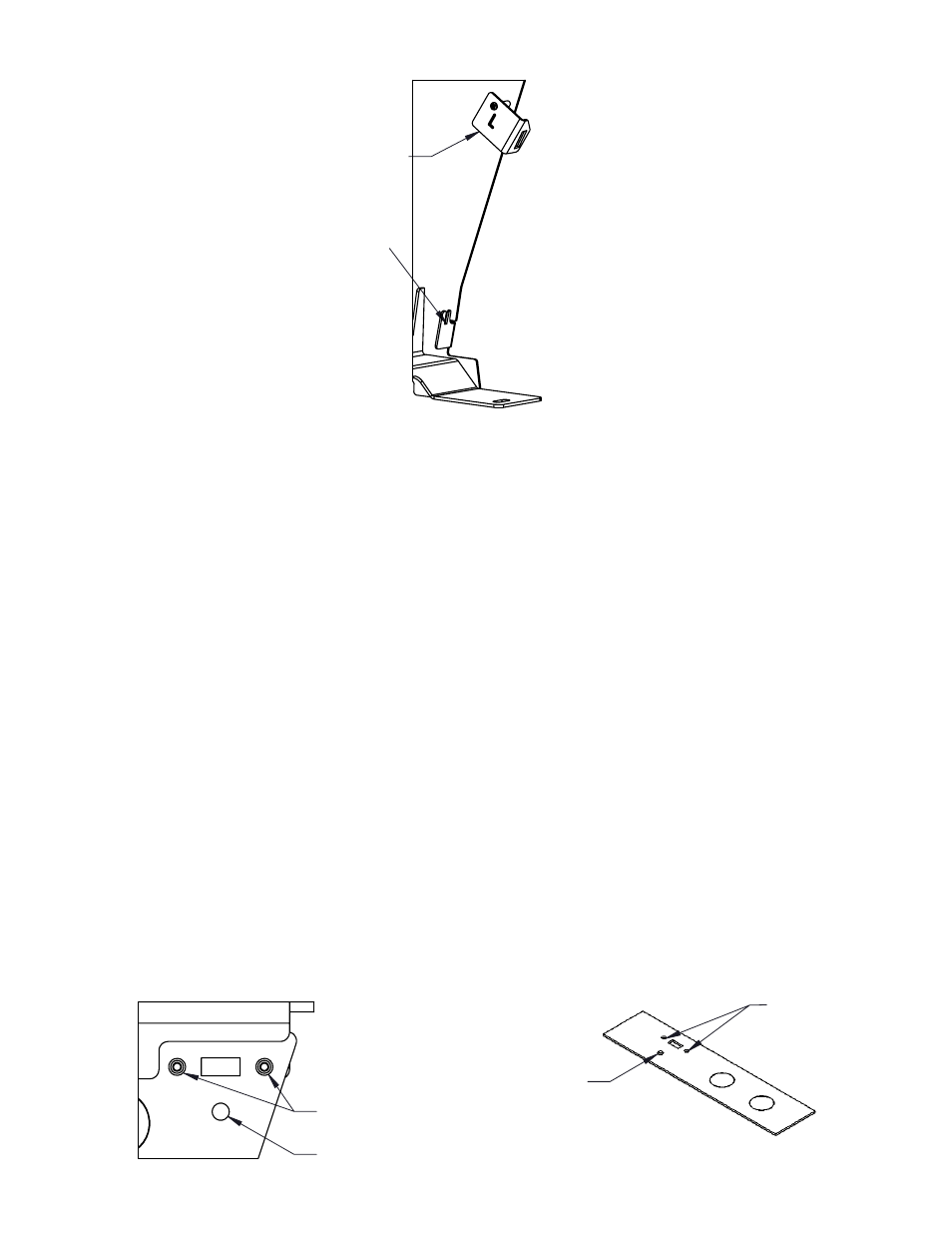

Fig 3 - Installing Lower Dash

Trim Panels

Audio Cable

USB Cable

7120-0579

7160-0431

USB Cable

Audio Cable

Sedan and Utility:

Install the armrest (7160-0409 & 7160-0411) into the tube and adjust to the desired

height/orientation then tighten the bolt under the armrest. Note: Armrest is not included with

7160-0410 or 7160-0412 but can be ordered separetly. The armrest mounting bracket can be

flipped over to lower the armrest if desired or if used with a Printer Armrest.

The cup holder (7160-0327) can be placed anywhere along the horizontal length of the box.

Note: The cup holder is not included with 7160-0410 or 7160-0412 but can be ordered separetly.

The Top Plate and Center Brace on both console boxes are designed to be removable to aid in

installation and cable routing. If either item is removed Gamber-Johnson recommends

reinstalling the screws with a drop of Blue 242 Loctite to prevent loosening.

Both boxes have knockouts for 12v accessory outlets (7160-0063). To install simply punch out

the desired knockout and install the 12v outlet. The 12v outlet will need to be hardwired into

the vehicles power system. An additional 12v accessory outlet can be purchased for the second

knockout if desired.

7120-0579 & 7160-0431 Accessories:

On the Utility vehicle, the USB and Audio jacks can be relocated to the side of the console box

using kit #7120-0579 or to a Filler Panel #7160-0431 mounted in the Console Box. To install the

Audio Cable, screw the threaded jack into the threads on the side of the box or on the Filler

Panel and then connect the plug to the vehicles audio jack. To install the USB cable, use the

screws provided with the cable to screw the bulkhead connector to the threaded inserts in the

side of the box or on the Filler Panel and then connect the plug to the vehicles USB port. It may

be desirable to reinforce the connections with electrical tape or shrink wrap in order to keep

the connections inside the console secure.
