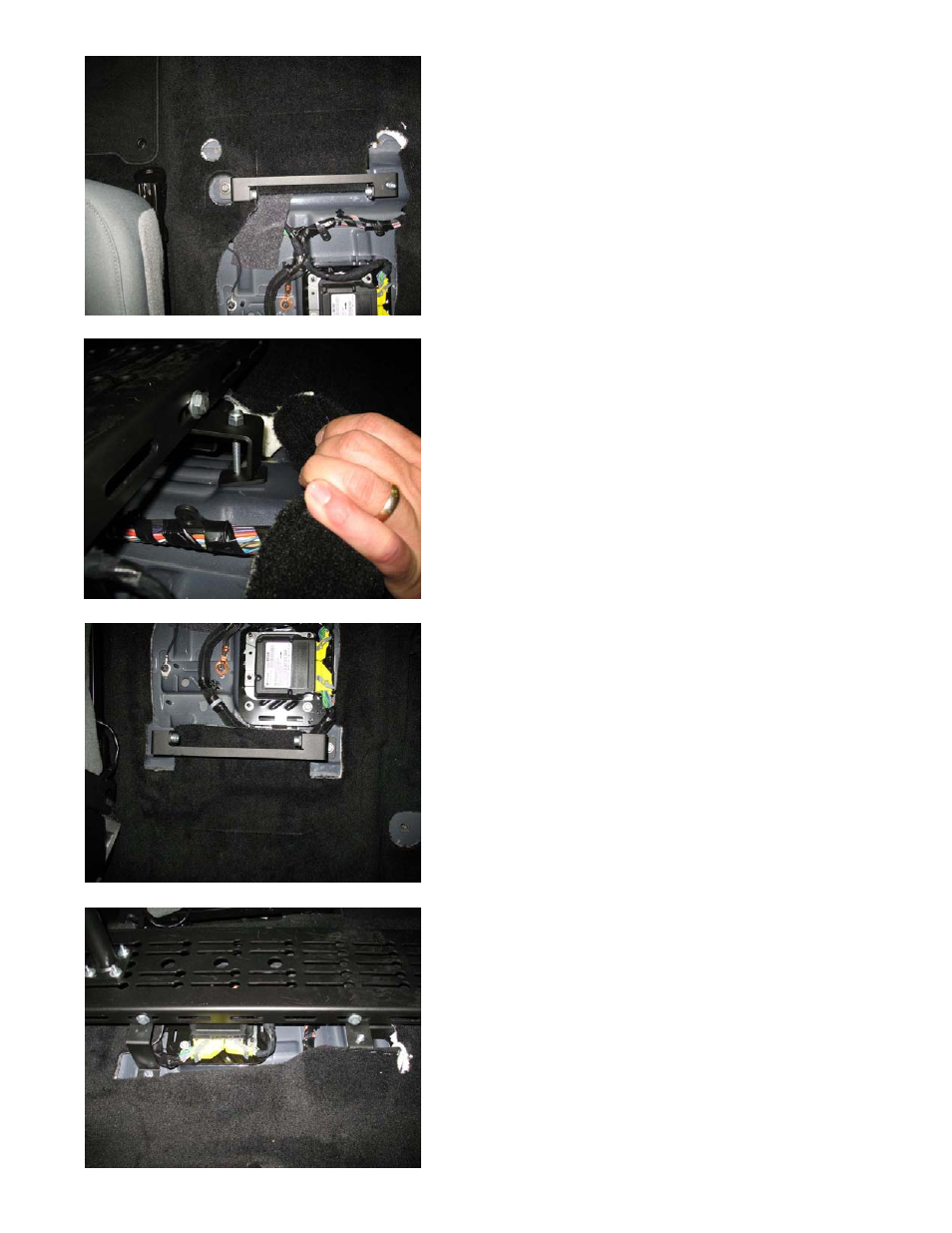

6. Attach Top Plate using 3/8- 16 x .75 bolts
and washers supplied in hardware bag.
3. Attach Front Leg to center seat section
mounting point, reusing original seat bolt or
the M8 bolt supplied in the hardware bag.
4. Tighten the 1/4-20 x 2.00 Socket Button Head
Screw with a 5/32" Hex bit against Clamp Plate,
until the Front Leg Tab is wedged in mounting hole.
Tighten the Jam Nut against Front Leg to lock the
Button Head Screw in place. Applying a
threadlocking adhesive to the screw and nut
is recommended.
5. Attach Rear Leg to center seat
section mounting points,
reusing original seat bolts or the M8
bolts supplied in hardware bag.
2/2
