Sedan:
1. Remove the stock tunnel plate by removing the
6 bolts.
2. The harness on the right side of the YAW sensor
(located on the transmission tunnel) may impede
box installation. For ease of installation, pull up
on harness to disconnect the push fastener
attaching the harness to the transmission tunnel.
3. The rear mounting points may be hidden under
the flooring. Carefully cut the flooring as shown
to expose the mounting points (Fig 1).

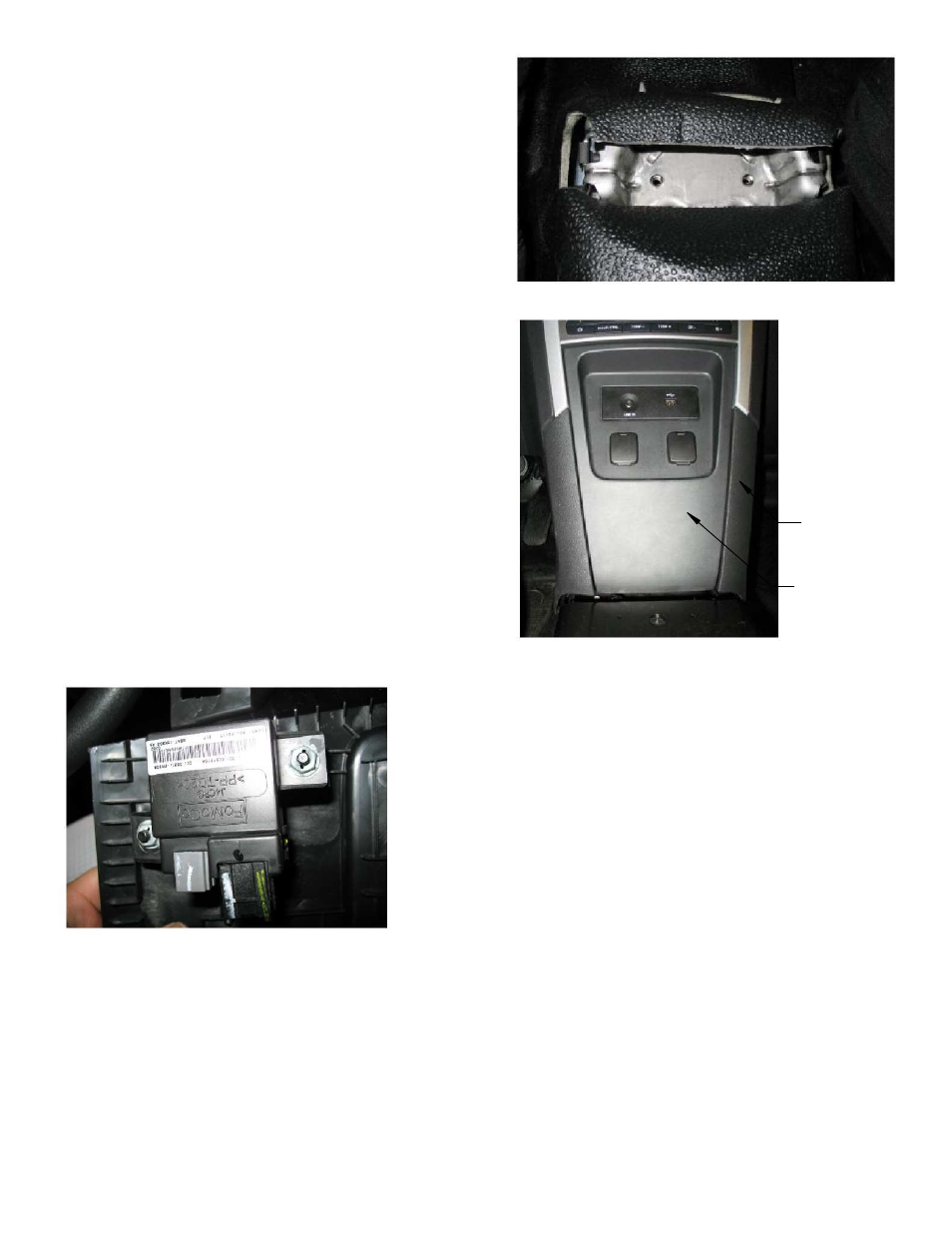

Fig 1 - Rear Mounting Bracket, Carpet Cut to Revel Threaded Inserts
4. Slide console box into place.
5. Attach console to transmission tunnel using OEM
hardware.
Utility:
1. Remove the lower dash trim panels on either side
of the dash (Fig 2).
2. Remove the stock tunnel plate by removing the 6
bolts.
3. Remove the USB/Audio/12v jack Trim Panel (Fig 2)
and disconnect the USB, Audio and 12v cables.
4. Relocate OEM Module to under dash area (Fig. 3)
Fig 2 - Utility Lower Dash
Lower Dash
Trim Panel
USB/Audio
Trim Panel
5. The harness on the right side of the YAW sensor
(located on the transmission tunnel) may impede
box installation. For ease of installation, pull up
on harness to disconnect the push fastener attaching
the harness to the transmission tunnel.
6. Remove the Top Plate from the console box.
7. Slide the console box into place.
8. Attach the console to the transmission tunnel using
the OEM hardware.
9. Attach the Lower Dash Trim Panel to the console box
by placing the lower lip of the Trim Panel into the hook
on the bottom of the console box (Fig 4).
10. Attach the top of the Lower Dash Trim Panel to the
console box using the supplied Trim Hooks (Fig 4).
Note that the left Trim Hook has an "L" cut out of it.
It may be easier to remove the Top Plate when
installing the Lower Dash Trim Panels.
11. Snap the Lower Dash Panels back into place.
Fig. 3 - OEM Module located on backside of Trim Panel
