4. The Extension Box has the ability to have the MCS-CUPHOLD2 attached. There are two
self-clinching nuts on the front of the Extension Box that correspond to two mounting slots on
the MCS-CUPHOLD2 (see FIG. 3). This mounting configuration is the same as described in
STEP 1.

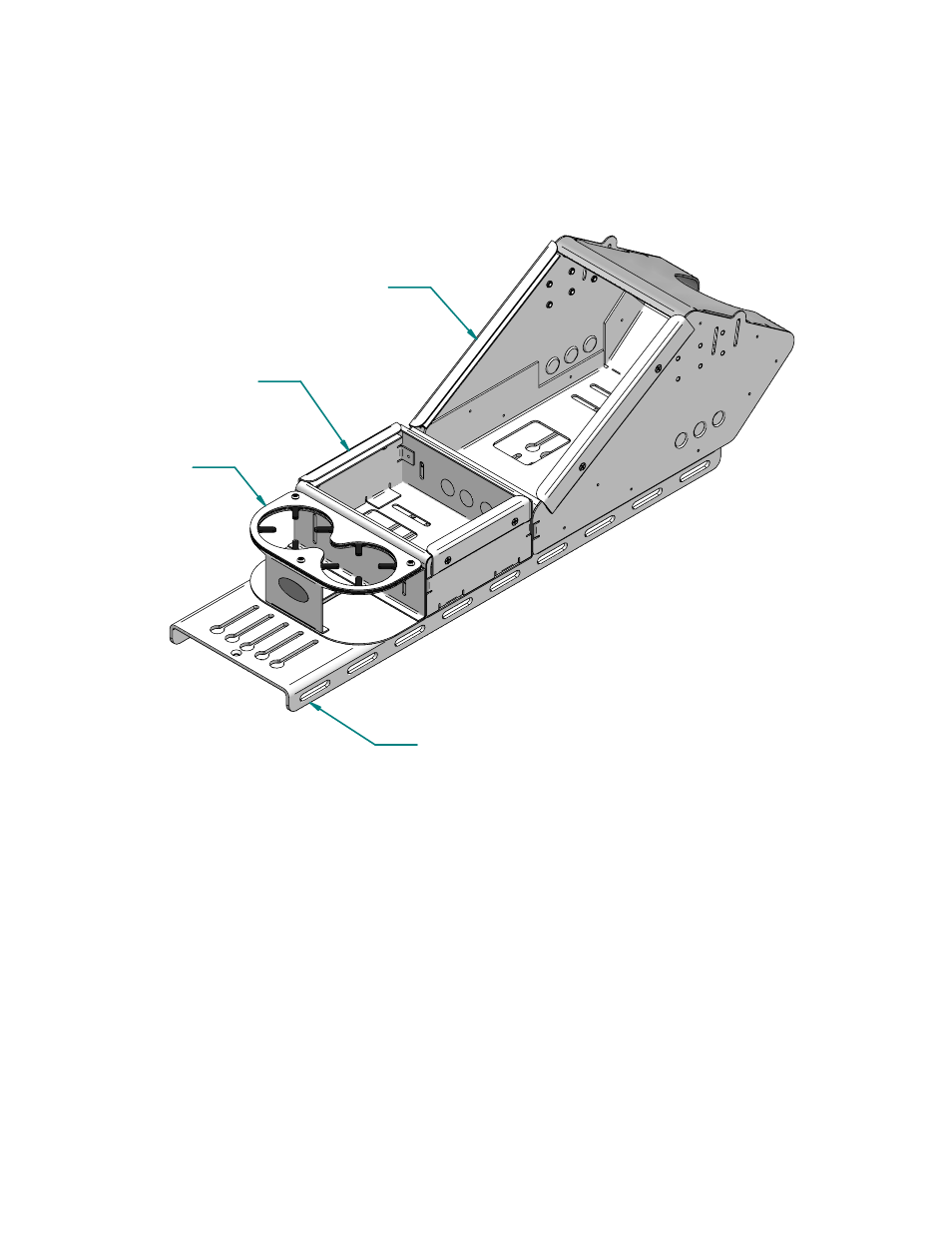

FIG. 3
Extension Box with various
interfacing components
Top Plate
MCS-CUPHOLD2
Extension Box
MCS-ERGOBOX
SHT 2 OF 3
