Remove Front Passenger Seat:
1. Slide seat forward and remove covers at rear seat bolts.
2. Loosen front left side cover by prying up at rear.
3. Using 5/8" socket, remove rear seat bolts.
4. Slide seat to rear and remove front seat bolts covers by sliding them forward.
5. Disconnect wire harness.
6. Remove seat by tilting seat forward and sliding it towards the rear of the vehicle to
disengage the seat rail hooks.
7. Remove front floor mat if installed.
Install Vehicle Base:
1. Set vehicle base in place (Fig. 1).
2. Hook seat back into slots
3. Install T-Brackets using provided hardware. The tab of the bracket will be between the
vehicle base and the seat rail (Fig. 2).
4. Use rubber mallet to align seat rails into square cutouts in vehicle base (Fig. 3).
5. Replace rear seat bolts.
6. Reconnect seat wire harnesses.
7. Install wire harness cover plate using provided hardware.
8. Replace rear seat bolt covers and floor mat if desired.

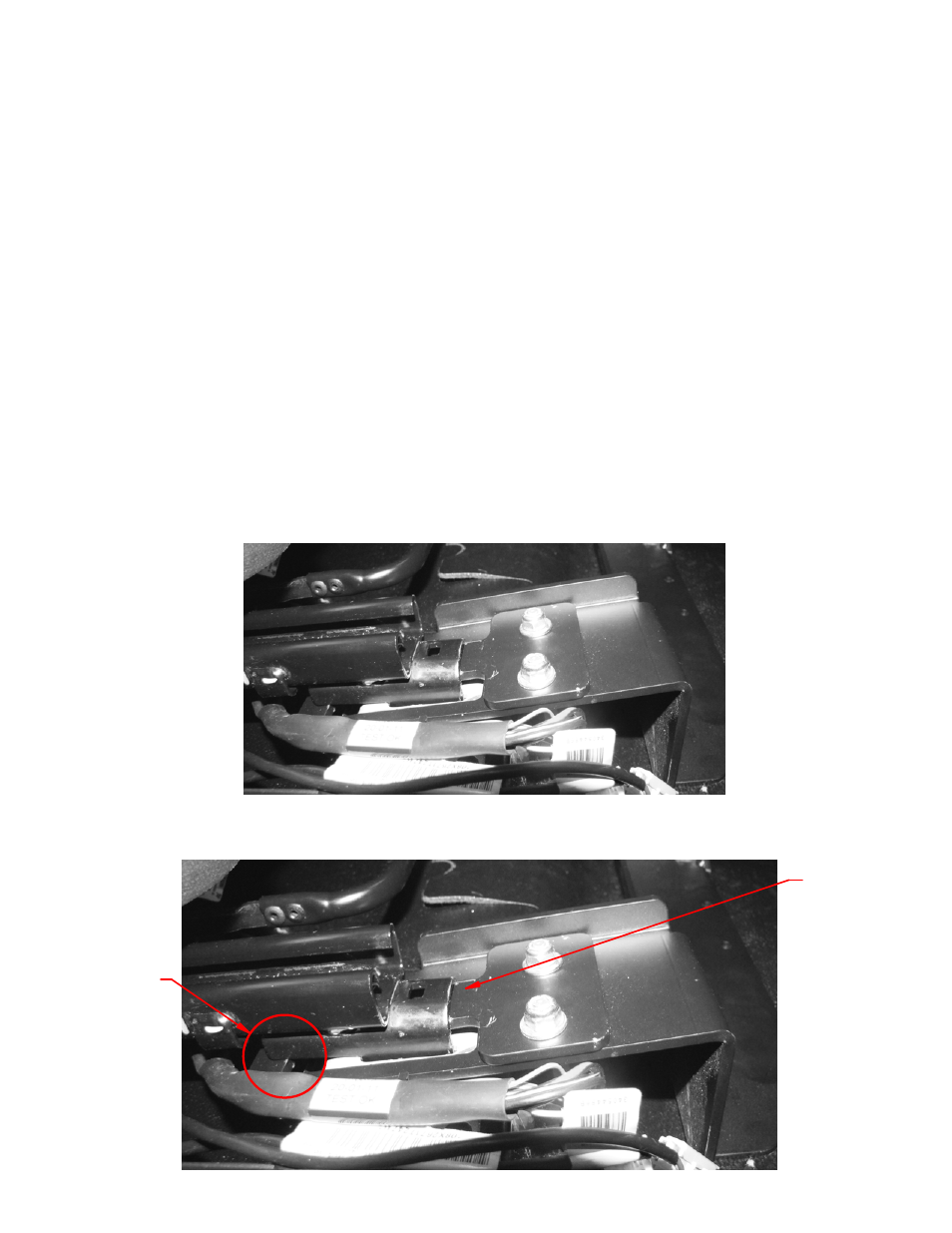

FIG. 1 - Vehicle Base Set Into Place
FIG. 2 - Vehicle Base Alignment
Rail should
not be sitting
on top of base
T-Bracket
palced
under seat
rail
