Brother FAX-8650P User Manual
Page 77
IV - 39

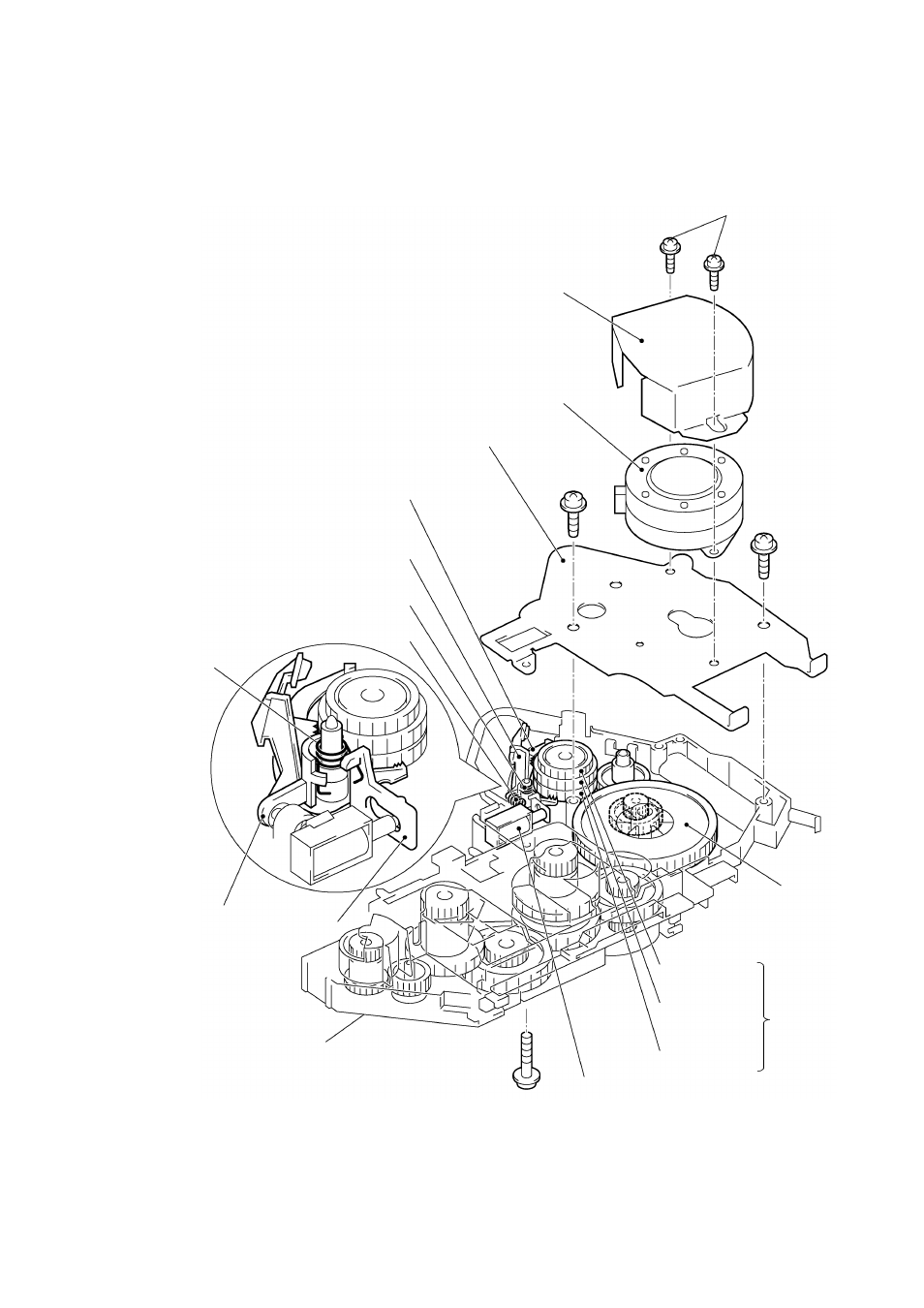

(4) To take off the motor cover and main motor, remove two screws "x."
(5) To take off the paper feed solenoid, solenoid lever, or clutch release lever, remove three
screws "y."
Motor cover
Main motor
Motor bracket
"y"
"y"
Solenoid lever
Clutch release lever
Solenoid spring
Clutch spring
Solenoid
spring
Clutch release lever
Solenoid lever
Gear drive unit
"y"
Paper feed solenoid
Pull-in roller
drive gear
Intermediate
gear
Clutch gear
Planetary
gear
system
Gear 20/94
"x"
Taptite, cup
S M3x8
Taptite, cup
B M4x20
