1.6 Document Feed Roller ASSY and Document Ejection Roller ASSY

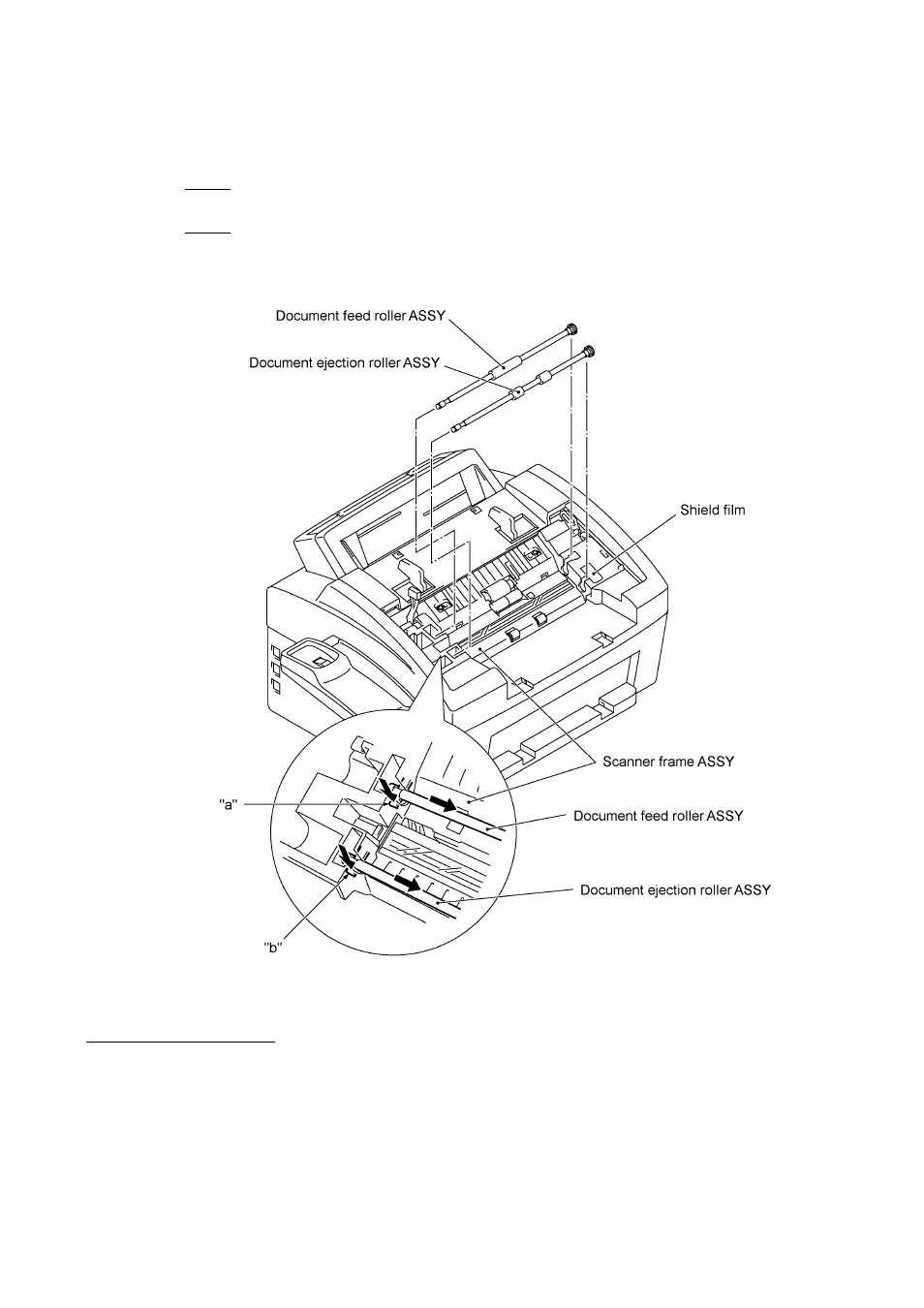

(1) Lightly push down arm rib "a" and shift the document feed roller ASSY to the right and
upwards.
(2) Lightly push down arm rib "b" and shift the document ejection roller ASSY to the right and
upwards, without removing the shield film.
NOTE: Take care not to break the arm ribs. They may easily break.
n n Reassembling Notes
• Make sure that the shield film is on the document ejection roller gear and not bent down by that
gear.
• Once removed, the shield film will become unusable and new one will have to be put back in.
