III - 2
2. MECHANISMS
The facsimile equipment is classified into the following mechanisms:
n SCANNER MECHANISM - Document feeding and ejecting mechanism
- Document scanning mechanism
n LASER PRINTING MECHANISM - Paper pulling-in, registration, feeding, and ejecting
mechanisms
- Print process mechanism (consisting of charging,
exposing, developing, transferring, and erasing
processes)
- Heat-fixing mechanism
n SENSORS AND ACTUATORS

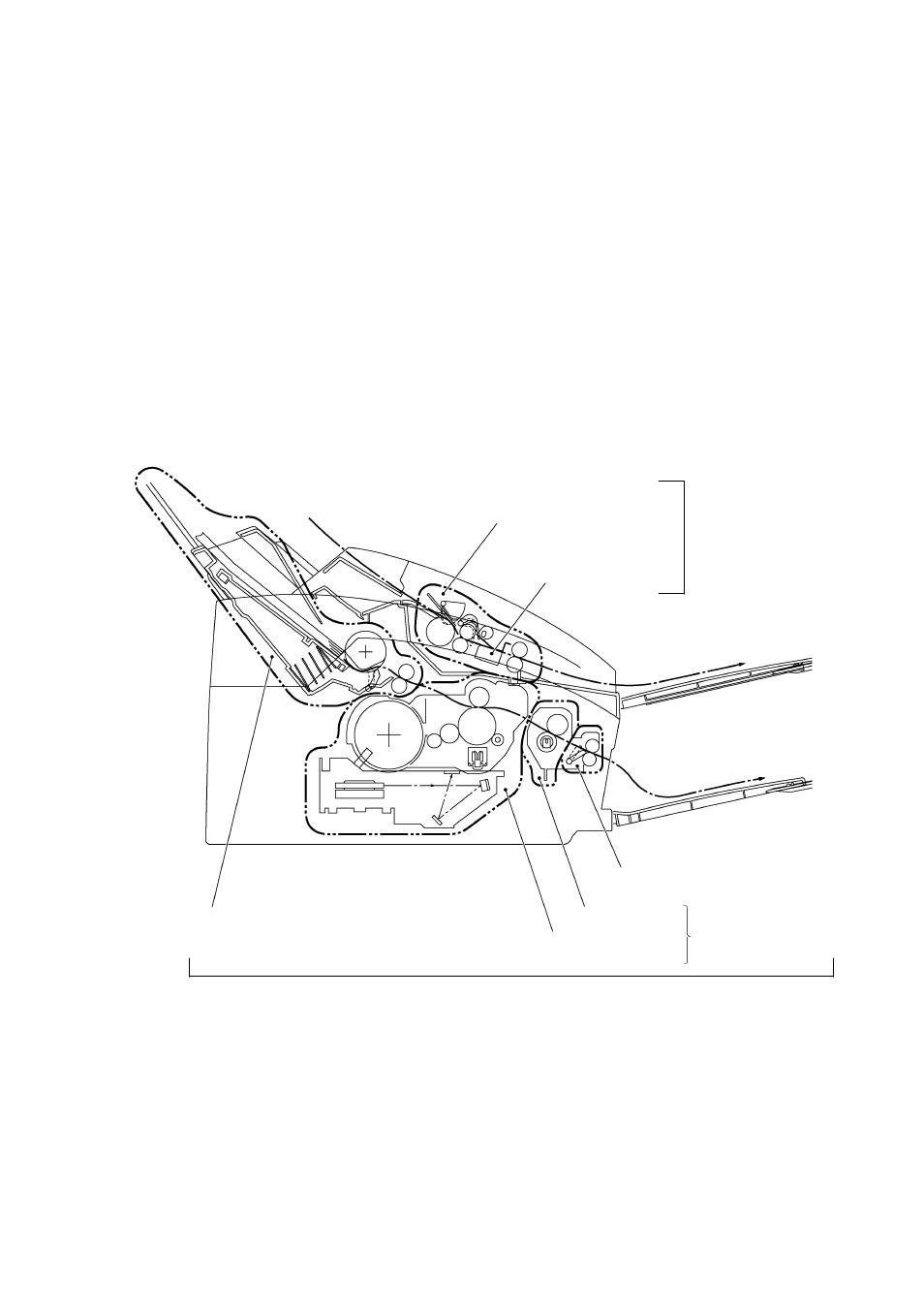

Document feeding and
ejecting mechanism
Document scanning
mechanism
SCANNER
MECHANISM
Paper ejecting mechanism
Heat-fixing
mechanism
Print process
mechanism
With paper feeding
mechanism
Paper pulling-in and
registration mechanism
LASER PRINTING MECHANISM
