III - 17
3.5 Power Supply PCB
[ 1 ] Low-voltage power supply PCB
The low-voltage power supply uses the switching regulation system to generate DC power (+5V
and +24V) from a commercial AC power supply for the driver circuits. The +5V source is fed to
the logic, control panel, sensors, CIS unit, etc. The 24V source is fed to the motors, solenoid, fan,
and high-voltage power supply PCB.
The low-voltage power supply also feeds AC power to the heater of the heat-fixing unit.

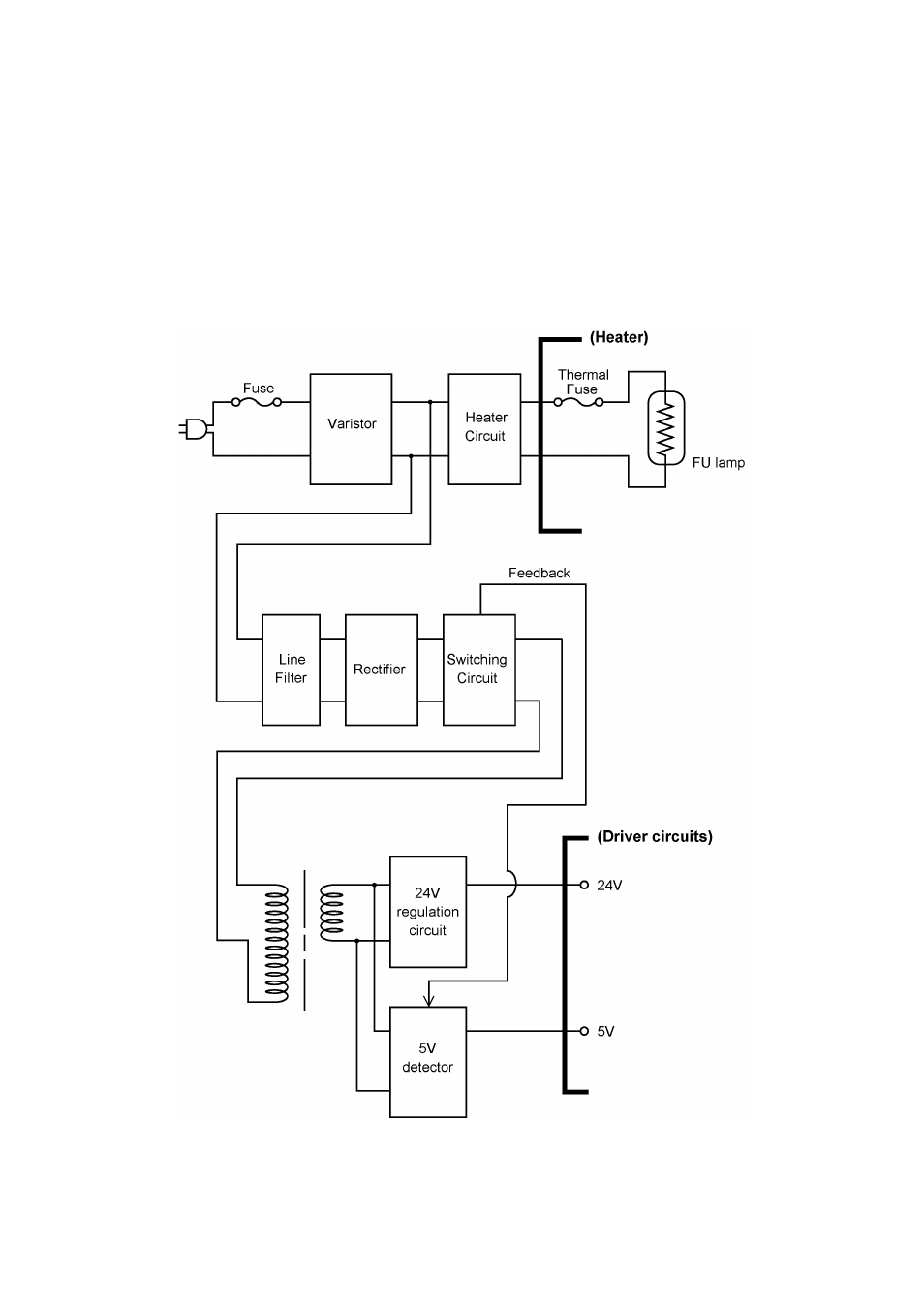

Low-voltage Power Supply Circuit
