Operating Instructions Safety Switch CET.-AP-...-AH-...
27

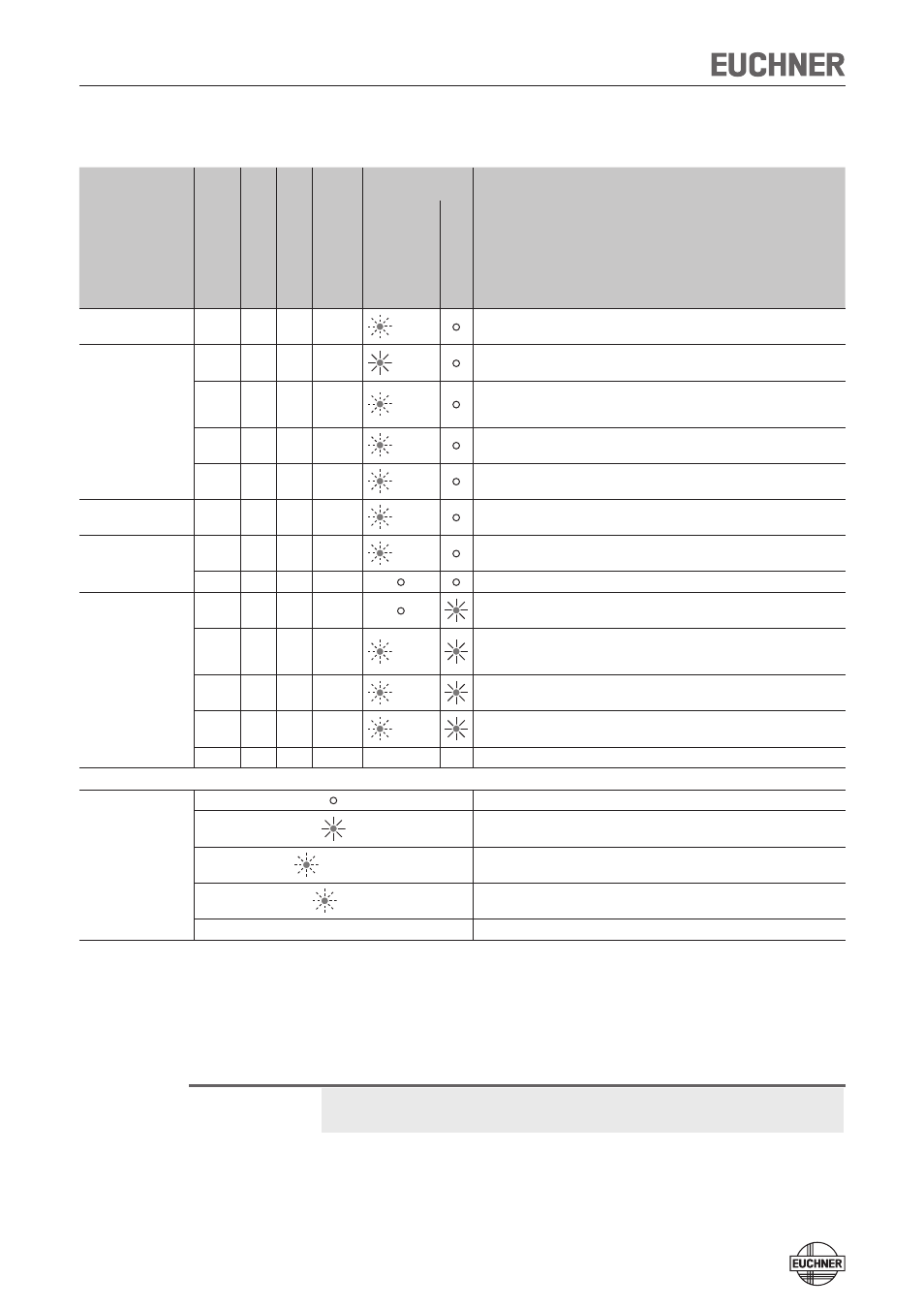

System status table
Operating mode
Actuator/door
position
Safety
outputs
OA
and
OB Monitoring
output
OUT
Door
monitoring
output
OUT
D
( only
CET3
and
CET4)
LED indicator
output
State
ST
ATE
(gr
een)
DIA
(r
ed)
Self-test X off off off
10 Hz
(8 s)
Self-test after power up
Normal operation
closed on on on Normal operation, door closed and locked
closed off on on
1 x in-
verse
Normal operation, door closed and locked, safety outputs not switched be-
cause:
- Feedback loop not closed
closed off off on 1 x Normal operation, door closed and not locked
open off off off 1 x Normal operation, door open
Teach-in standby open off off off 3 x
Door open, unit is ready for teach-in for a new actuator
(only short time after power-up)
Setup
closed off off off 1 Hz Teach-in operation
X off off off Positive acknowledgment after completion of teach-in operation
Fault display
X off off X
Fault on the power supply (e.g. clocked power supply; clocking must be
switched off)
X off off off 1 x
Fault in the teach-in operation
(e.g. actuator removed from the operating distance prior to the end of the
teach-in operation or disabled actuator in the operating distance)
X off off off 4 x
Output error
(e.g. short circuits, loss of switching ability)
X off off off 5 x
Internal fault
(e.g. component fault, data error or short circuit at the outputs)
X off off off X X Internal fault
Key to symbols
LED not illuminated
LED illuminated
10 Hz (8 s) LED flashes for 8 seconds at 10 Hz
3 x LED flashes three times, and this is then repeated
X Any state
After the cause has been remedied, faults can generally be reset by opening
and closing the door. If the fault is still displayed afterward, briefly interrupt the
power supply. Please contact the manufacturer if the fault could not be reset after
restarting.
Important:
If you do not find the displayed device status in the System status table, this indi-
cates an internal device fault. In this case, you should contact the manufacturer.
