Technical data for actuator CES-A-BDN-06
Parameter Value Unit
min. typ. max.
Housing material Macromelt PA-based plastic
Dimensions 26 x ∅ 6 mm
Mass 0.005 kg
Ambient temperature - 40 - + 70 °C
Degree of protection IP67 / IP69K 1)
Installation position Active face opposite read head
Power supply Inductive via read head
1) With flush installation

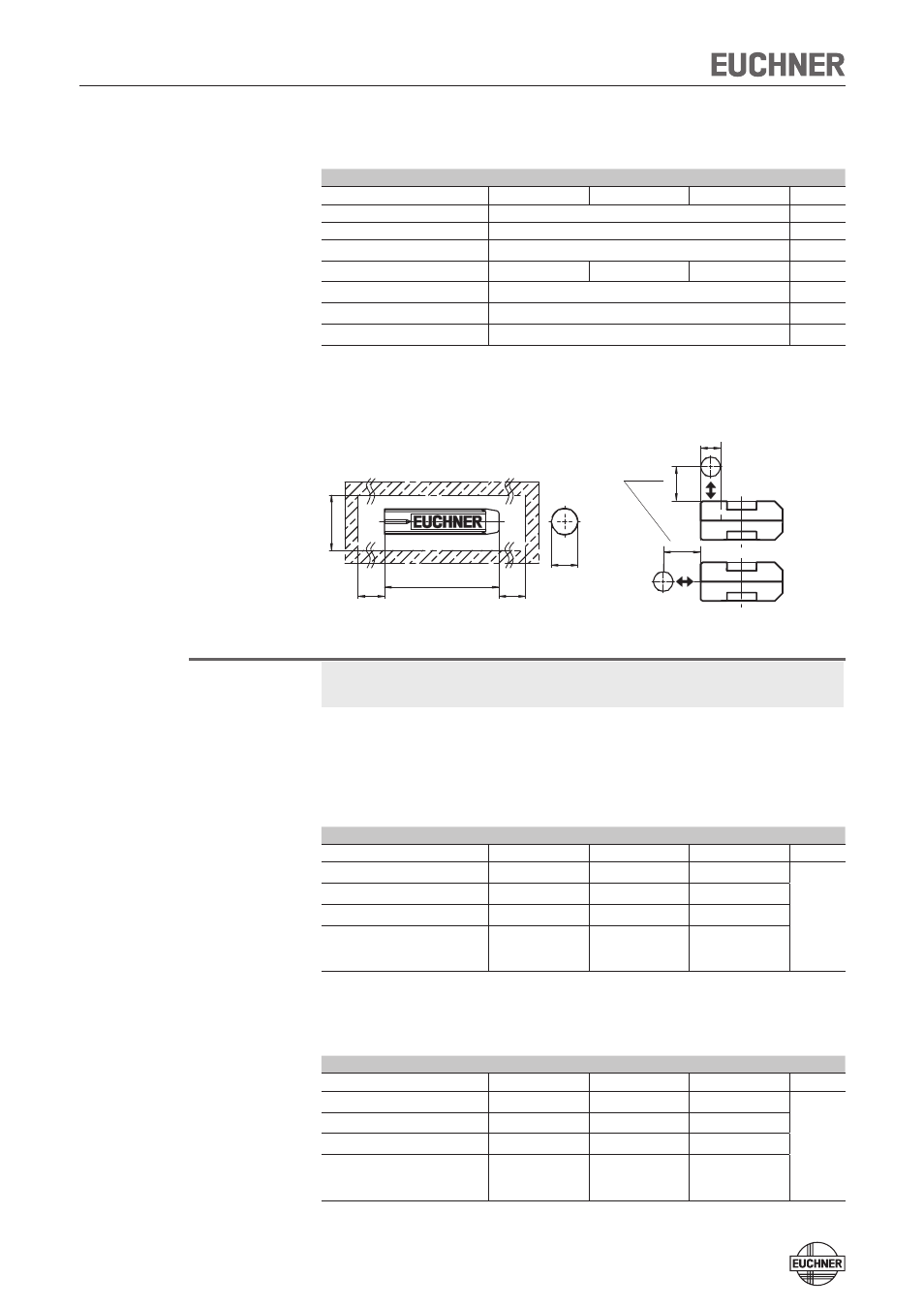

Dimension drawing
Caution!
Do not mount at temperatures below 0 °C.
The actuator can be damaged during mounting.
Operating distances
Operating distance for center offset m = 0
(only in combination with actuator CES-A-BDN-... from approach direction A)
Parameter Value Unit
min. typ. max.
Switch-on distance - 19 -
mm
Assured switch-on distance s
ao
1) 14 - -
Switching hysteresis 1) - 2 -
Assured switch-off distance s
ar
- in x/z direction
- in y direction
-
-
-
-
40
60
Operating distance for center offset m = 0
(only in combination with actuator CES-A-BDN-... from approach direction C)
Parameter Value Unit
min. typ. max.
Switch-on distance - 15 -
mm
Assured switch-on distance s
ao
1) 10 - -
Switching hysteresis 1) - 2 -
Assured switch-off distance s
ar
- in x/z direction
- in y direction
-
-
-
-
40
60
Installation options
26 0
+0,5
Ø
30
* min.
30 * 30 *
6,1 0
+0,1
6
* Metal-free zone
Operating distance
C
A
Approach
direction
