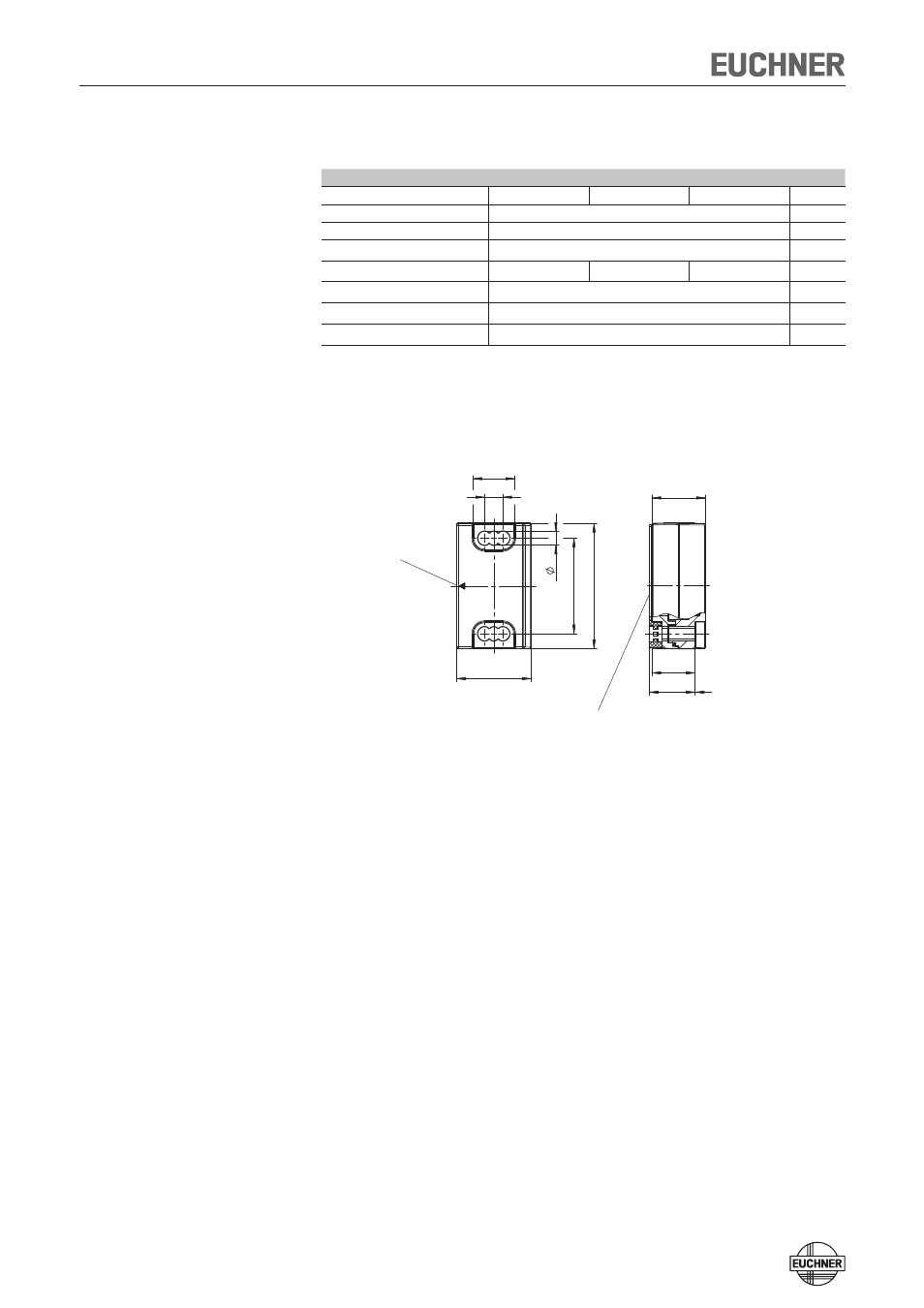

Technical data for actuator CES-A-BBN-C04
Parameter
Value
Unit
min.
typ.
max.
Housing material
Plastic PBT
Dimensions
42 x 25 x 18
mm
Mass
0.03
kg
Ambient temperature
- 40
-
+ 65
°C
Degree of protection
IP67/IP69K
Installation position
Active face opposite read head
Power supply
Inductive via read head
Dimension drawing
Active face
4,5
32
14
25
42
6
14,5
18
15,5
2 safety screws M4x20
included
With rubber support
Rubber support
(included)
