E T C I n s t a l l a t i o n G u i d e
Unison Heritage Series
Unison Heritage Fader Station
Page 2 of 4
Electronic Theatre Controls, Inc.
Connect the Wiring
Step 1:
Pull all required wiring to the backbox.
Step 2:
Terminate and connect LinkPower. LinkPower is topology free and
polarity independent. You may install LinkPower in any combination
of bus, loop, star, or home-run.
a:
Locate the LinkPower pigtail and two WAGO CAGE CLAMP
®
connectors from the termination kit.
b:
Strip 3/8” (9-10mm) from the ends of each LinkPower wire
(both pigtail and installed LinkPower wire).
c:
Use the WAGO connector to connect the installed control wire
to the connectorized pigtail wires provided. Open the terminal
levers on the WAGO connector and insert the installed
(typically black) Belden 8471 LinkPower wire and the black
lead from the LinkPower pigtail into the terminals.
d:
Close the levers onto the wires.
e:
Repeat for the installed (typically
white) Belden 8471 LinkPower wire
and remaining pigtail wire using a
new WAGO connector.
f:
Install the LinkPower connector
onto the control board.
Step 3:
Terminate the ESD drain (ground) wire.
This connection is required only when the
control cable is not installed in grounded
metal conduit.
a:
Locate the ground wire pigtail and
one WAGO connector from the
termination kit.
b:
Strip 3/8” (9-10mm) from the end of each ground wire (both the
provided pigtail and the installed wire).

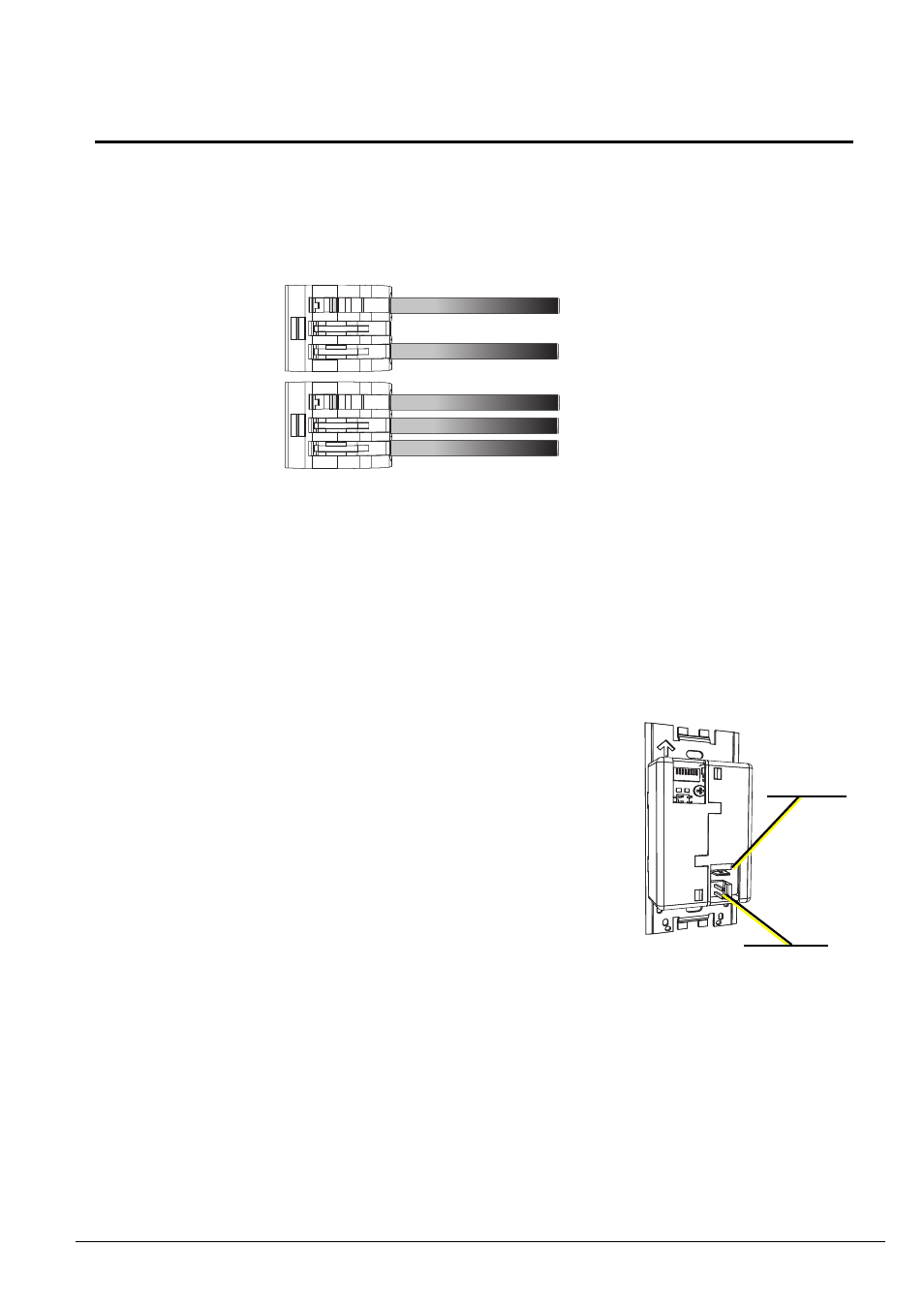

Topology of a single
station installation
Topology of multiple
stations installed in
series
Installed control wire
Pigtail wire
Installed control wire
Installed wire to next station
Pigtail wire
ground
connection
LinkPower
connection
