Page 19
Deutsch
CE Source FourPAR • 17
Gebrauch genommen werden.
Ausbau einer Linse
Rissig gewordene und stark zerkratzte Linsen müssen ausgewechselt
werden.
1.
Durch den Betrieb werden die Linsen im CE Source FourPAR heiß.
Vor dem Berühren der Linse, den Scheinwerfer abkühlen lassen.
2.
Den Scheinwerfer auf eine flache und stabile Arbeitsfläche legen.
ACHTUNG!
Vor Ein- oder Ausbau von Linsen den Scheinwerfer
erst vom Netz trennen.

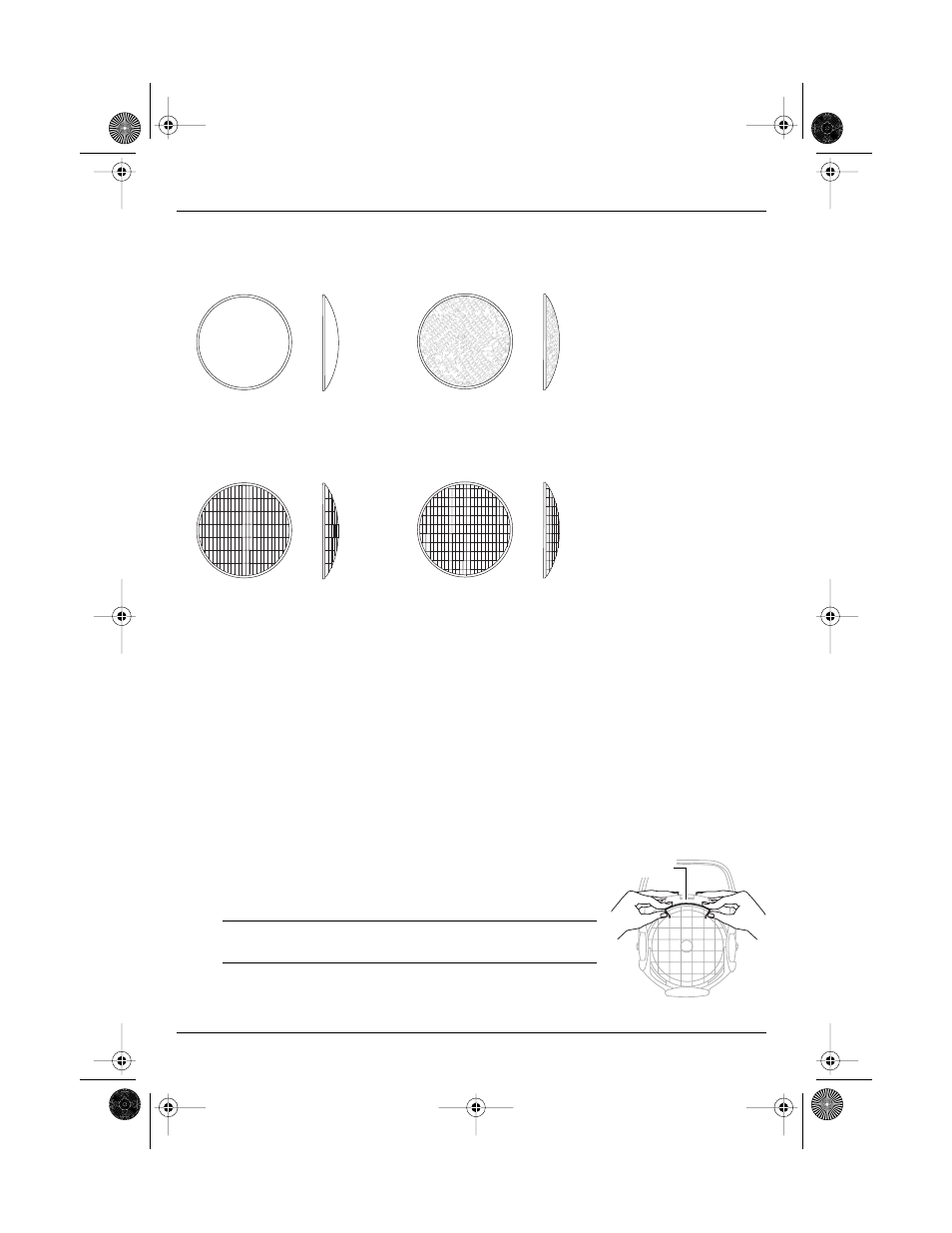

NSP
VNSP
MFL
WFL
Punktlinse
Durchsichtiges Glas
15° Runde Strahlform
Spotlinse
Kornraster (leicht diffuse Textur)
19° Runde Strahlform
Mittelflutlinse
Weniger Facetten
Größe 6 X 22 mm
21° x 34° Längliche Strahlform
Breite Flutlinse
Viele Facetten
Größe 6 x12 mm
30° X 51° Längliche Strahlform
Abbidung 2
Gitterklemme
CES4PAR(4Lang)Ger.fm Page 17 Tuesday, August 31, 1999 2:36 PM
