8 • CE Source FourPAR
English
CE Souce FourPAR lenses
There are five available lenses for the CE Source FourPAR. The
MFL lens comes installed in the luminaire; the VNSP, NSP and
WFL are packed with the luminaire; and the CL (14°) is an optional
accessory that you can order. The CL lens provides maximum
beam intensity.

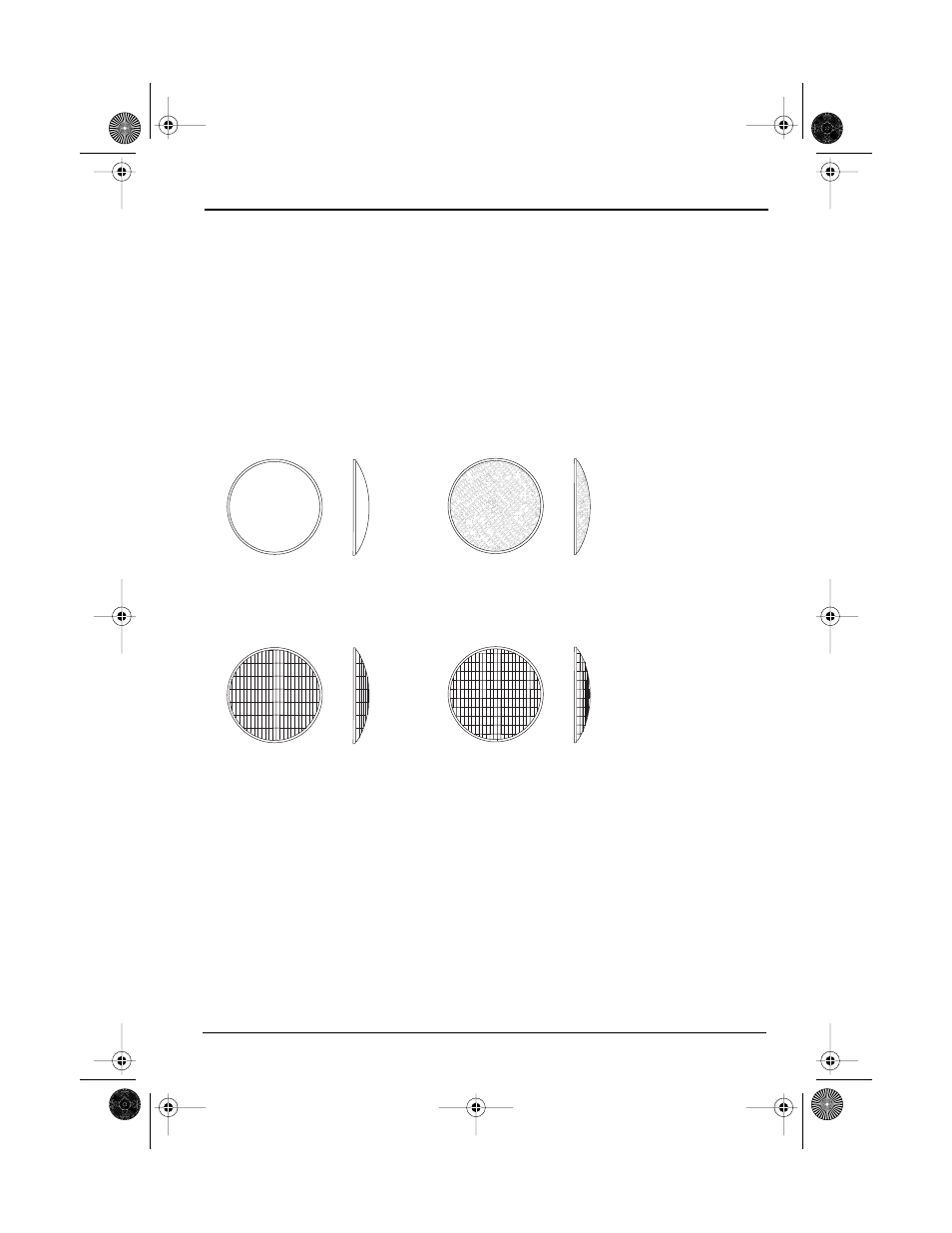

You can identify the lens type or beam spread by the lens texture.
Caution!
Never operate the CE Source FourPAR without a
lens in place.
NSP
VNSP
MFL
WFL
Very narrow spot
Clear glass
15° Round beam shape
Narrow spot
Stipple glass (slight diffuse texture)
19° Round beam shape
Medium flood
Fewer facets, sized 6 x 22mm
21° x 34° Oblong beam shape
Wide flood
Many facets, sized 6 x 12mm
30° x 51° Oblong beam shape
