6 • CE Source Four jr & CE Source Four jr Zoom
English

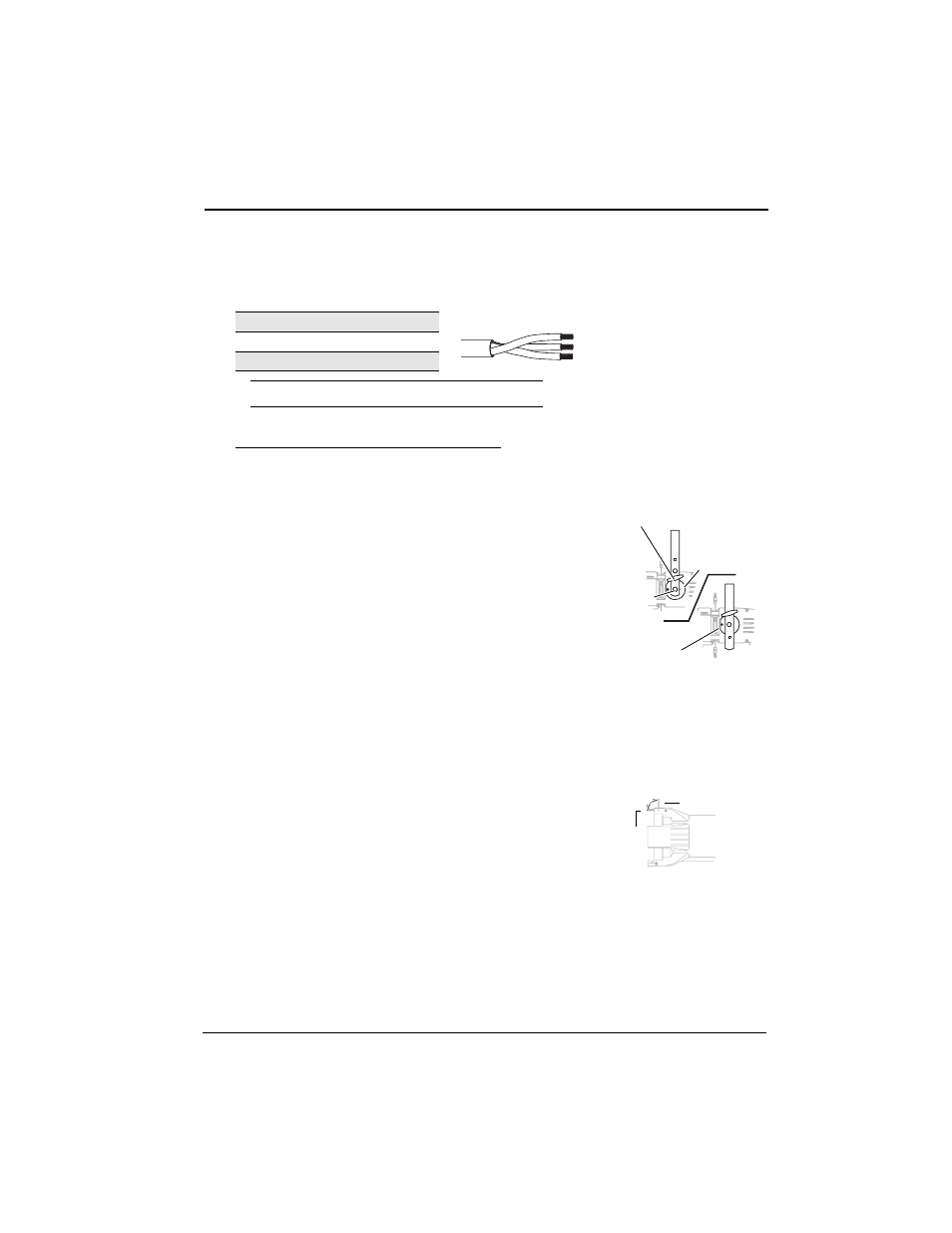

Wiring and power information
A plug of at least 2.5 amp (220/240V) rating should be attached to
the luminaire's mains lead. The wires in the mains lead are
1.5mm 2 each and coloured in accordance with the following code:
Adjusting the yoke
To adjust the luminaire's position, loosen the yoke locking knob
and tilt the luminaire to the desired position. Retighten the yoke
locking knob to secure it.
CE Source Four jr/Zoom's two-position yoke allows you to modify
the overall height of the luminaire in the yoke.
1. To change the yoke position, remove the yoke locking knob,
then remove the hex bolts on either side of the luminaire.
2. Move the luminaire to the desired position ( Figure 1 ).
3. Replace and tighten the hex bolts and the locking knob.
Colour frame retaining clip
The colour frame holder is equipped with a spring-loaded
retaining clip that prevents colour frames and accessories from
falling out of the holder.
Important: Always hang CE Source Four jr/Zoom with the
colour frame retaining clip in the locked position.
1. Release the retaining clip by pushing it sideways. The retaining
clip will pop open.
2. Insert the colour frame.
3. Press the retaining clip down until it locks into position.
Green and Yellow: Earth
Blue: Neutral
Brown: Live
WARNING! This luminaire must be earthed.
Current rating:
120V/5 amp maximum
240V/2.5 amp maximum
Operating frequency: 50/60Hz
t 180 ° c
Figure 1
Yoke locking
Clutch disc
Hex bolt
Optional yoke
mounting position
knob
Figure 2
Retaining clip
Unlocked
Locked
