Status Indicators
Status Indicators are on by default. Select Off to turn the Status Indicators off.

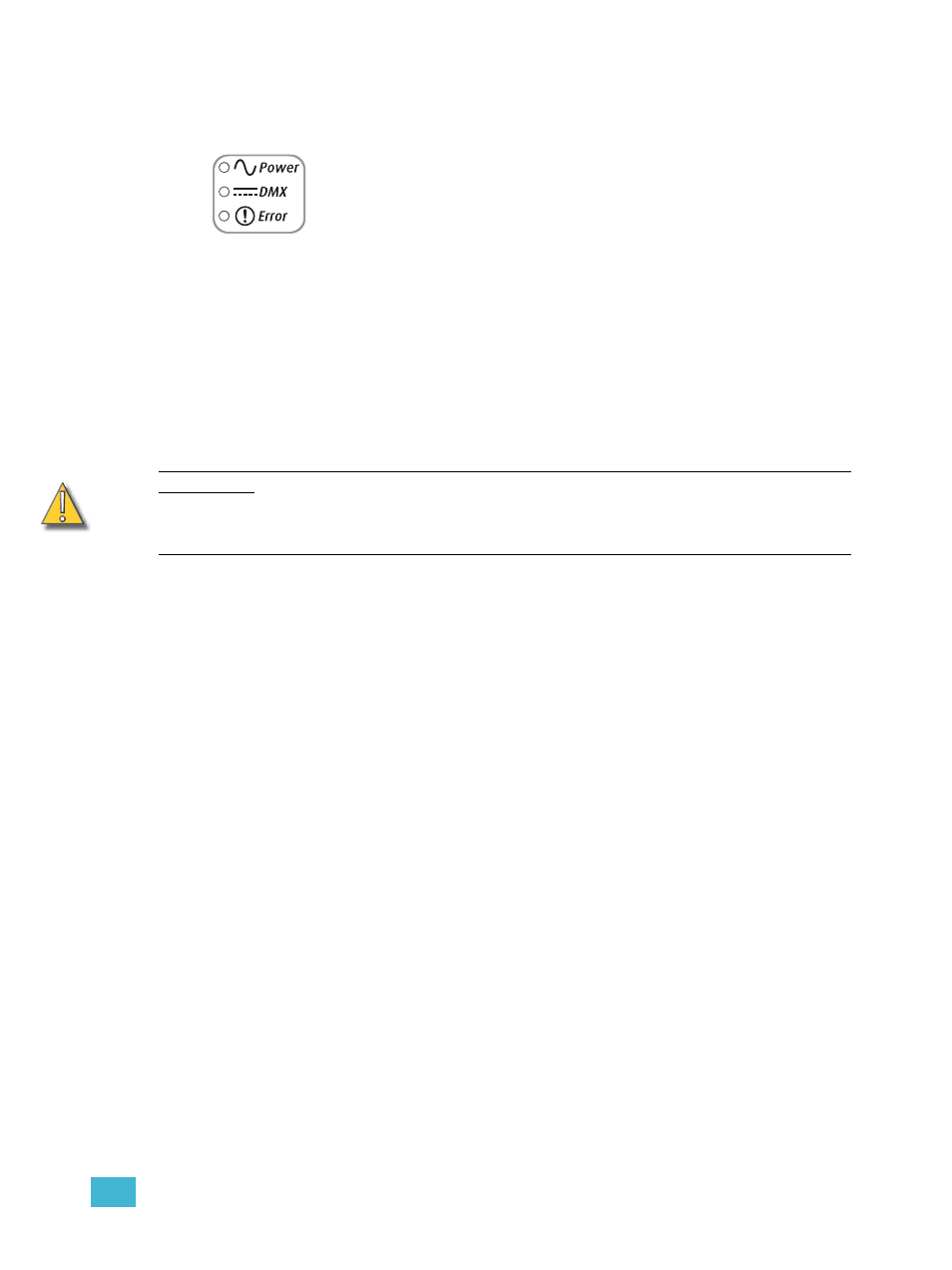

Figure-1.8 Status Indicators on the back of a fixture.
The status indicators are three, small, colored LEDs on the back of the fixture that indicate
the status of:
• Power — Illuminated blue when AC power is supplied to the fixture.
• DMX — Illuminates green when an active DMX signal is being received by the
fixture. The LED blinks when DMX is not present.
• Error — Blinks red only when the fixture is experiencing a data error, high internal
temperature, or other abnormal condition.
C A U T I O N :
Although it may be desirable in some applications to eliminate all stray light from
the back of the fixture, turning the Status Indicators OFF prevents them from
communicating potentially critical information. Use discretion when selecting the
OFF setting.
Over Temp
You can change how an over-temperature situation is indicated in order to control stray
light.
Visible
The fixture produces a low-level, red light from the LED array and turns on the error
indicator light.
Visible
The fixture produces a low-level light from only some of the LEDs in the LED array and turns
on the error indicator light.
Dark
The fixture turns off the LED array entirely.
Restore Defaults
Click Restore Defaults to return all the settings to the factory settings. This function clears
all custom settings including all changes to Presets and Sequences.
