Maestro Installation Guide Technical Specifications
MAN-MASIG (Ver 1.33)
A-3

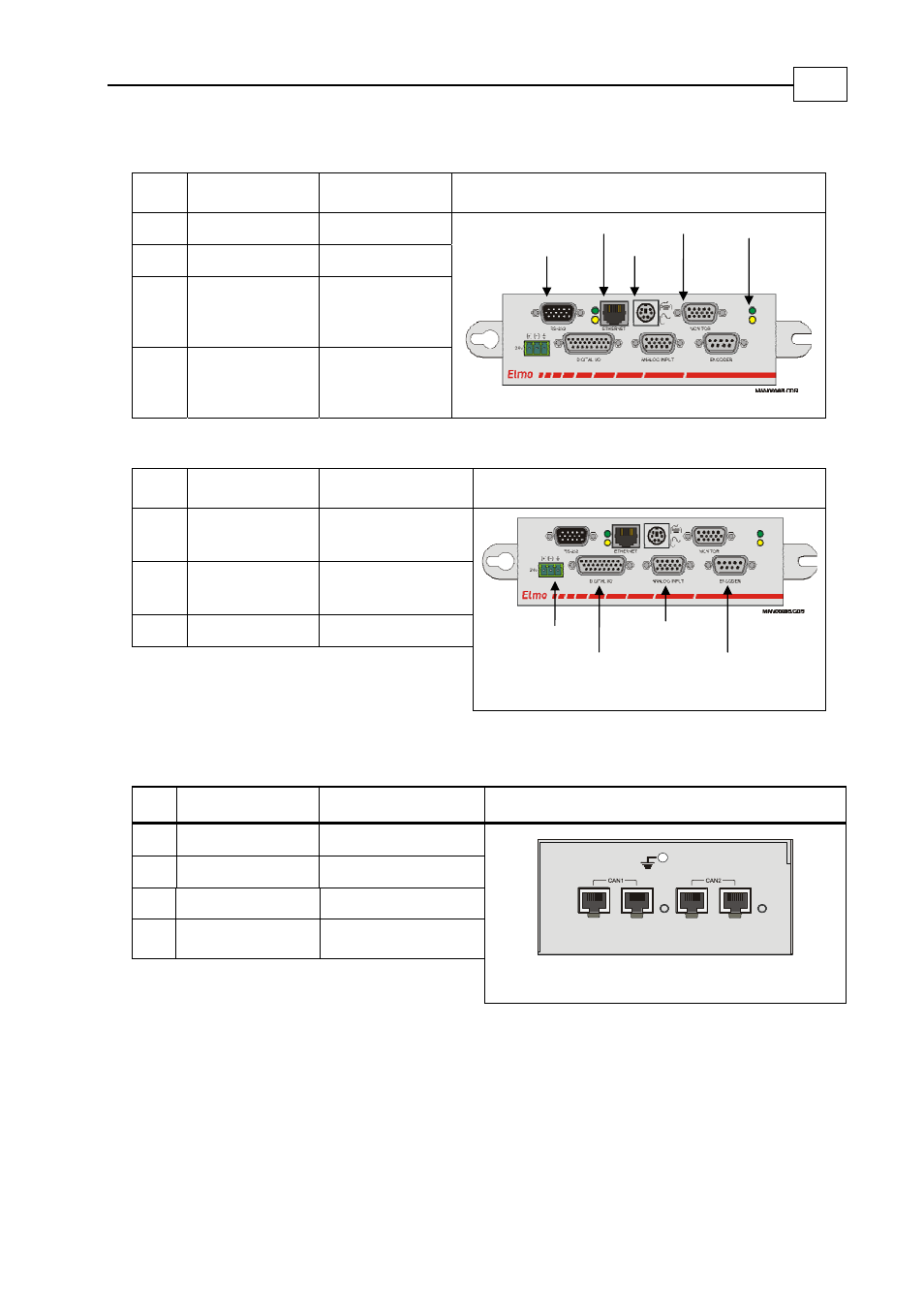

Pins Type Port Connector Location
9 D-Sub M RS-232
8 RJ-45 ETHERNET
6 Mini DIN
Circular
Reserved
15 D-Sub
(high-density)
Reserved
Ethernet Status Reserved
Table A-2: Connectors on the “Front” of the Maestro (top row)
Pins Type Port Connector Location
26 D-Sub F
(high density)
DIGITAL I/O
15 D-Sub F
(high-density)
ANALOG INPUT
9 D-Sub M ENCODER
Table A-3: Connectors on the “Top” of the Maestro (bottom row)
Pins Type Port Connector Location
8 RJ-45 CAN1
8 RJ-45 CAN1
8 RJ-45 CAN2
8 RJ-45 CAN2
Comm. Reserved
Power
Analog Input
ECAM Digital
Input/Output
