Tuba Installation Guide Installation
MAN-TUBIG (Ver. 1.502)
www.elmomc.com
41
3.4.7. Auxiliary Feedback (FEEDBACK B)
When using one of the auxiliary feedback options, the relevant functionality of FEEDBACK B
ports are software selected for that option. Refer to the Tuba Command Reference Manual for
detailed information about FEEDBACK B setup.
3.4.7.1. Main Encoder Buffered Outputs or Emulated Encoder Outputs Option on
FEEDBACK B (YA[4]=4)
Through FEEDBACK B (Ports B1 and B2) the Tuba can provide two simultaneous buffered main,
or emulated, encoder signals to other controllers or drives. This option can be used when:
• The Tuba is used as a current amplifier to provide position data to the position controller.
• The Tuba is used in velocity mode, to provide position data to the position controller.
• The Tuba is used as a master in Follower or ECAM mode.
Below are the signals on the Auxiliary Feedback ports when set up to run as a buffered outputs
or emulated outputs of the main feedback (on FEEDBACK A):

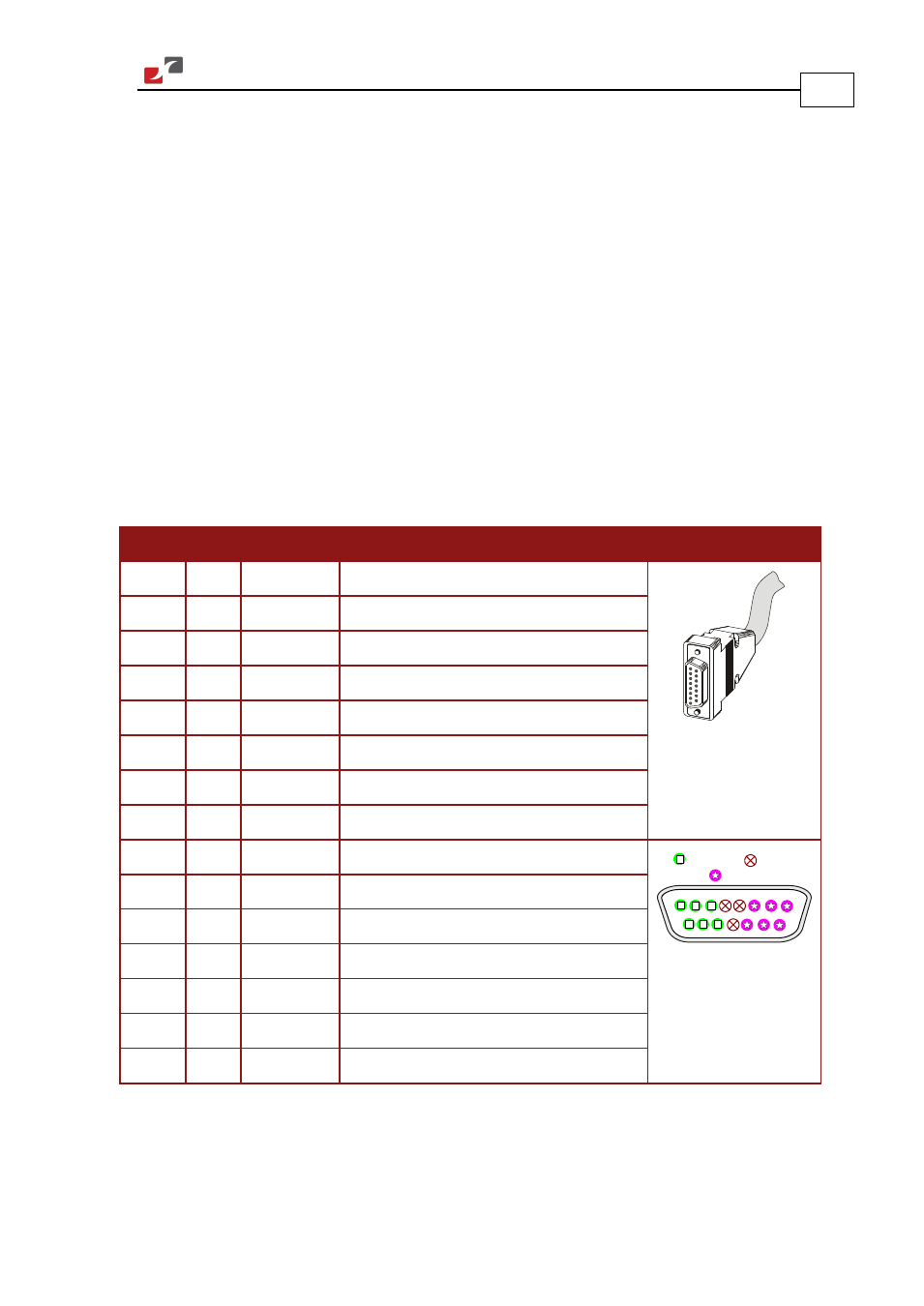

Port Pin Signal Function Pin Positions
B1 1 INDEX Auxiliary index high output
COR016A
15-Pin D-Sub Socket
B1 2 CHB Auxiliary Channel B high output
B1 3 CHA Auxiliary Channel A high output
PWR 4 +5V Encoder supply voltage
PWR 5 SUPRET Encoder supply voltage return
B2 6 CHAO Buffered Channel A output
B2 7 CHBO Buffered Channel B output
B2 8 INDEXO Buffered Index output
B1 9 INDEX- Auxiliary Index low output
8
15
1
9
Port B1 Power
Port B2
15-Pin D-Sub Plug
on Tuba
B1 10 CHB- Auxiliary Channel B low output
B1 11 CHA- Auxiliary Channel A low output
PWR 12 SUPRET Supply return
B2 13 CHAO- Buffered Channel A complement output
B2 14 CHBO- Buffered Channel B complement output
B2 15 INDEXO- Buffered Index complement output
Table 6: Main Encoder Buffered Outputs or Emulated Encoder Outputs on FEEDBACK B - Pin
Assignments
