Tuba Installation Guide Installation
MAN-TUBIG (Ver. 1.502)
www.elmomc.com
20
3.3. Mounting the Tuba
The Tuba has been designed for two standard mounting options:
• Attaching directly to the wall with screws
• Mounting on a DIN rail
With either type of mounting, be sure to leave about 10 cm (4 in) above and below the
instrument for heat dissipation.
3.3.1. Mounting Directly onto a Wall
The vertical mounting strip at the back of the Tuba enables you to screw the drive directly into
a wall.
To mount the Tuba with the mounting strip:
1. On the back of the drive, push the mounting strip up until it clicks and locks. The top lip
(with the hole) should be exposed.

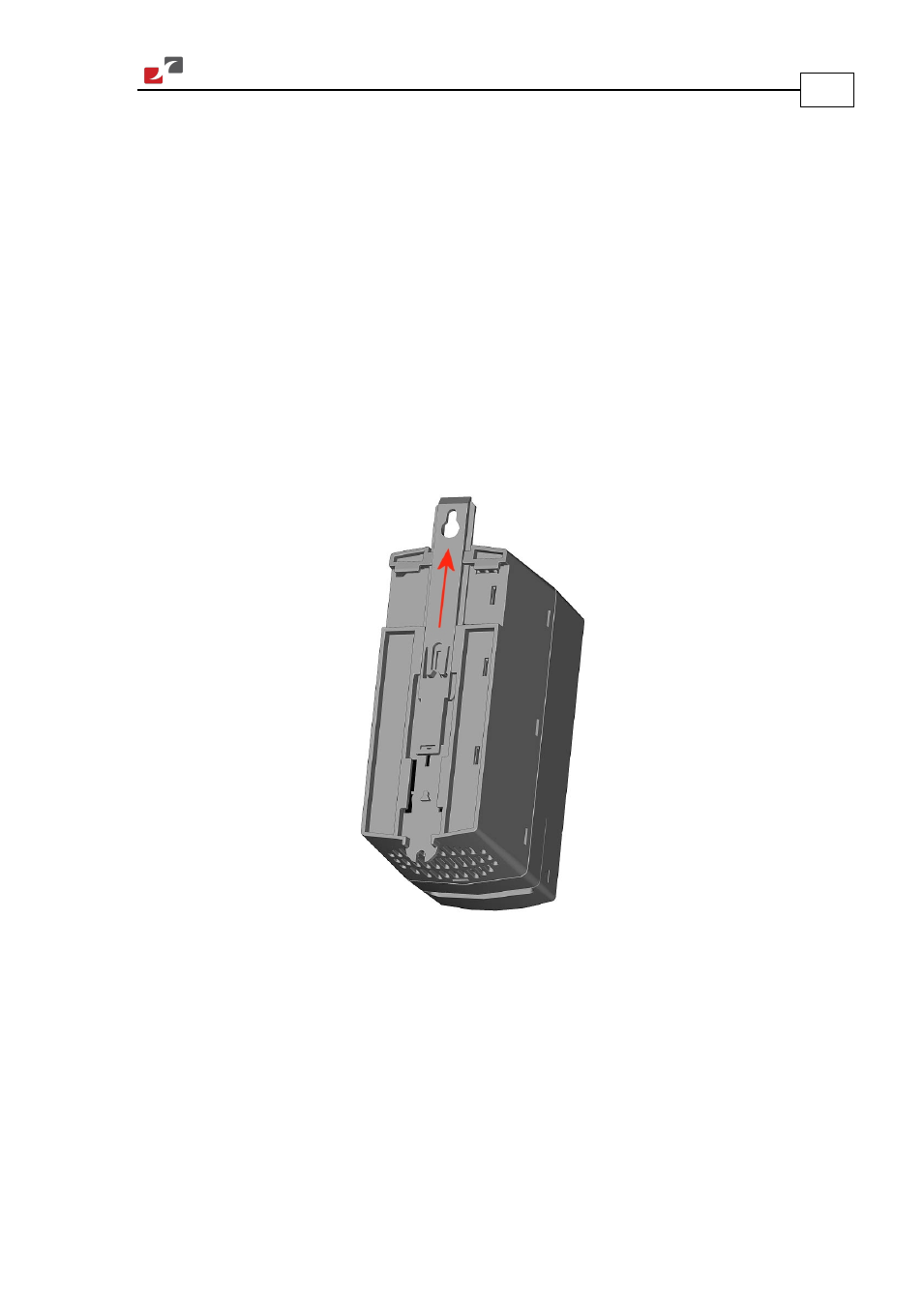

Figure 3: Extending the Mounting Strip
2. Mount the Tuba vertically onto the wall with two screws, one through the top hole of the
mounting strip and one at the bottom.
