Chapter 3: Installation
The Guitar must be installed in a suitable environment and properly connected to its voltage
supplies and the motor.
3.1. Site Requirements
You can guarantee the safe operation of the Guitar by ensuring that it is installed in an
appropriate environment.
Feature Value
Ambient operating temperature 0 °C to 40 °C (32 °F to 104 °F)
Maximum non-condensing humidity 90%
Operating area atmosphere No flammable gases or vapors permitted in area
Models for extended environmental conditions are available.
Caution:
The Guitar dissipates its heat by convection. The maximum operating ambient
temperature of 0 °C to 40 °C (32 °F to 104 °F) must not be exceeded.
3.2. Unpacking the Drive Components
Before you begin working with the Guitar, verify that you have all of its components, as follows:
•
The Guitar servo drive
• The Composer software and software manual
The Guitar is shipped in a cardboard box with Styrofoam protection.
To unpack the Guitar:
1. Carefully remove the servo drive from the box and the Styrofoam.
2. Check the drive to ensure that there is no visible damage to the instrument. If any damage
has occurred, report it immediately to the carrier that delivered your drive.

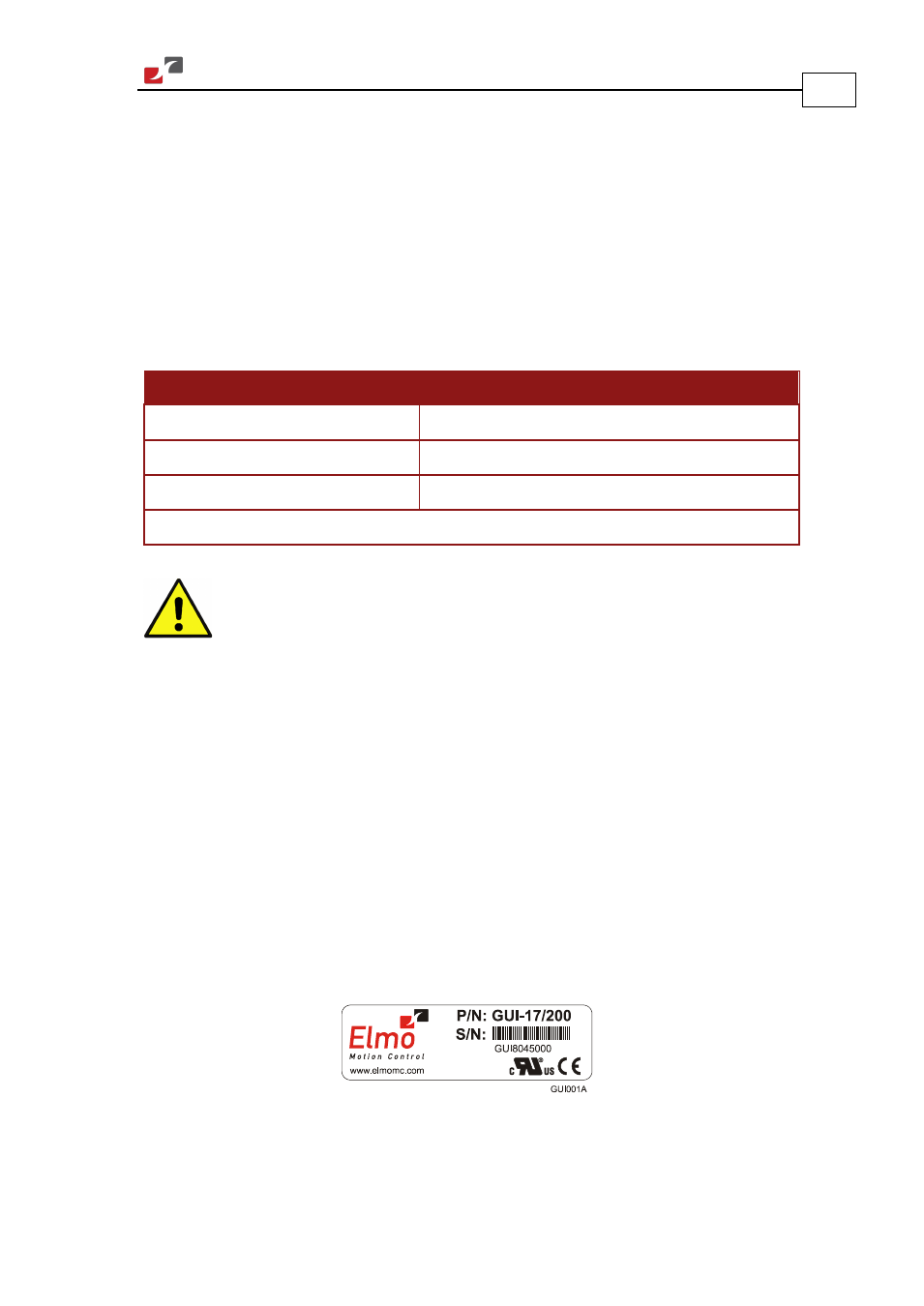

3. To ensure that the Guitar you have unpacked is the appropriate type for your
requirements, locate the part number sticker on the side of the Guitar. It looks like this:
