Integrating the guitar on a pcb, Traces, Grounds and returns – ElmoMC SimplIQ Digital Servo Drives-Guitar Installation Guide User Manual

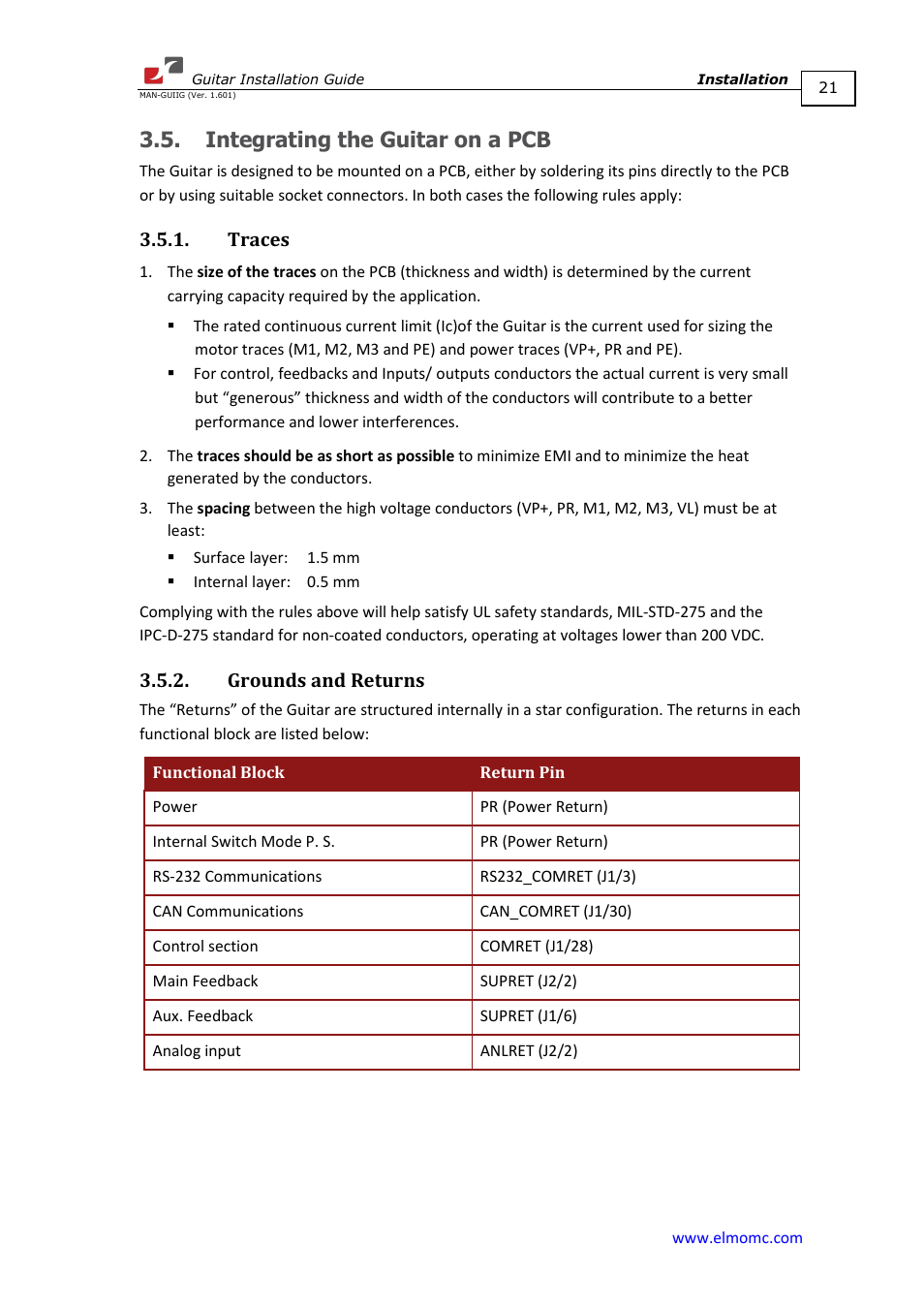

Page 21: Traces 3.5.2. grounds and returns
