5.6.3. Digital Output Interface – PLC Mode
Feature Details
Suffix applicable S or 0
Type of output Optically isolated source
Maximum supply output (VDD) 30 V
Max. output current
I
out
(max) (V
out
= Low)
I
out
(max) ≤ 500 mA for Output 1
I
out
(max) ≤ 250 mA for Outputs 2 to 4
VOL at maximum output voltage
(low level) V
out
(on) ≤ 0.3 V
R
L
The external R
L
must be selected to limit output
current to no more than 500 mA (Output 1) or 250
mA (Outputs 2 to 4).
Executable time 0 < T < 250 µsec

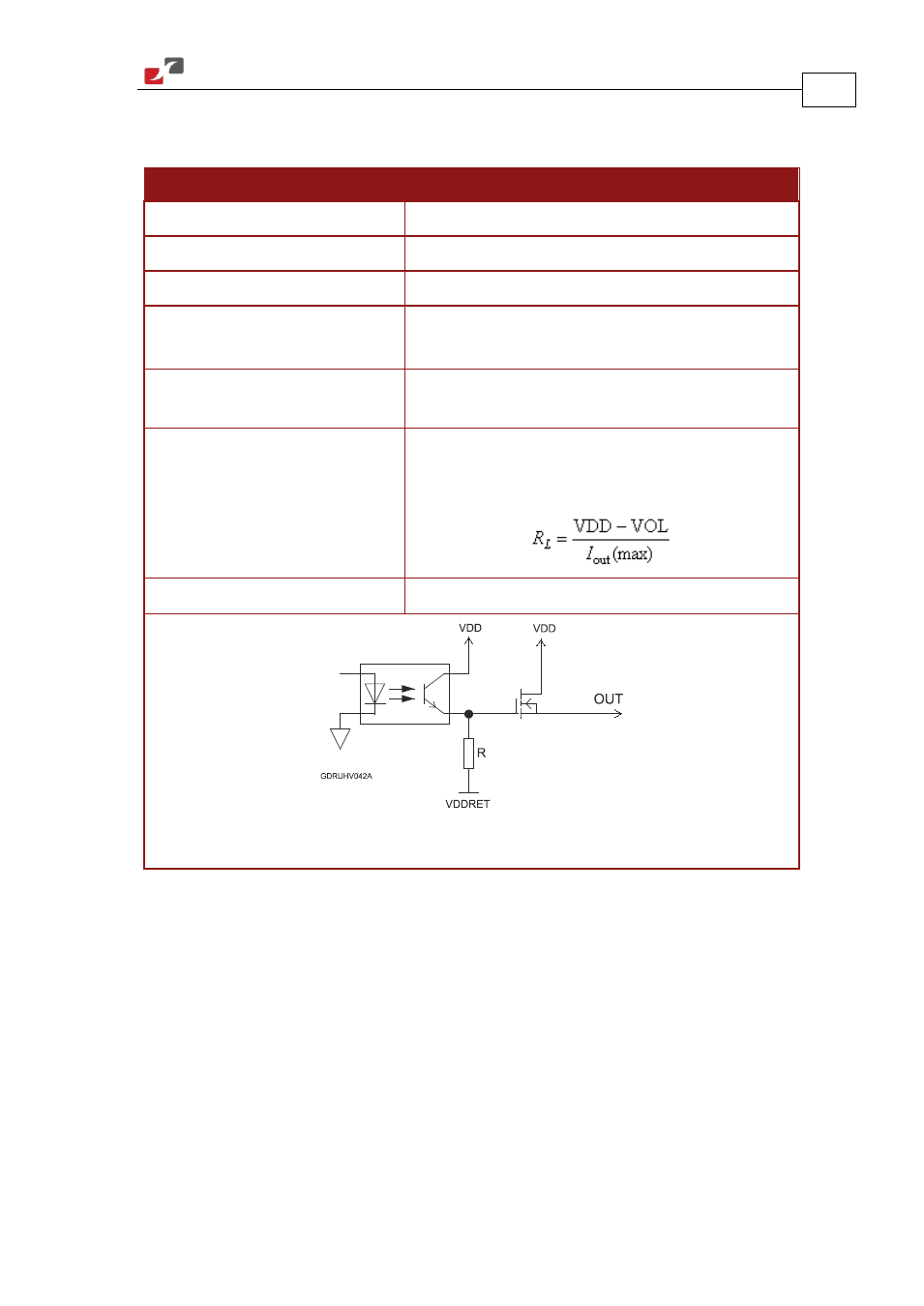

Figure 43: Digital Output Schematic – for S or 0 Suffixes
