Preset 10 Architectural Two - OPERATION

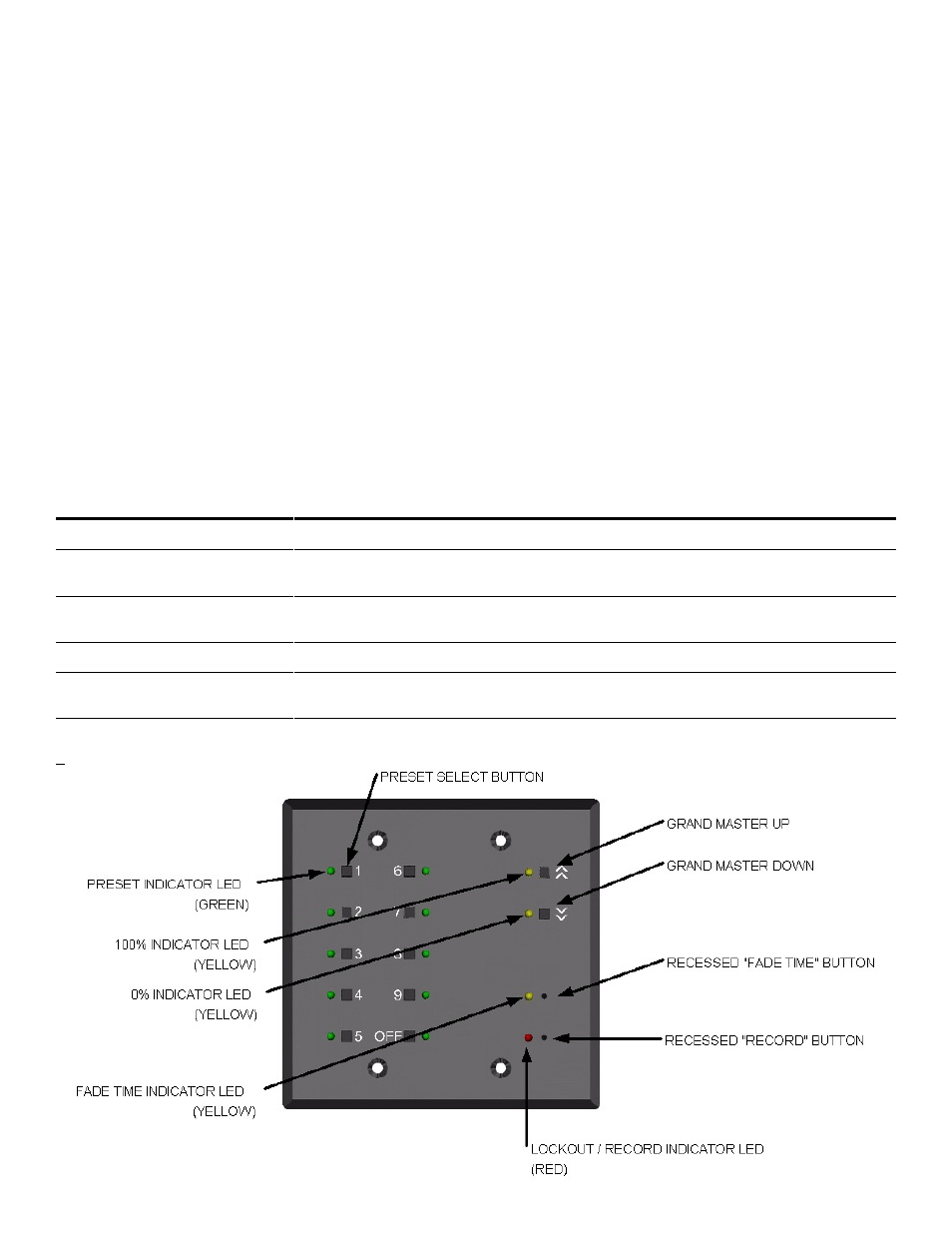

INDICATORS
GREEN LED
ON = CURRENTLY SELECTED PRESET
FLASHING = TIME SETTING MODE SELECTED FOR THIS PRESET
YELLOW TIM E LED
ON = PRESET FADE IS IN PRO GRESS
FLASHING = TIME SETTING MODE SELECTED
YELLOW GRAND M ASTER 100% LED
ON=GRAND MASTER AT 100%
OFF=GRAND MASTER LESS THAN 100%
YELLOW GRAND M ASTER 0% LED
ON=GRAND MASTER AT 0%
OFF=GRAND MASTER GREATER THAN 0%
RED LED
ON = STATION LOCKED OUT / RECEIVING DMX512 FROM EXTERNAL CONSO LE
FLASHING = RECORD MODE ACTIVE
GREEN LED
YELLOW
TIME LED
RED LED
STATE
OFF
OFF
OFF
UNIT NOT POWERED
OFF
OFF
ON
RECEIVING DMX512
PRESET 10 IS LOCKED OUT FROM TRANSMITTING
OFF
OFF
FLASHING
RECORD MODE ACTIVE
CURRENT LOOK WILL BE STORED TO THE NEXT PRESSED PRESET
FLASHING
FLASHING
OFF
TIME SETTING MODE ACTIVE FOR SELECTED PRESET
ON
OFF
OFF
PRESET 10 TRANSMITTING DMX512
NO DMX512 INPUT
ON
ON
OFF
PRESET 10 TRANSMITTING DMX512
CURRENTLY FADING FROM PREVIOUS PRESET
