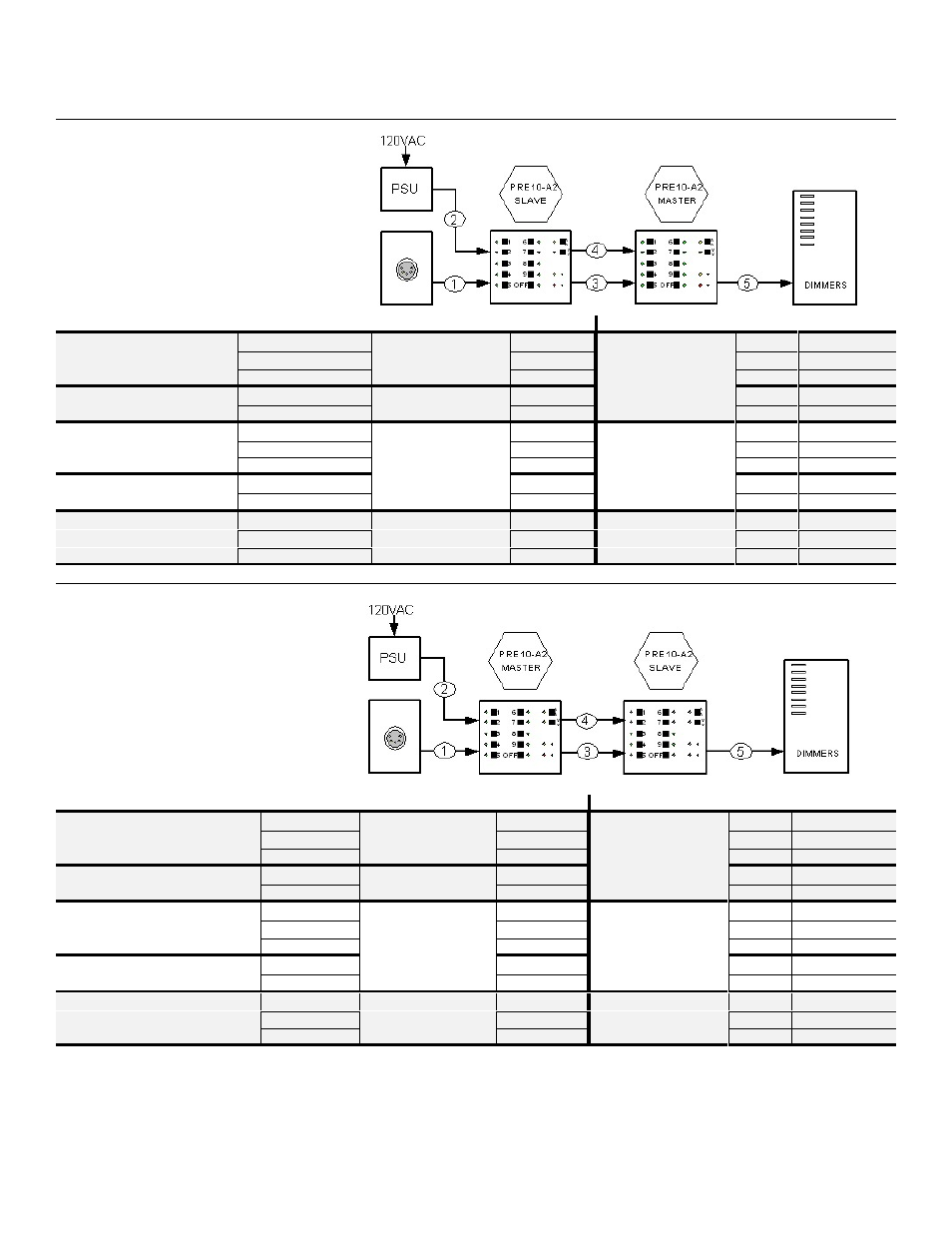

Preset 10 Architectural Two - INSTALLATION (continued)
UP STREAM SLAVE
Note:
Master - Rem ove JP4
Slave - Rem ove JP2 & JP4
CABLE COLOR FROM TO USE
1
120 Ohm Data Cable
Belden 9829 or
Equivalent Shield
5 Pin XLR Plate
Pin 1
PRE10-A2 Slave
TB1-1 Common
White/Blue Stripe Pin 2 TB1-2 Data -
Blue/White Stripe Pin 3 TB1-3 Data +
2
(2) #16 AWG
Stranded Wires Black
Power Supply
Common TB1-4 Supply
Red Power TB1-5 Supply “hot”
3
120 Ohm Data Cable
Belden 9829 or
Equivalent Shield
PRE10-A2 Slave
TB1-1
PRE10-A2 Master
TB2-1 Common
White/Blue Stripe TB1-2 TB2-2 Data -
Blue/White Stripe TB1-3 TB2-3 Data +
4
(2) #16 AWG
Stranded Wires Black TB1-4 TB1-4 Supply
Red TB1-5 TB1-5 Supply “hot”
5
120 Ohm Data Cable
Belden 9829 or
Equivalent Shield
PRE10-A2 Master
TB1-1
Dimmer Cabinet
? Common
White/Blue TB1-2 ? Data -
Blue/White Stripe TB1-3 ? Data +
DOW N STREAM SLAVE
Note:
Master - Rem ove JP4
Slave - Rem ove JP2 & JP4
CABLE COLOR FROM TO USE
1
120 Ohm Data Cable
Belden 9829 or
Equivalent Shield
5 Pin XLR Plate
Pin 1
PRE10-A2 Master
TB2-1 Common
White/Blue Pin 2 TB2-2 Data -
Blue/White Pin 3 TB2-3 Data +
2
(2) #16 AWG
Stranded Wires Black
Power Supply
Common TB1-4 Supply
Red Power TB1-5 Supply “hot”
3
120 Ohm Data Cable
Belden 9829 or
Equivalent Shield
PRE10-A2 Master
TB1-1
PRE10-A2 Slave
TB1-1 Common
White/Blue TB1-2 TB1-2 Data -
Blue/White TB1-3 TB1-3 Data +
4
(2) #16 AWG
Stranded Wires Black TB1-4 TB1-4 Supply
Red TB1-5 TB1-5 Supply “hot”
5
120 Ohm Data Cable
Belden 9829 or
Equivalent Shield
PRE10-A2 Slave
TB1-1
Dimmer Cabinet
? Common
White/Blue TB1-2 ? Data -
Blue/White TB1-3 ? Data +
