SPECIFICATIONS
Connector: Phoenix Contact MSTB series 3 position two part term inal block
Model: MSTB MSTB 2,5/3-ST-5,08 Order Num ber: 17 57 02 2
Phoenix Contact MSTB series 5 position two part term inal block
Model: MSTB 2,5/5-ST-5,08 Order Num ber: 17 57 04 8
Connector pin out: 1 (C) DMX512 com m on
2 ( - ) DMX512 data - (input)
3 (+) DMX512 data + (input)
1 (C) DMX512 com m on
2 ( - ) DMX512 data - (output)
3 (+) DMX512 data + (output)
4 (C) Supply com m on (internally tied to pin1)
5 (V) Supply voltage “hot”
Input/Output Circuit: ESD protected EIA-485 transceiver (LT1785)
Indicators: Ten green preset indicator LEDs
One yellow “Grand Master 100% ” indicator LED
One yellow “Grand Master 0% ” indicator LED
One yellow Fade Tim e LED
One red Signal / Record LED
User controls: Ten preset push buttons
One “Grand Master Up” push button
One “Grand Master Down” push button
One recessed record push button
One recessed fade tim e push button
Option Jum pers: For a single station installation all jum pers should be installed.
IN S T ALLE D R E M O V E D
J P1 R ecording Enabled R ecording Disabled
J P2 M aster Station Slave Station
J P3 Fade to last active preset H old Last Look
J P4 Single Station M ode Station M ode M ulti Station M ode
J P5 Switch Over M ode H ighest Takes Precedence (H TP) M ode
J P6 R adio Button M ode Push On Push Off M ode
Power input: 9-15 volts AC or DC, 200m A per station
(A 10 volt class 2 “doorbell” transform er is recom m ended for fixed installations)
Color: Black anodized with laser engraved nom enclature

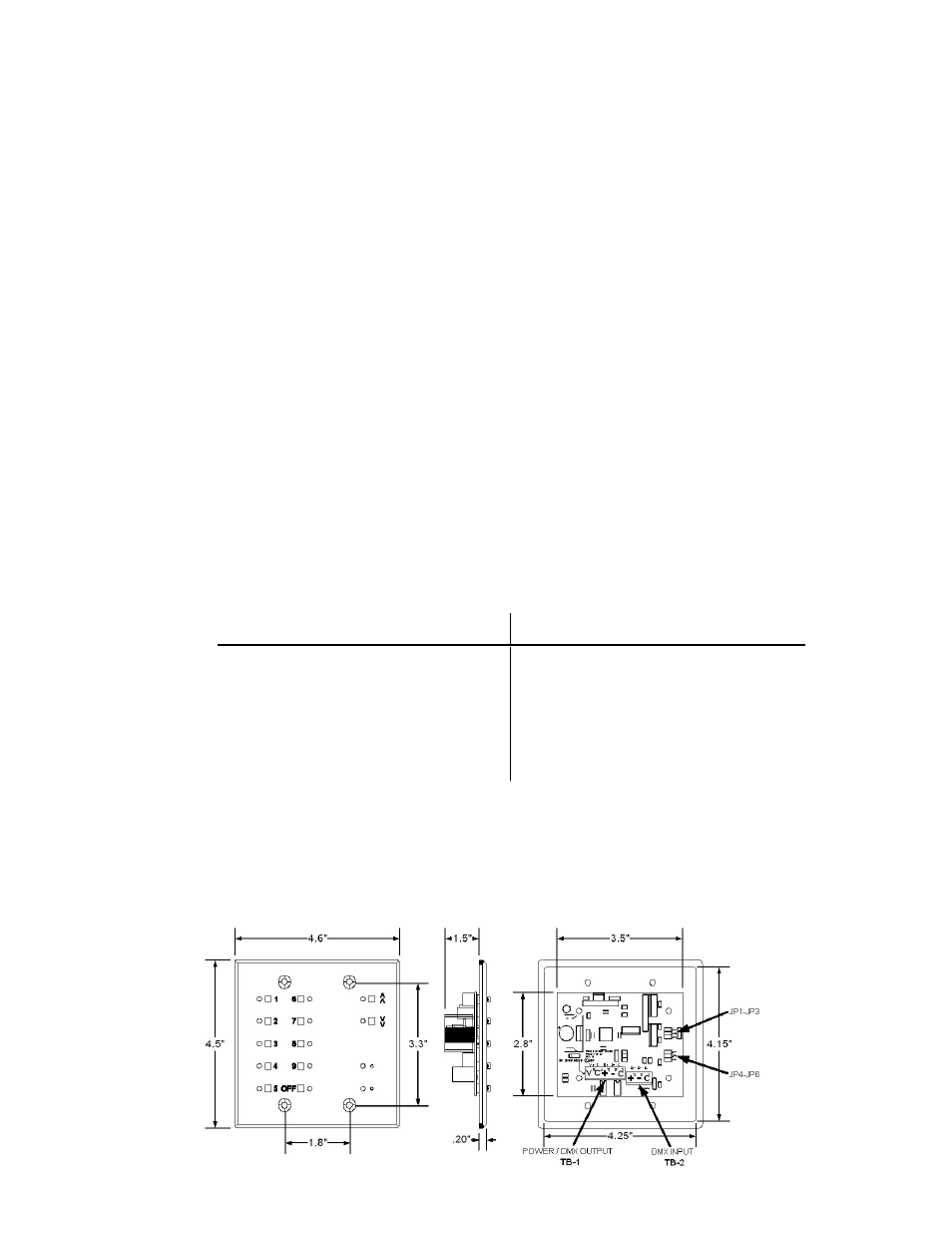

Size : Faceplate: 4.5"h X 4.6"w X 0.2"d
Faceplate rear inset: 4.15"h X 4.25"w X 0.1"d
Electrical box m inim um inside dim ensions: 3.6"h X 2.9"w X 1.26"d
