Carriage w/Forks
Use Carriage Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-4.

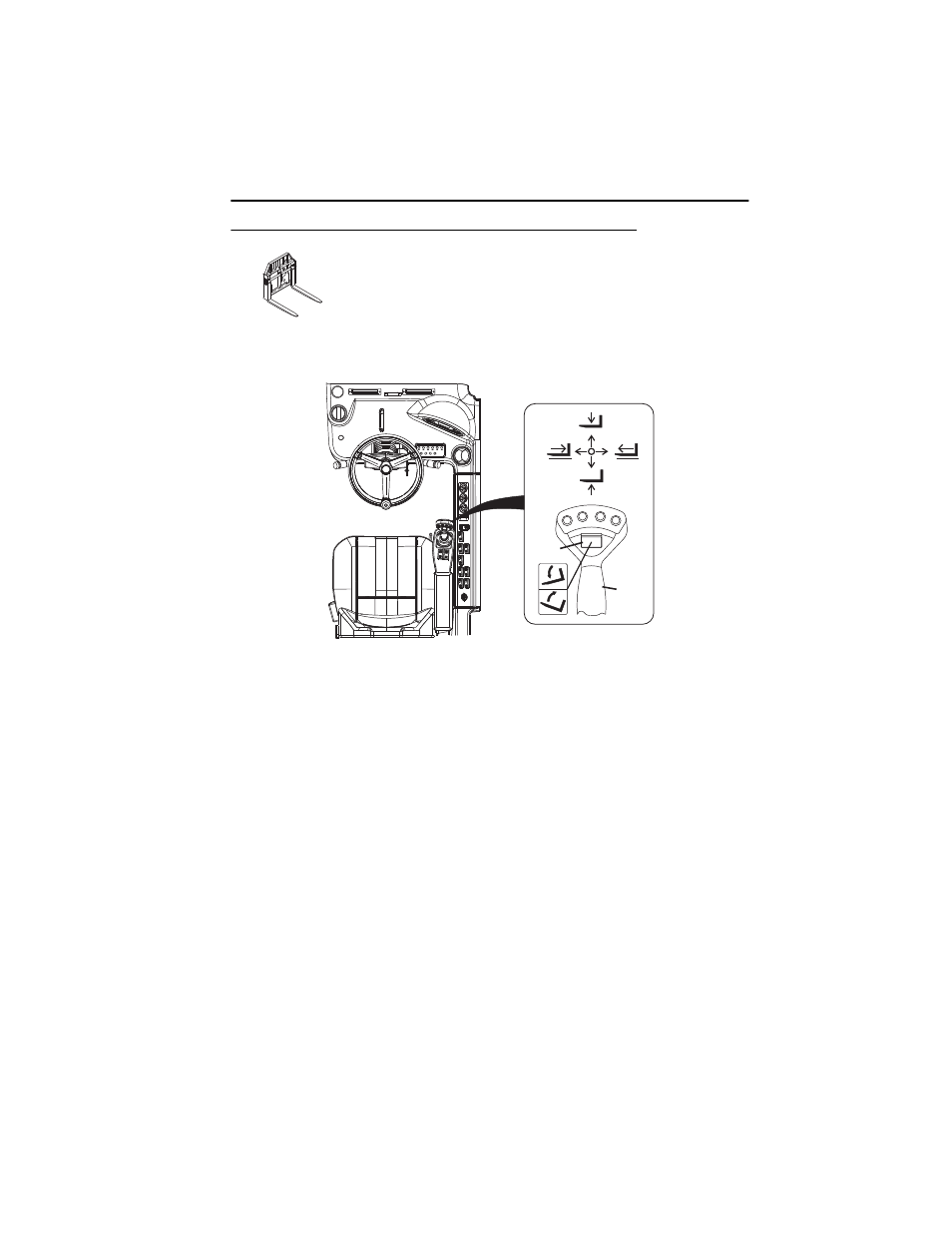

The joystick (1) controls movement of the boom.
The attachment tilt roller switch (2) controls carriage tilt.
• Push roller switch down to tilt up.
• Push roller switch up to tilt down.
Installation Procedure:
• Refer to “Attachment Installation” on page 5-9.
Equipment Damage Precautions:
• Do not use forks as a lever to pry material. Excessive prying forces could
damage forks or machine structure.
• Do not attempt to lift loads that are attached or connected to another object.
OZ0770
OZ2200
2
1
