Section 3 - Controls and Indicators
3-18 31200537
Joystick
Lift Joystick Pattern

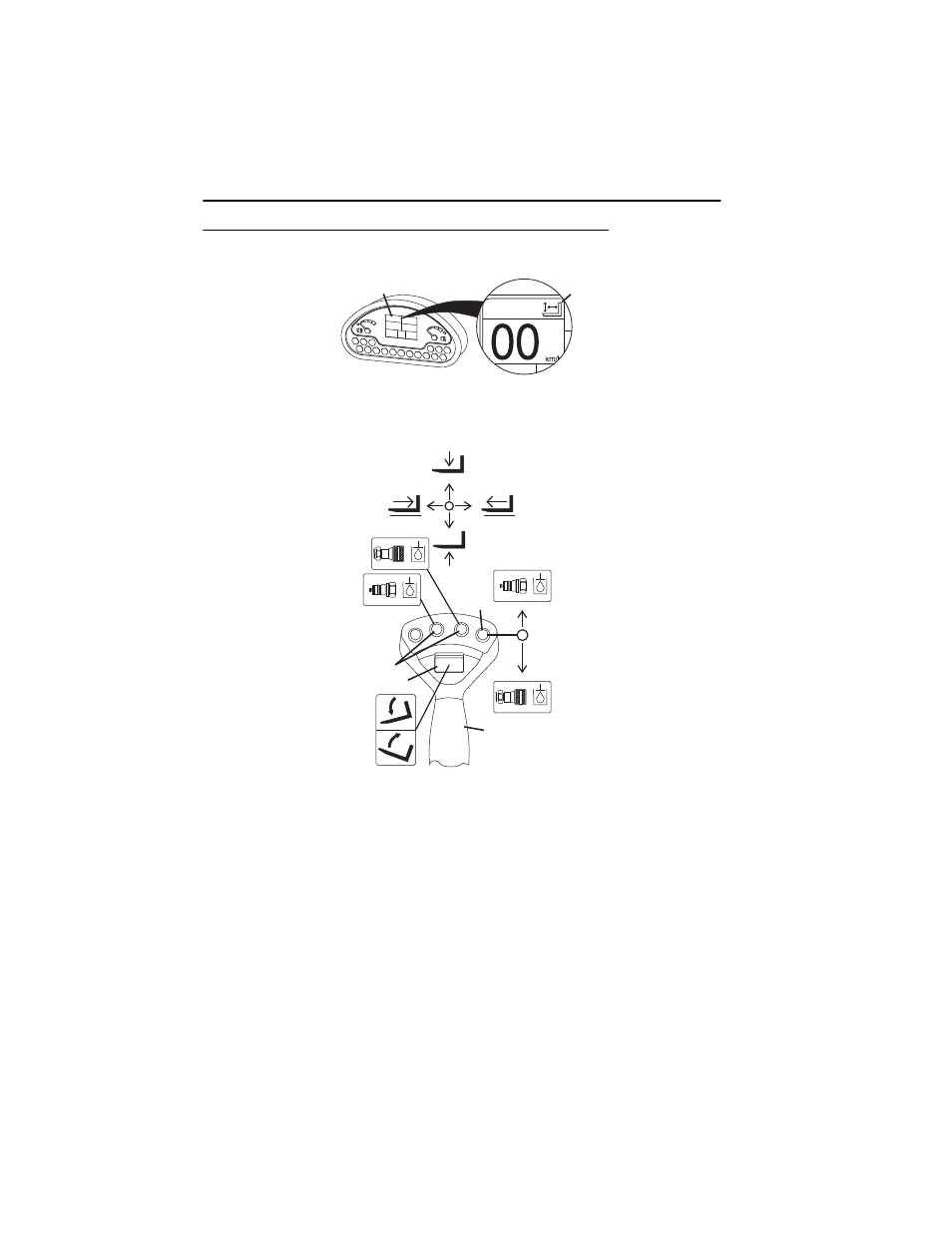

Verify the lift joystick pattern icon (2) is active on the display (1) and the joystick
decal located inside the cab matches the machine controls.
The joystick (1) controls the boom, attachment, auxiliary hydraulics and outrigger
functions.
Boom Functions
• Move the joystick back to lift boom; move joystick forward to lower boom; move
joystick right to extend boom; move joystick left to retract boom.
• The speed of boom functions depends upon the amount of joystick travel in
corresponding direction. Increasing engine speed will also increase function
speed.
• For two simultaneous boom functions, move the joystick between quadrants. For
example; moving the joystick forward and to the left will lower and retract boom
simultaneously.
OAH1351
1
2
OZ3270
2
1
3
4
