Section 5 - Attachments and Hitches
5-11
31200537
Manual Hydraulic Quick Attach
This installation procedure is designed for one-person operation. Prior to exiting cab,
perform “Shut-Down Procedure” on page 4-3.

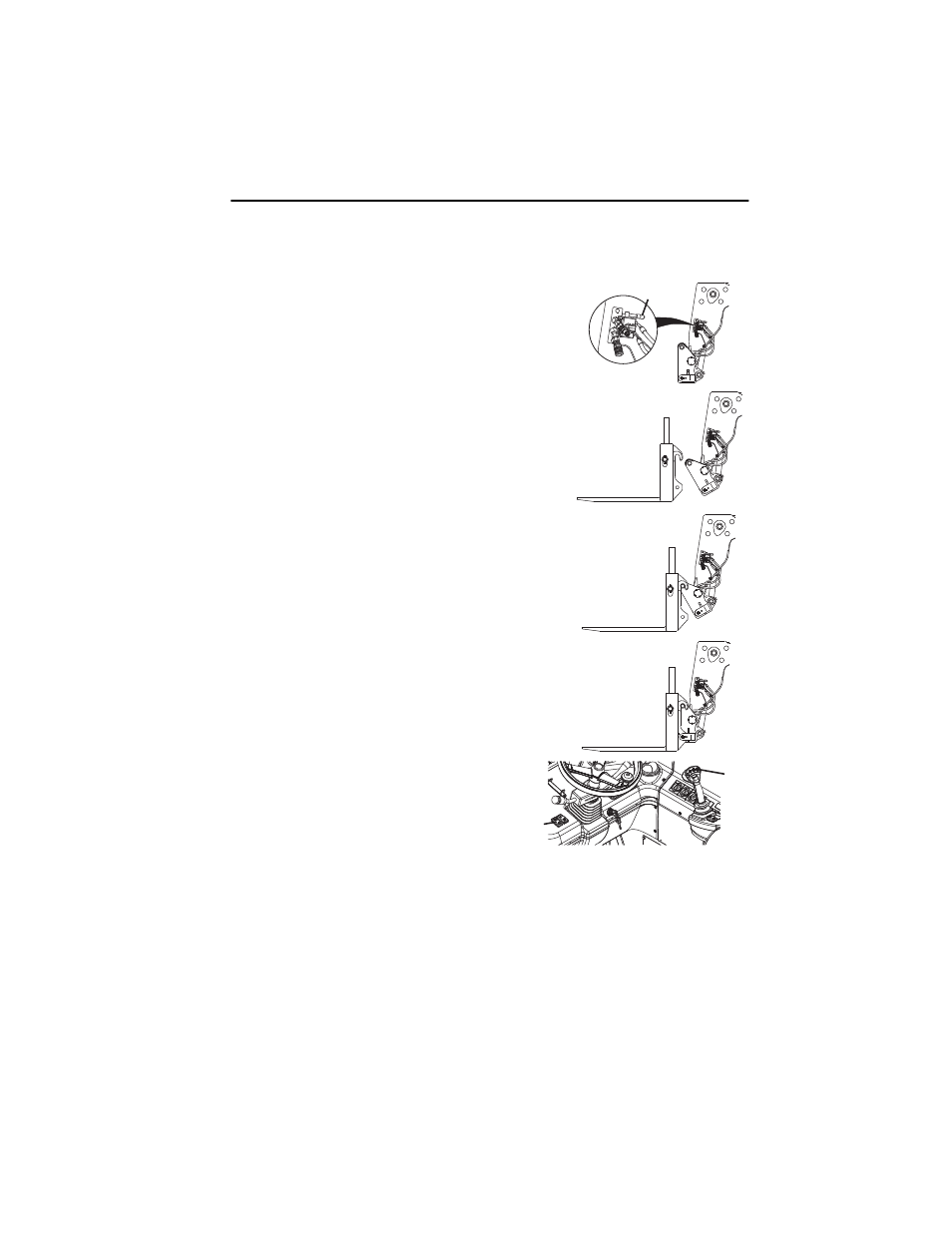

1. Turn auxiliary hydraulic valve handle (1) back,
toward the operator cab, to enable hydraulic
quick attach function.
2. Tilt quick attach forward to provide clearance.
Check to be sure lock pin is disengaged.
3. Align attachment pin with recess in attachment.
Raise boom slightly to engage attachment pin in
recess.
4. Tilt quick attach back to engage attachment.
5. Press and hold switch (2) and button
(3), at the same time move joystick
forward to engage lock pin or move
joystick back to disengage lock pin.
OZ3520
1
OZ3530
OZ3540
OZ3550
OZ3570
3
2
