Section 3 - Controls and Indicators
3-20 31200537

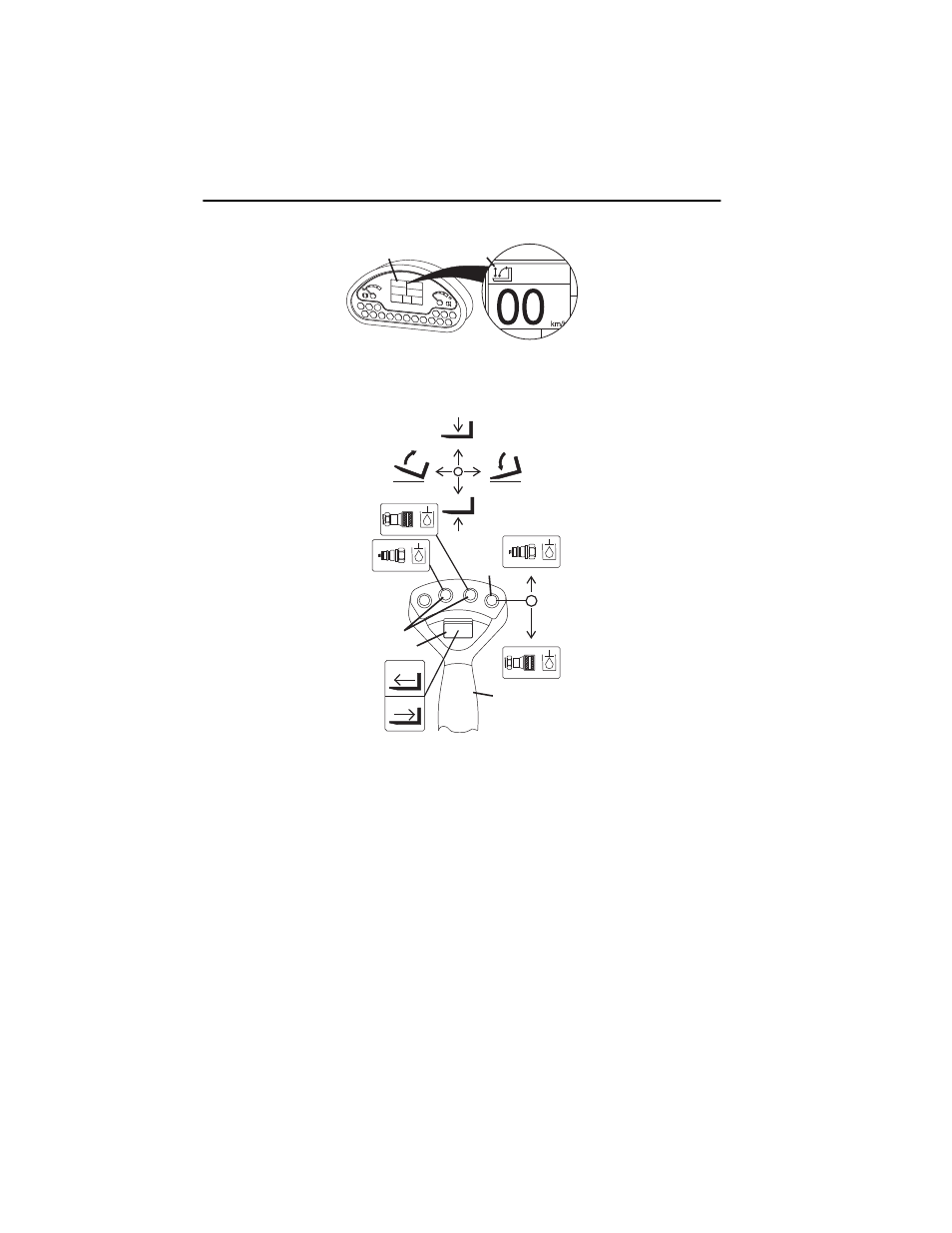

Loader Joystick Pattern
Verify the loader joystick pattern icon (3) is active on the display (1) and the joystick
decal located inside the cab matches the machine controls.
The joystick (1) controls the boom, attachment, auxiliary hydraulics and outrigger
functions.
Boom Functions
• Move the joystick back to lift boom; move joystick forward to lower boom.
• Extend/retract is controlled by the roller switch (2). Push roller switch up to
extend boom; push roller switch down to retract boom.
• The speed of boom functions depends upon the amount of joystick travel in
corresponding direction. Increasing engine speed will also increase function
speed.
• For two simultaneous boom functions, move the joystick between quadrants. For
example; moving the joystick forward and to the left will lower boom and tilt
attachment up simultaneously.
OAH1381
1 3
OZ3280
2
1
3
4
