Hydraulic Hitch
Maximum combined weight of trailer and load ......................... 12 000 kg (26 450 lb)
Maximum vertical weight at hitch interface..................................... 2000 kg (4400 lb)
Connecting trailer for towing:
1. Depress back of auxiliary hydraulic switch (1) to enable rear auxiliary
hydraulics. Move joystick (2) forward to raise hitch safety posts (3) off safety
hooks (4).
2. Pull safety hook release (5).
3. Move joystick back to lower the hitch (6) to the required height.
4. Reverse machine until the hitch is under the center of the tow eye.
5. Move joystick forward to raise hitch until the safety hooks are engaged.
6. Move joystick back to lower hitch safety posts onto safety hooks.
7. If equipped, connect trailer harness to trailer plug (7).
8. If equipped, connect trailer brake line to trailer coupling (8).
9. Depress front of auxiliary hydraulic switch (1) to enable front auxiliary
hydraulics.

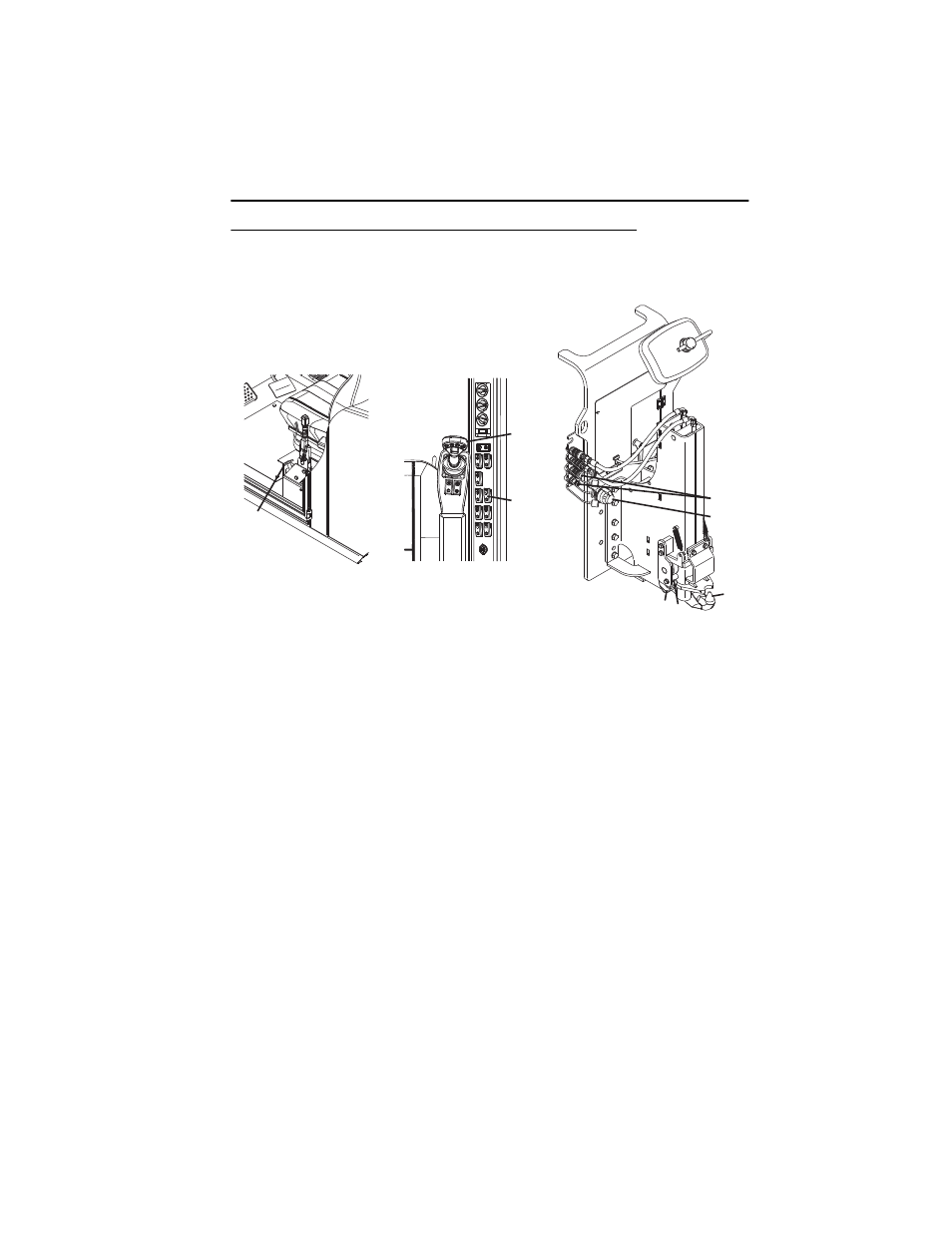

OZ3690
