Det-Tronics X3300EXE Protect-IR Multispectrum IR Flame Detector - Manual (Page 15)

SHIPPING WEIGHT (Approximate)—
Aluminum: 6.0 pounds (2.7 kilograms).
Stainless Steel: 10.0 pounds (4.5 kilograms).
CERTIFICATION—
CENELEC: EEx d e IIC T6
(T
amb
= –40°C to +60°C).
EEx d e IIC T5
(T
amb
= –40°C to +70°C).
IP66.
DNV: Compliance to DNV Certification Notes No. 2.4.
(Stainless steel version must be direct mounted
for DNV Type Approval.)
CE: Conforms to all relevant European norms.
NOTE
Operational performance verified from -40°C to
+70°C.
WARRANTY PERIOD—
5 years, sensor and electronics.
13 95-8502
4.08 (103.6)
3.23 (82.04)
3.23 (82.04)
7.4 (188)
A1982

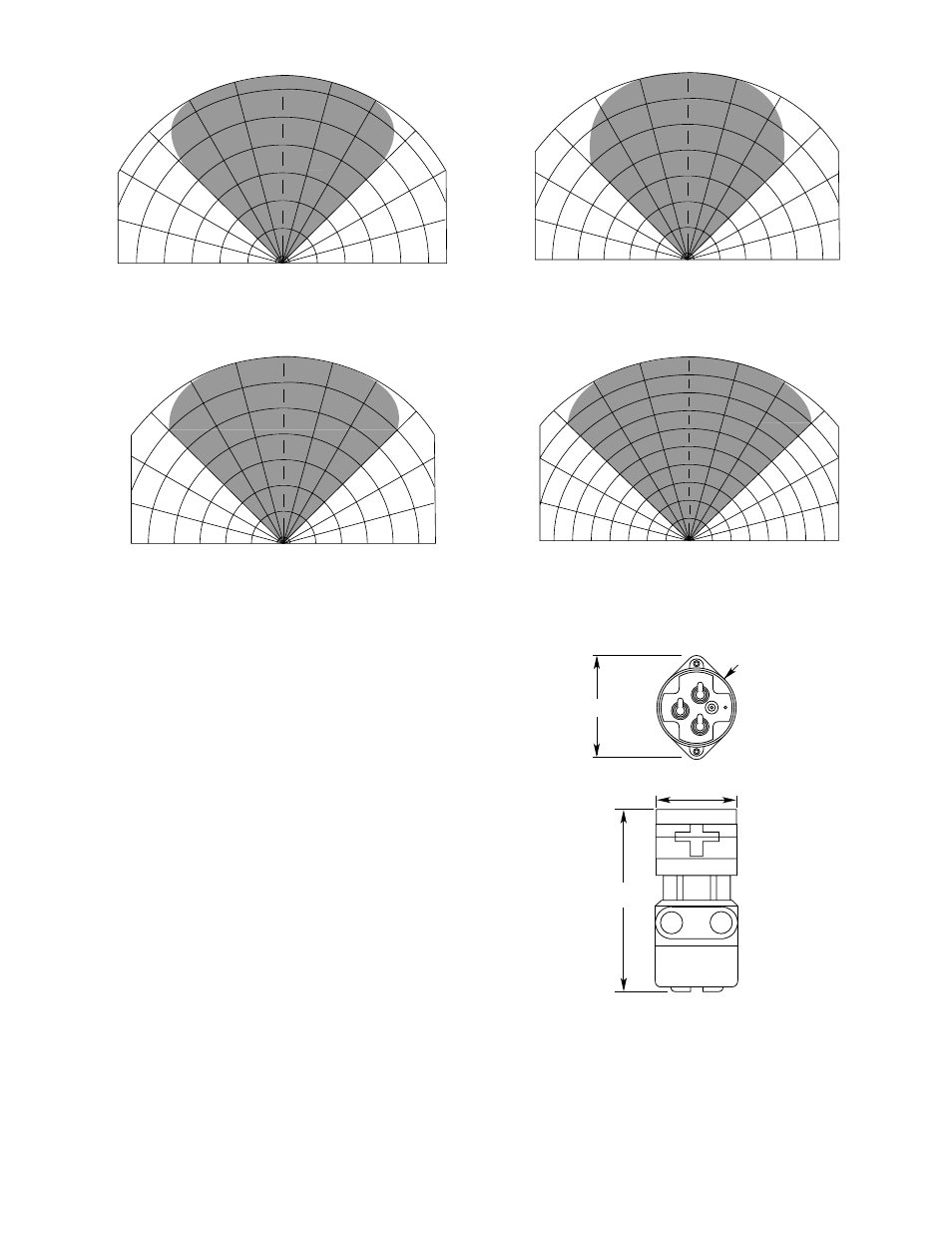

Figure 10—X3300 Dimensions in Inches (mm)
0 °
15
°
15
°
30
°
45 °
30
°
45
°
50 ft
40 ft
30 ft
20 ft
10 ft
70 ft
60 ft
Figure 9J—Field of View at Indicated Distance in Feet for
Diesel at Medium Sensitivity
0
°
15
° 15
°
30
°
45
°
30
°
45
° 50 ft
40 ft
30 ft
20 ft
10 ft
65 ft
60 ft
Figure 9G—Field of View at Indicated Distance in Feet for Methane
at Medium Sensitivity
0
°
15
°
15 °
30
°
45
°
30
°
45 °
50 ft
40 ft
30 ft
20 ft
10 ft
70 ft
60 ft
Figure 9H—Field of View at Indicated Distance in Feet for
Methanol at Medium Sensitivity
0
°
15
°
30
°
45
°
15
°
30
°
45
°
100 ft
90 ft
80 ft
50 ft
40 ft
30 ft
20 ft
10 ft
70 ft
60 ft
Figure 9K—Field of View at Indicated Distance in Feet for
JP-5 at Medium Sensitivity
