95-8552 5.3 8
Figures 11 and 12 provide examples of typical
installations with an X2200 wired to a fire alarm
panel.
Figure 13 shows an EOL resistor installed within the
integral wiring compartment of the detector (refer to
“EOL Resistors” for details).
2. Check all field wiring to be sure that the proper
connections have been made.
Important
Do not test any wiring connected to the detector
with a meg-ohmmeter. Disconnect wiring at
the detector before checking system wiring for
continuity.
3. Make the final sighting adjustments and ensure that
the mounting bracket hardware is tight.

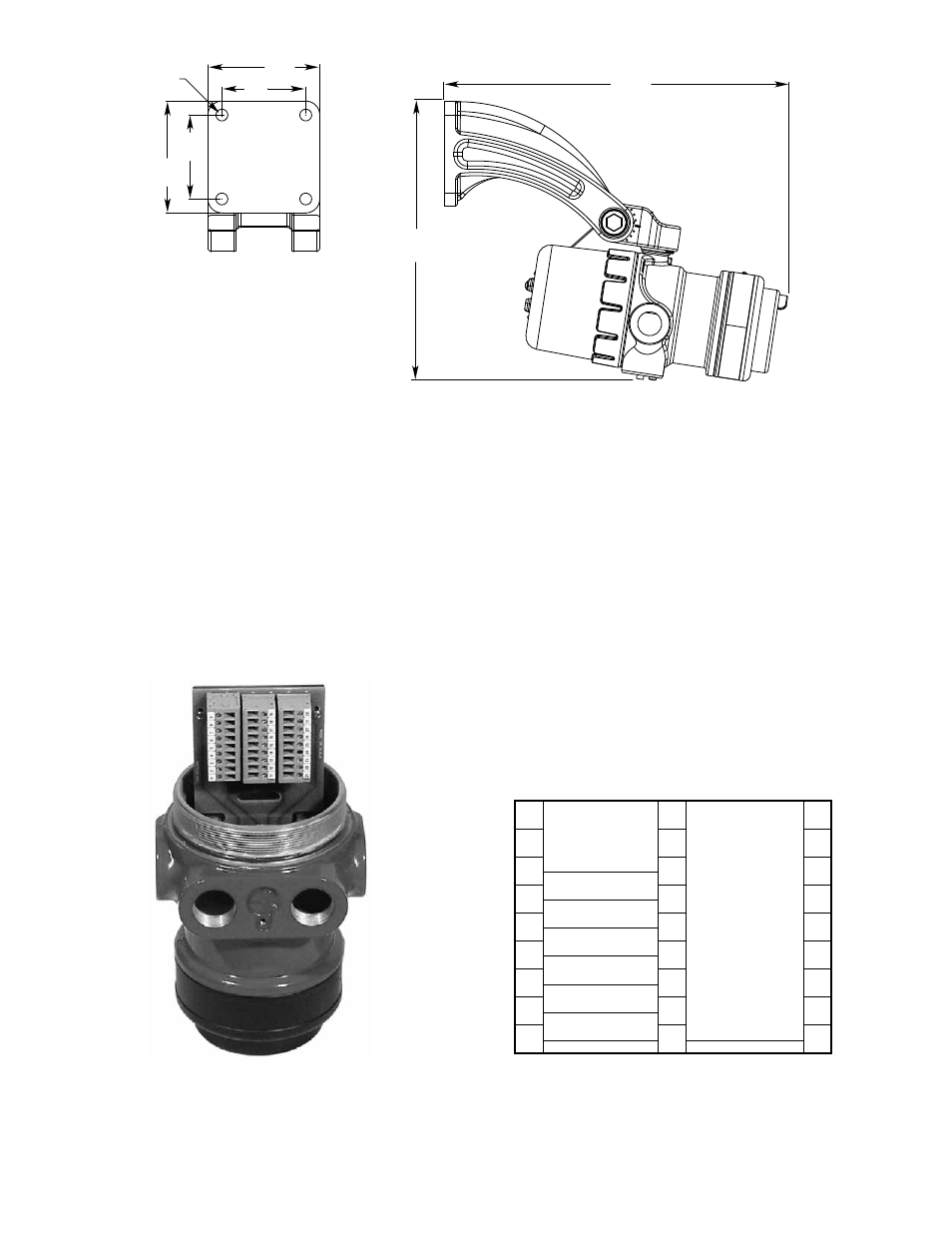

Figure 3—Q9033 Mounting Bracket Dimensions in Inches (cm)
(Refer to Figure 1 for Correct Detector Orientation)
9
8
7
6
5
4
3
2
1
19
18
17
16
15
14
13
12
11
PULSE OUT
COM FIRE
N.O. FIRE
N.C. FIRE
COM FAULT
N.O. FAULT
24 VDC +
24 VDC – 24 VDC –
29
28
27
26
25
24
23
22
21
SPARE
SPARE
RS-485 A
RS-485 B
MAN Oi
A2070
Figure 5—X2200 Wiring Terminal Identification
Figure 4—X2200 Terminal Block
13.1
(33.4)
10.6
(27.0)
4.0
(10.2)
4.0
(10.2)
3.0
(7.6)
3.0
(7.6)
4X ø0.42
(1.1)
E2069
NOTE: THIS ILLUSTRATION SHOWS THE
DETECTOR MOUNTED AT THE 10° MINIMUM.
THESE DIMENSIONS WILL CHANGE BASED
ON THE DETECTOR’S MOUNTING ANGLE.
