31
RF542 Setup Procedure
1. Plug RF542 into network.
2. Plug the RF520 into the mains and into the RF542.
3. Plug in the RF525, the LCD will first display the current IP address of the RF542 which needs to be noted
down for the next step. In the example in Figure 14 below the IP address would be 192.168.25.188. If the RF542 IP
address is 0.0.0.0 this means the network has not issued an IP address yet, remove the RF525 and try again. If you
missed some of the sequence, remove the RF525 and try again.

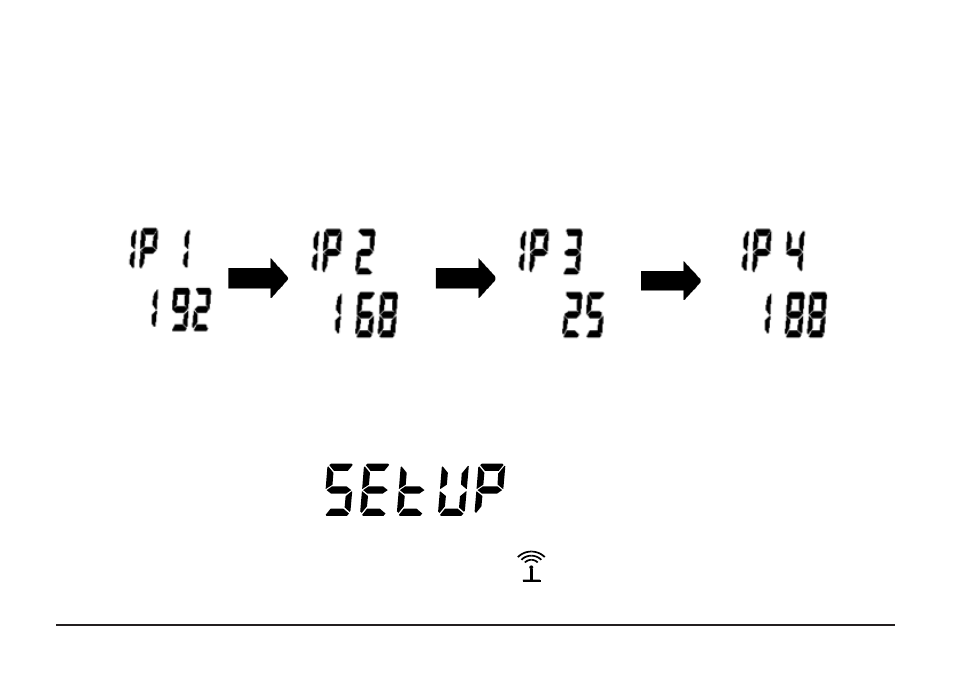

Figure 14 - Display of RF542 IP Address
4. Once the set of four numbers for the IP address has been displayed the LCD will finally show SETUP as shown
below:
Figure 15 - RF542 in Setup Mode
